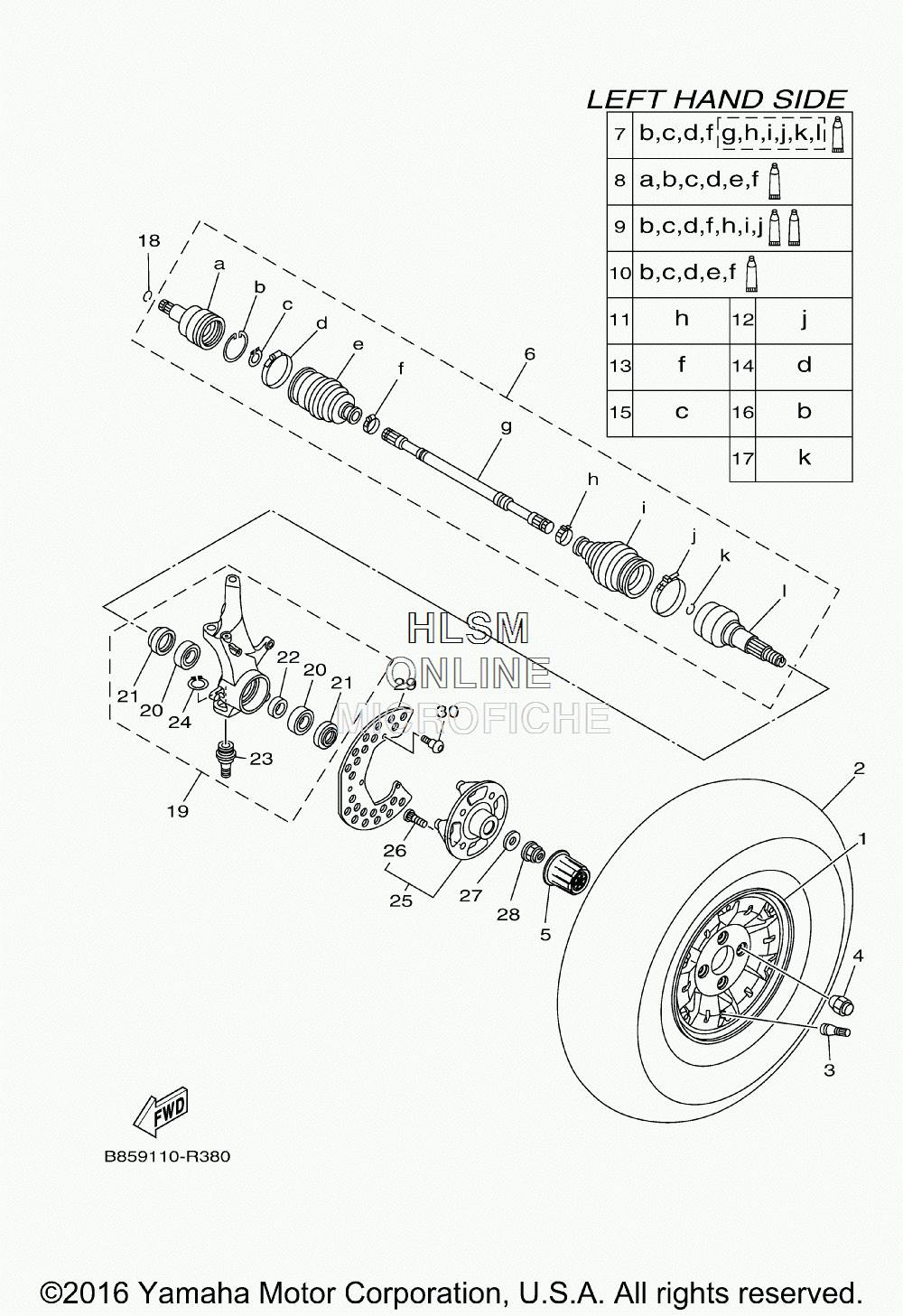

WHEEL - FRONT LEFT SIDE W/ AXLE ASSY для Yamaha VIKING VI EPS RANCH - 2017 года выпуска
-
№АртикулНазвание
-
1B85-F5168-20-00 CAST WHEEL, FRONTCAST WHEEL, FRONT
-
294108-12820-00 TIRE (25X8.00-12 MU09 2PR TL) (MAXXIS)TIRE (25X8.00-12 MU09 2PR TL) (MAXXIS)
-
393900-00813-00 VALVE, RIM (TR413) (MAXXIS)VALVE, RIM (TR413) (MAXXIS)
-
490176-12800-00 NUT, CROWNNUT, CROWN
-
52MB-F512A-00-00 CAP, WHEELCAP, WHEEL
-
61XD-F518F-00-00 DRIVE SHAFT ASSYDRIVE SHAFT ASSY
-
71XD-F530T-10-00 ...BALL JOINT SET...BALL JOINT SET
-
81XD-F530V-10-00 ...DOUBLE OFF SET JOINT...DOUBLE OFF SET JOINT
-
91XD-F530X-10-00 ...BOOT SET (BALL JOINT)...BOOT SET (BALL JOINT)
-
101XD-F530Y-10-00 ...BOOT SET (DOUBLE OFFSET JOINT)...BOOT SET (DOUBLE OFFSET JOINT)
-
111XD-F511H-00-00 ...BOOT BAND (DOUBLE OFFSET JOINT)...BOOT BAND (DOUBLE OFFSET JOINT)
-
121XD-F511G-00-00 ...BOOT BAND (BALL JOINT)...BOOT BAND (BALL JOINT)
-
135UG-F510U-00-00 ...BOOT BAND (SMALL)...BOOT BAND (SMALL)
-
141XD-F512G-10-00 ...BOOT BAND (SMALL)...BOOT BAND (SMALL)
-
153B4-2512J-00-00 ...SNAP RING...SNAP RING
-
163B4-25182-00-00 ...CIRCLIP...CIRCLIP
-
175UG-F512H-00-00 ...CIRCLIP...CIRCLIP
-
1893450-22119-00 CIRCLIPCIRCLIP
-
191XD-F3501-00-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
2093306-20725-00 ...BEARING...BEARING
-
2193106-50002-00 ...OIL SEAL...OIL SEAL
-
2290387-35007-00 ...COLLAR...COLLAR
-
231XD-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
2499009-32400-00 ...CIRCLIP...CIRCLIP
-
252MB-F510D-01-00 HUB ASSY 2HUB ASSY 2
-
2690114-12005-00 ......BOLT, SERRATION......BOLT, SERRATION
-
2790201-25023-00 WASHER, PLATEWASHER, PLATE
-
2890179-24006-00 NUTNUT
-
291XD-F514A-01-00 RING, WHEEL 1RING, WHEEL 1
-
3092012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
