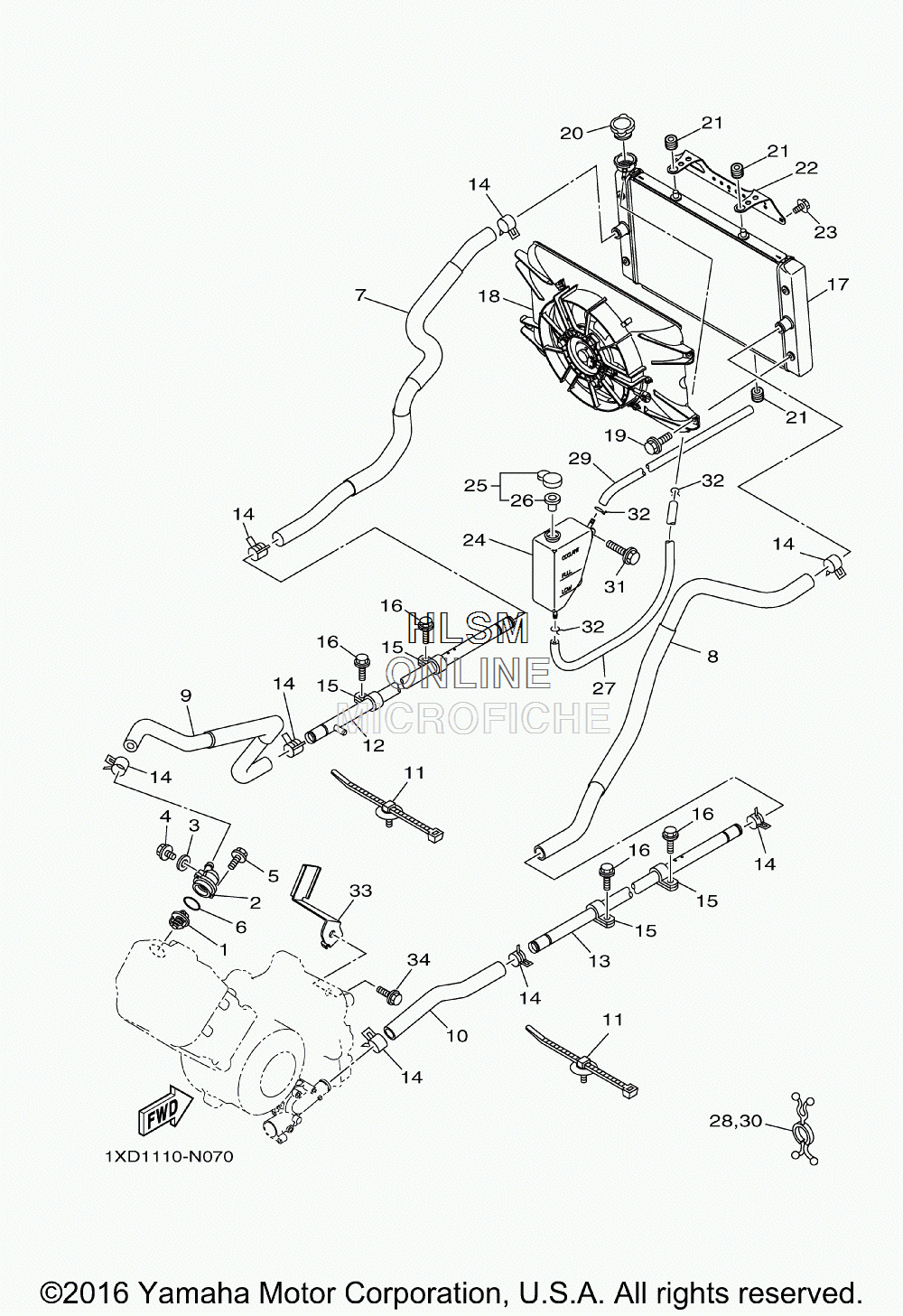

RADIATOR ASSY для Yamaha VIKING - 2017 года выпуска
-
№АртикулНазвание
-
11XD-12411-00-00 THERMOSTATTHERMOSTAT
-
25B4-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
390430-06014-00 GASKETGASKET
-
495022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
595022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
693210-41042-00 O-RINGO-RING
-
71XD-E2576-00-00 HOSE 1HOSE 1
-
81XD-E2577-00-00 HOSE 2HOSE 2
-
91XD-E2578-00-00 HOSE 3HOSE 3
-
101XD-E2579-00-00 HOSE 4HOSE 4
-
111NS-F1338-00-00 CLAMPCLAMP
-
121XD-E2564-00-00 PIPE, WATERPIPE, WATER
-
131XD-E2483-00-00 PIPE 3PIPE 3
-
1490467-26189-00 CLIPCLIP
-
1590461-12800-00 CLAMPCLAMP
-
1690105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
171XD-E2461-00-00 RADIATOR COMPRADIATOR COMP
-
181XD-E2405-00-00 BLOWER ASSYBLOWER ASSY
-
191XD-E2675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
201XD-E2462-00-00 CAP, RADIATORCAP, RADIATOR
-
2190480-15235-00 GROMMETGROMMET
-
221XD-E2518-00-00 BRACKET, WATER COOLERBRACKET, WATER COOLER
-
2390119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
241XD-F1871-00-00 TANK, RECOVERYTANK, RECOVERY
-
251AA-21815-00-00 CAPCAP
-
261AA-21874-00-00 ...GASKET...GASKET
-
2790445-08846-00 HOSE (L920)HOSE (L920)
-
2890464-29179-00 CLAMPCLAMP
-
2990445-08845-00 HOSE (L760)HOSE (L760)
-
3090464-29179-00 CLAMPCLAMP
-
3190119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3290467-08003-00 CLIPCLIP
-
331XD-E2443-00-00 STAYSTAY
-
3495822-10040-00 BOLT, FLANGEBOLT, FLANGE
