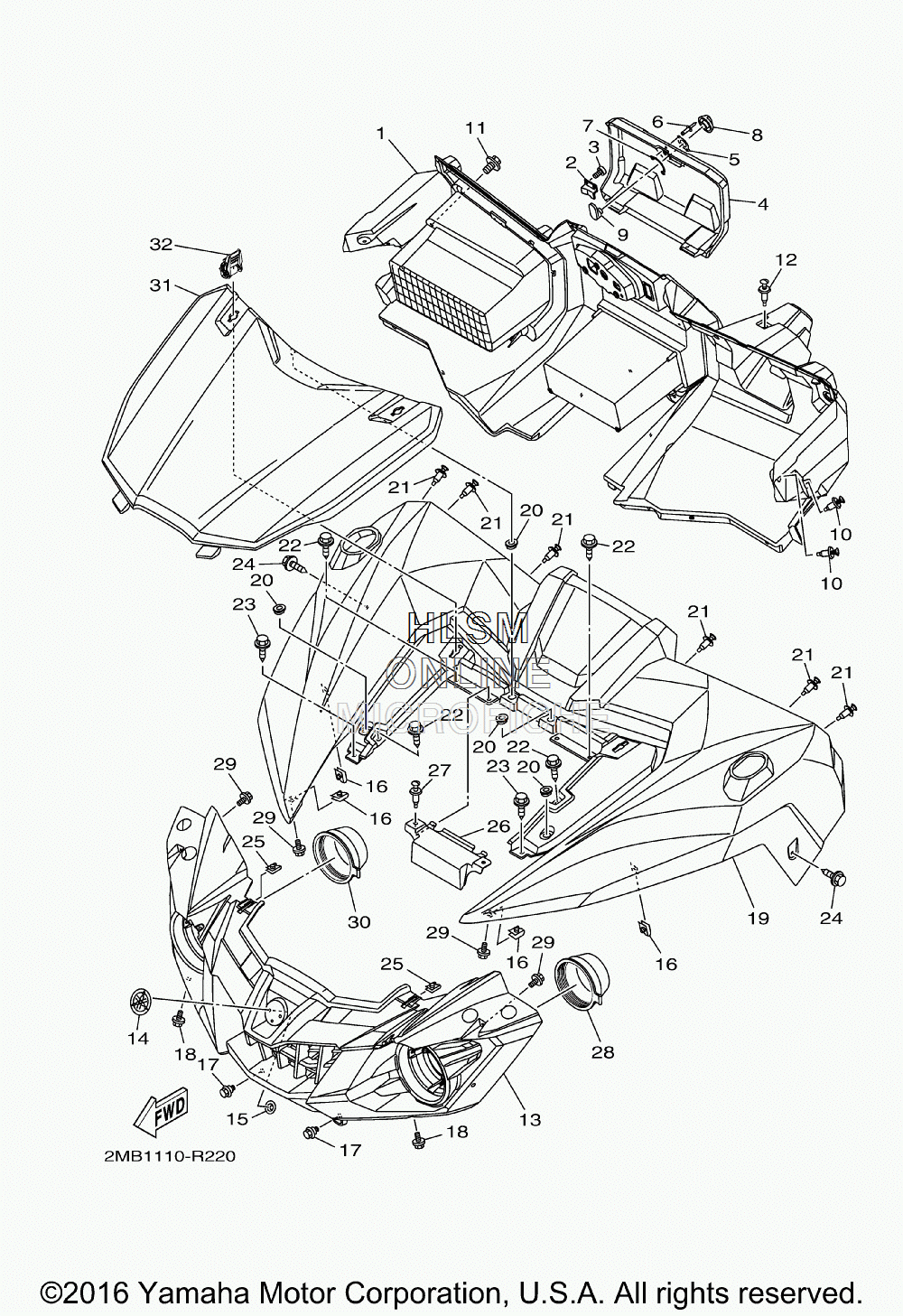

FENDER - FRONT для Yamaha WOLVERINE EPS (DEEP GREEN) - 2017 года выпуска
-
№АртикулНазвание
-
12MB-K7711-01-00 PANEL, INSTRUMENTPANEL, INSTRUMENT
-
21XD-F139T-00-00 BRACKET, COVERBRACKET, COVER
-
390164-04800-00 SCREW, TAPPINGSCREW, TAPPING
-
41XD-F160F-00-00 LIDLID
-
51XD-F1515-00-00 WASHER, SPECIALWASHER, SPECIAL
-
690267-24143-00 RIVET, BLINDRIVET, BLIND
-
71XD-F1516-00-00 WASHER, SPECIAL 2WASHER, SPECIAL 2
-
81XD-2837G-00-00 LOCK 1LOCK 1
-
91XD-2837H-00-00 LOCK 2LOCK 2
-
1090269-07803-00 RIVETRIVET
-
1190119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1290269-07803-00 RIVETRIVET
-
132MB-F8309-00-00 GRILLE, FRONTGRILLE, FRONT
-
141XD-F175B-01-00 TUNING FORK MARKTUNING FORK MARK
-
1590183-06071-00 NUT, SPRINGNUT, SPRING
-
1690183-060A6-00 NUT, SPRINGNUT, SPRING
-
1790109-06202-00 BOLTBOLT
-
1890119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
192MB-F1511-00-00 FENDER, FRONTFENDER, FRONT
-
2090480-01558-00 GROMMETGROMMET
-
2190269-07803-00 RIVETRIVET
-
2290119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2390119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2490119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2590183-060A6-00 NUT, SPRINGNUT, SPRING
-
261XD-F163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
2790269-07803-00 RIVETRIVET
-
283B4-28349-00-00 CAPCAP
-
2990119-06018-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
303B4-28349-00-00 CAPCAP
-
311XD-F1982-00-00 HOOD 1HOOD 1
-
321XD-2175K-10-00 LEVER, LOCKLEVER, LOCK
