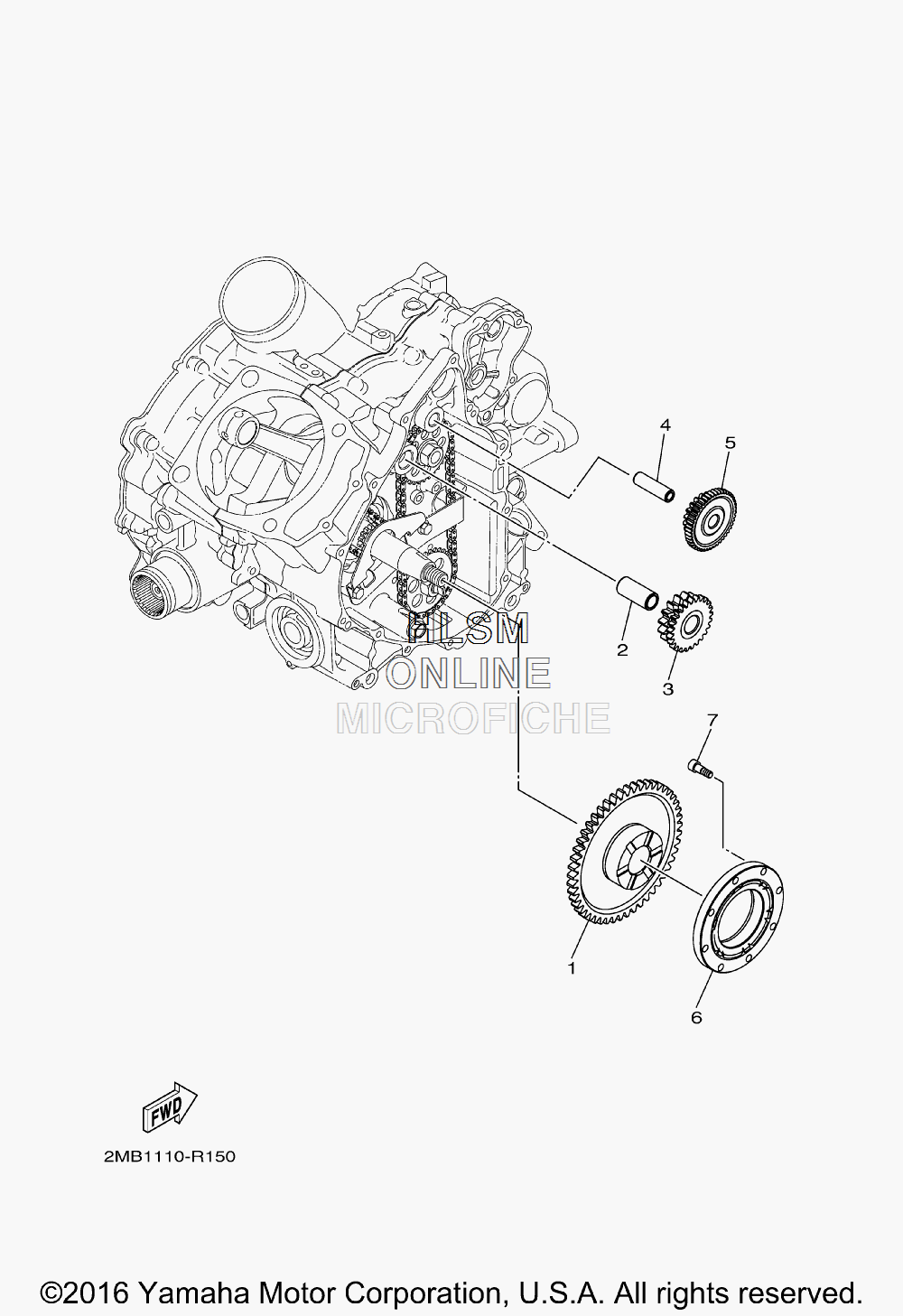

STARTER CLUTCH для Yamaha WOLVERINE R-SPEC EPS (DEEP GREEN) - 2017 года выпуска
-
№АртикулНазвание
-
12MB-E5515-00-00 GEAR 3GEAR 3
-
22MB-E5522-00-00 SHAFT 2SHAFT 2
-
32MB-E5517-01-00 GEAR, IDLER 2GEAR, IDLER 2
-
42MB-E5521-00-00 SHAFT 1SHAFT 1
-
52MB-E5512-00-00 GEAR, IDLER 1GEAR, IDLER 1
-
62MB-E5590-00-00 STARTER ONE-WAY ASSYSTARTER ONE-WAY ASSY
-
72MB-E6777-00-00 BOLTBOLT
