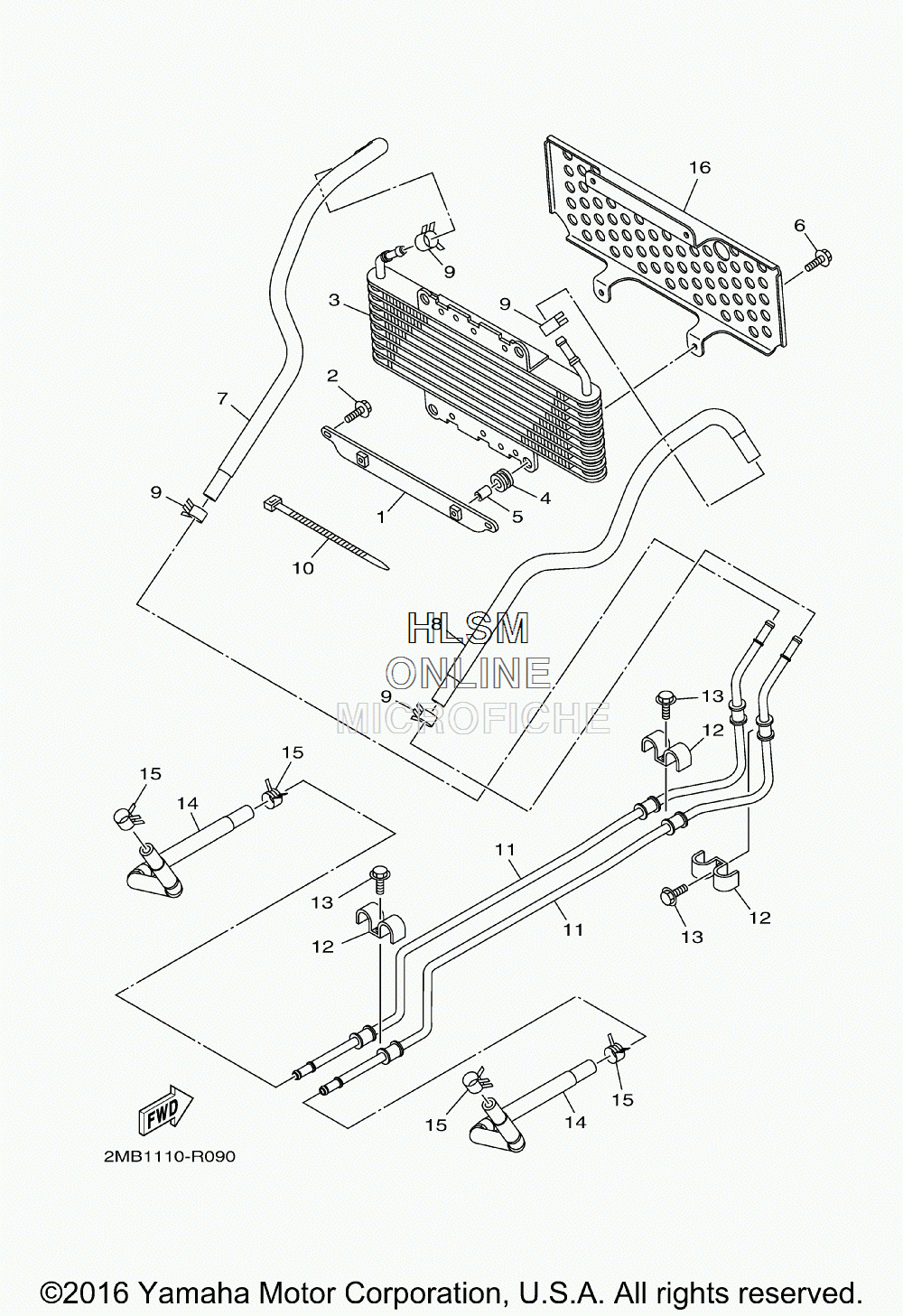

OIL PIPES для Yamaha WOLVERINE R-SPEC EPS HUNTER - 2017 года выпуска
-
№АртикулНазвание
-
12MB-F1498-00-00 BRACKET, OIL COOLERBRACKET, OIL COOLER
-
290119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
31NS-E3480-00-00 ELEMENT, OIL COOLERELEMENT, OIL COOLER
-
490480-15235-00 GROMMETGROMMET
-
590387-06113-00 COLLARCOLLAR
-
695812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
72MB-E243A-01-00 HOSE 1HOSE 1
-
82MB-E2577-01-00 HOSE 2HOSE 2
-
990467-150A0-00 CLIPCLIP
-
1090464-48800-00 CLAMPCLAMP
-
112MB-E3405-01-00 OIL PIPE COMP. 1OIL PIPE COMP. 1
-
1290462-15800-00 CLAMPCLAMP
-
1390105-06832-00 BOLT, FLANGEBOLT, FLANGE
-
142MB-E2551-01-00 HOSE 7HOSE 7
-
1590467-150A0-00 CLIPCLIP
-
162MB-E3691-00-00 BRACKET, AIR COOLERBRACKET, AIR COOLER
