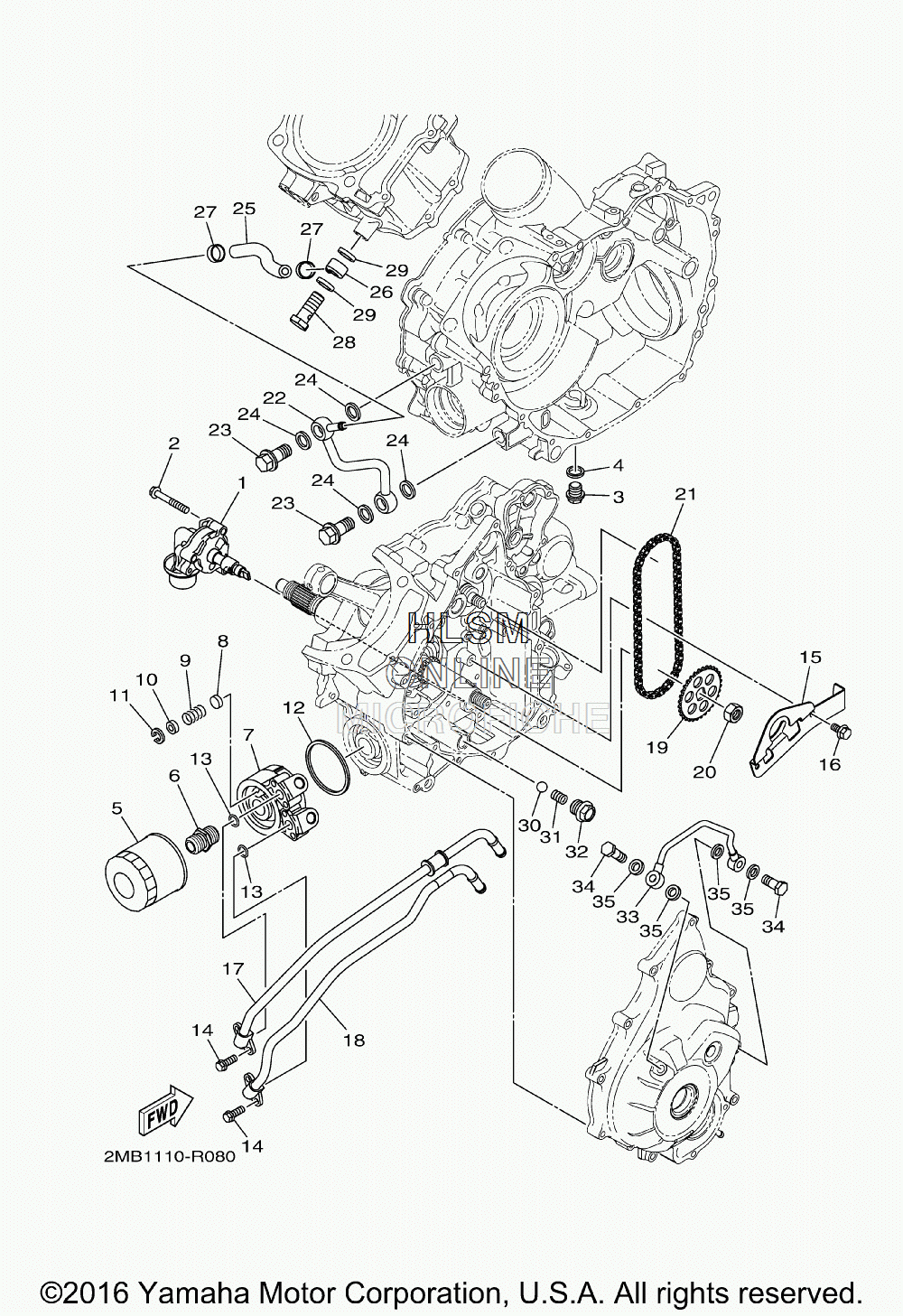

OIL PUMP для Yamaha WOLVERINE - 2017 года выпуска
-
№АртикулНазвание
-
12MB-E3300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
22MB-E5481-30-00 BOLT 1BOLT 1
-
32MB-E8149-00-00 PLUG, BLINDPLUG, BLIND
-
42MB-E1198-00-00 GASKETGASKET
-
52MB-E3440-00-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
62MB-E3573-00-00 BOLT 1BOLT 1
-
72MB-E3461-00-00 PLATE, ADAPTORPLATE, ADAPTOR
-
82MB-E3497-00-00 PLUGPLUG
-
92MB-E3484-00-00 SPRING, RELIEFSPRING, RELIEF
-
102MB-E3177-00-00 WASHERWASHER
-
112MB-E2489-00-00 CLIP 4CLIP 4
-
122MB-E3016-00-00 O-RINGO-RING
-
132MB-E319C-00-00 O-RINGO-RING
-
142MB-E5481-E0-00 BOLT 1BOLT 1
-
152MB-E2221-00-00 GUIDE, STOPPER 3GUIDE, STOPPER 3
-
162MB-E5481-40-00 BOLT 1BOLT 1
-
172MB-E3416-00-00 PIPE, OIL 1PIPE, OIL 1
-
182MB-E3418-00-00 PIPE, OIL 2PIPE, OIL 2
-
192MB-E3355-00-00 SPROCKET, DRIVENSPROCKET, DRIVEN
-
202MB-E1459-00-00 NUT, SPECIALNUT, SPECIAL
-
212MB-E1456-00-00 CHAIN, PRIMARYCHAIN, PRIMARY
-
222MB-E3171-00-00 PIPE, DELIVERY 2PIPE, DELIVERY 2
-
232MB-E3165-00-00 BOLT, BANJOBOLT, BANJO
-
242MB-E8363-00-00 GASKETGASKET
-
252MB-E316F-00-00 HOSE, OIL 1HOSE, OIL 1
-
262MB-E3181-00-00 PIPE, DELIVERY 3PIPE, DELIVERY 3
-
272MB-E5485-00-00 CLAMPCLAMP
-
282MB-E3166-00-00 BOLT, BANJOBOLT, BANJO
-
292MB-E1195-00-00 GASKETGASKET
-
302MB-E8218-00-00 BALLBALL
-
312MB-E3469-00-00 SPRINGSPRING
-
322MB-E3455-00-00 PLUGPLUG
-
332MB-E3161-00-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
-
342MB-E2858-00-00 BOLT, UNIONBOLT, UNION
-
352MB-E3476-00-00 GASKETGASKET
