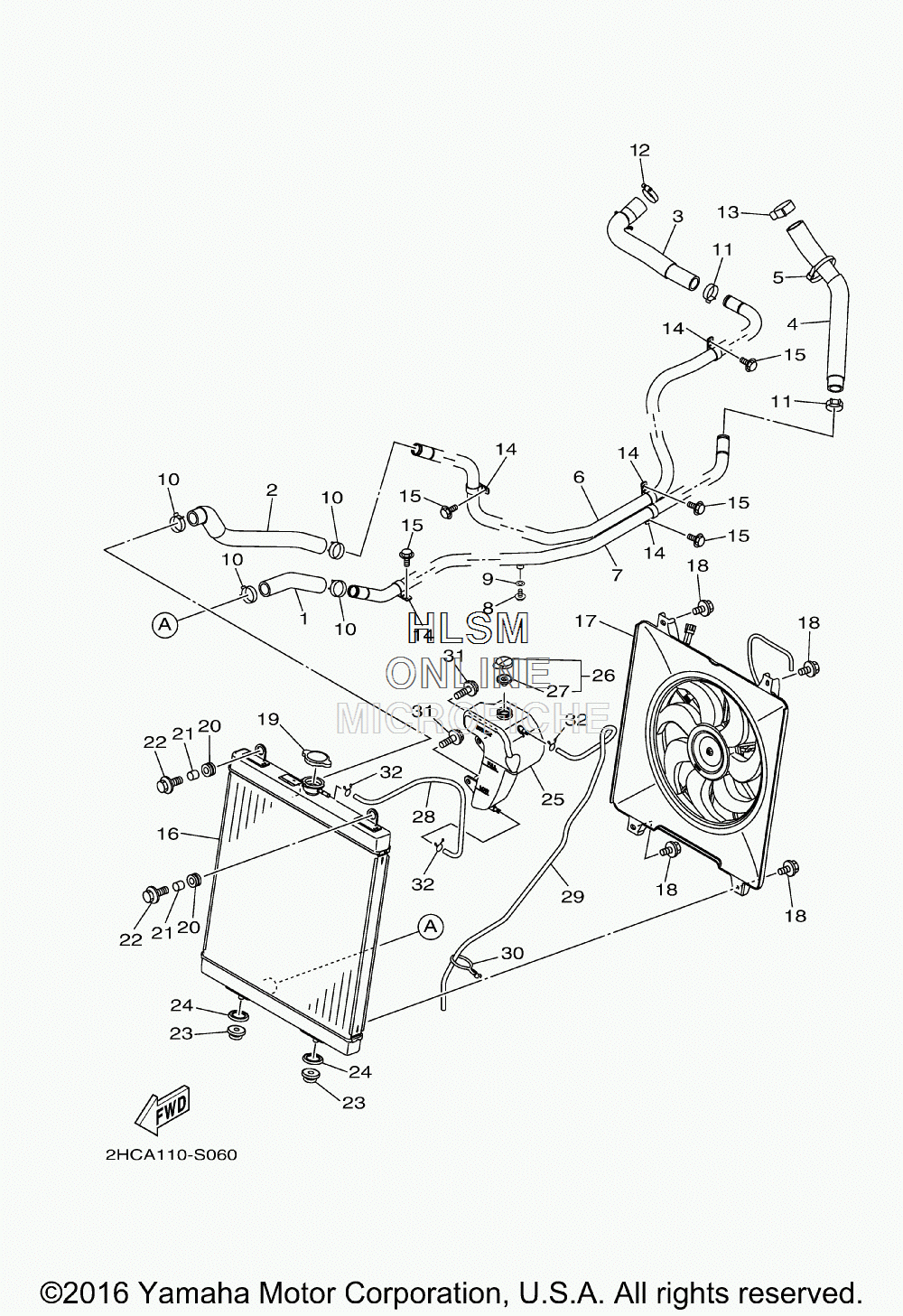

RADIATOR ASSY для Yamaha YXZ1000 EPS SPECIAL EDITION - 2017 года выпуска
-
№АртикулНазвание
-
12HC-E2576-00-00 HOSE 1HOSE 1
-
22HC-E2577-00-00 HOSE 2HOSE 2
-
32HC-E2578-00-00 HOSE 3HOSE 3
-
42HC-E2579-00-00 HOSE 4HOSE 4
-
590464-12045-00 CLAMPCLAMP
-
62HC-E2564-00-00 PIPE, WATERPIPE, WATER
-
72HC-E2483-00-00 PIPE 3PIPE 3
-
895022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
990430-06014-00 GASKETGASKET
-
1090467-26189-00 CLIPCLIP
-
1190450-32015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1290450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1390450-38040-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1490461-12800-00 CLAMPCLAMP
-
1590105-06831-00 BOLT, FLANGEBOLT, FLANGE
-
162HC-E2461-00-00 RADIATOR COMPRADIATOR COMP
-
172HC-E2405-00-00 BLOWER ASSYBLOWER ASSY
-
181XD-E2675-00-00 BOLT, BLOWER HOLDINGBOLT, BLOWER HOLDING
-
191XD-E2462-00-00 CAP, RADIATORCAP, RADIATOR
-
2090480-15235-00 GROMMETGROMMET
-
2190387-06113-00 COLLARCOLLAR
-
22JW1-K6179-01-00 BOLT, SPECIAL 1BOLT, SPECIAL 1
-
2390480-18004-00 GROMMETGROMMET
-
2490209-24011-00 WASHERWASHER
-
252HC-F1871-00-00 TANK, RECOVERYTANK, RECOVERY
-
261AA-21815-00-00 CAPCAP
-
271AA-21874-00-00 ...GASKET...GASKET
-
2890445-083J7-00 HOSE (L485)HOSE (L485)
-
2990445-084J3-00 HOSE (L870)HOSE (L870)
-
3090464-37257-00 CLAMPCLAMP
-
3190119-06868-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3290467-08003-00 CLIPCLIP
