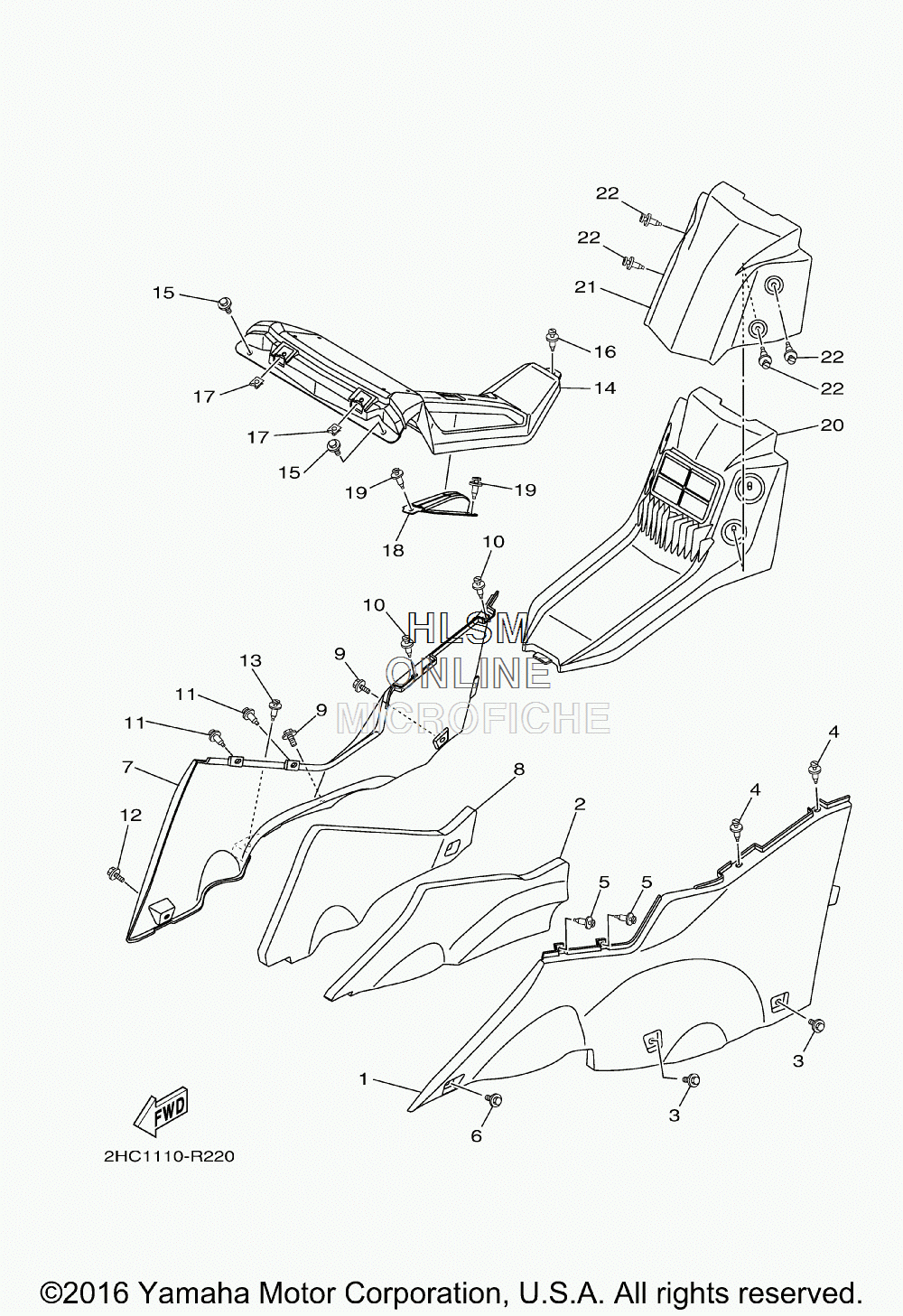

SIDE COVER 2 для Yamaha YXZ1000 EPS - 2017 года выпуска
-
№АртикулНазвание
-
12HC-F837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
22HC-F172S-10-00 INSULATOR 3INSULATOR 3
-
390119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490269-07803-00 RIVETRIVET
-
590269-07803-00 RIVETRIVET
-
690119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
72HC-F837M-00-00 PANEL, CONSOLE 2PANEL, CONSOLE 2
-
82HC-F173S-10-00 INSULATOR 4INSULATOR 4
-
990119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1090269-07803-00 RIVETRIVET
-
1190269-07803-00 RIVETRIVET
-
1290119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1390269-07803-00 RIVETRIVET
-
142HC-F171A-00-00 COVER, TOP (DPBSE - PURPLISH BLUE)COVER, TOP (DPBSE - PURPLISH BLUE)
-
142HC-F171A-30-00 COVER, TOP (VYRS4 - YELLOWISH RED)COVER, TOP (VYRS4 - YELLOWISH RED)
-
1590119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1690269-07803-00 RIVETRIVET
-
1790183-060A6-00 NUT, SPRINGNUT, SPRING
-
182HC-F6372-00-00 COVER, HANDLE LEVER 1COVER, HANDLE LEVER 1
-
1990269-07803-00 RIVETRIVET
-
202HC-F124E-30-00 COVER, BATTERY (VYRS4 - YELLOWISH RED)COVER, BATTERY (VYRS4 - YELLOWISH RED)
-
202HC-F124E-01-00 COVER, BATTERY (DPBSE - PURPLISH BLUE)COVER, BATTERY (DPBSE - PURPLISH BLUE)
-
212HC-F117F-30-00 COVER (VYRS4 - YELLOWISH RED)COVER (VYRS4 - YELLOWISH RED)
-
212HC-F117F-00-00 COVER (DPBSE - PURPLISH BLUE)COVER (DPBSE - PURPLISH BLUE)
-
2290269-07803-00 RIVETRIVET
