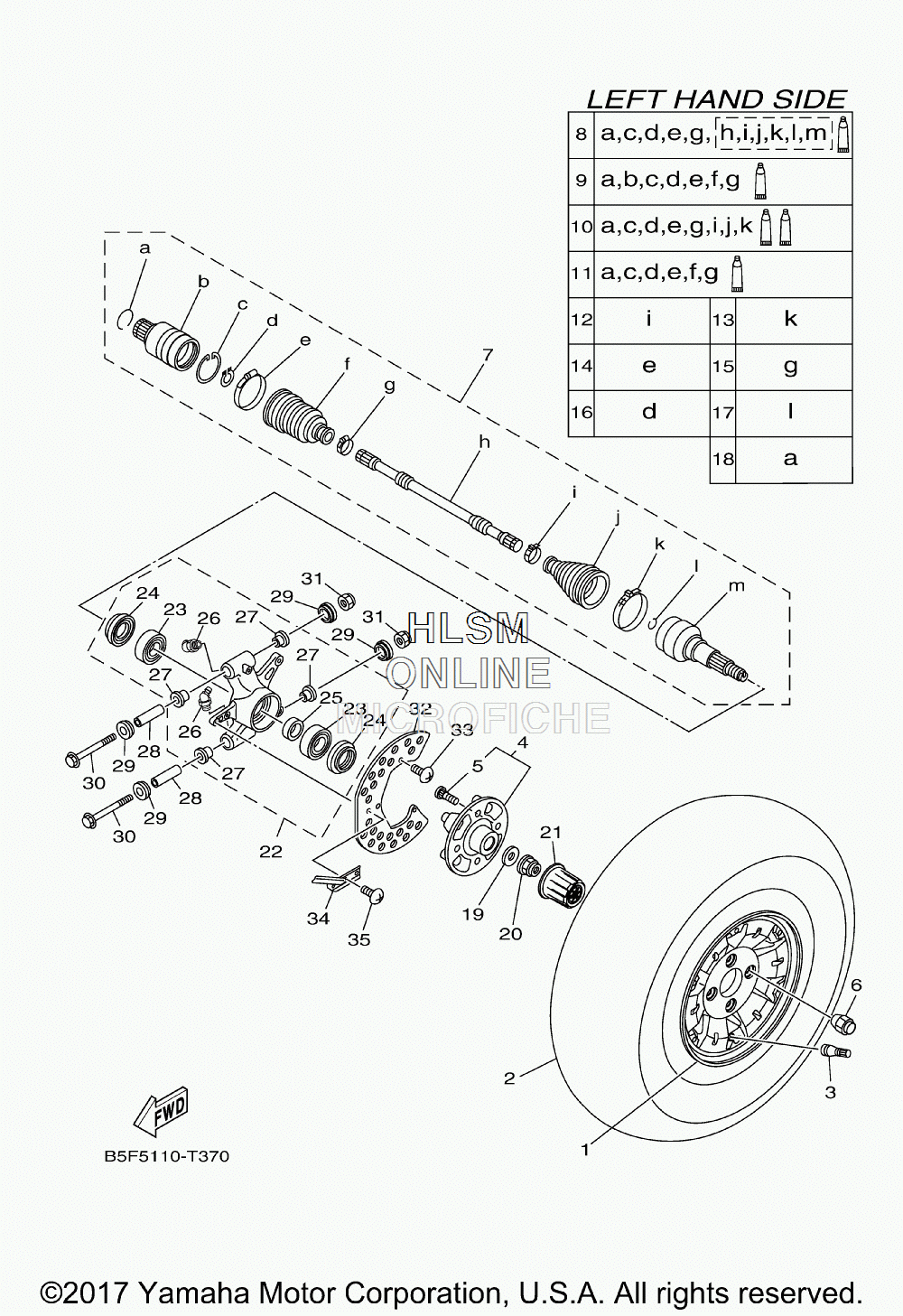

WHEEL - REAR LEFT SIDE W/ AXLE ASSY для Yamaha VIKING EPS (BLUISH GRAY) - 2018 года выпуска
-
№АртикулНазвание
-
11XP-F5307-00-00 CAST WHEEL, REARCAST WHEEL, REAR
-
294110-12815-00 TIRE (25X10.00-12 MU10 4PR TL)TIRE (25X10.00-12 MU10 4PR TL)
-
393900-00813-00 VALVE, RIM (TR413)VALVE, RIM (TR413)
-
42MB-F510D-01-00 HUB ASSY 2HUB ASSY 2
-
590114-12005-00 ...BOLT, SERRATION...BOLT, SERRATION
-
690176-12800-00 NUT, CROWNNUT, CROWN
-
71XD-F531H-00-00 REAR DRIVE SHAFT ASSYREAR DRIVE SHAFT ASSY
-
81XD-F530T-00-00 ...BALL JOINT SET...BALL JOINT SET
-
91XD-F530V-00-00 ...DOUBLE OFF SET JOINT...DOUBLE OFF SET JOINT
-
101XD-F530X-00-00 ...BOOT SET (BALL JOINT)...BOOT SET (BALL JOINT)
-
111XD-F530Y-00-00 ...BOOT SET (DOUBLE OFFSET JOINT)...BOOT SET (DOUBLE OFFSET JOINT)
-
121XD-F511H-00-00 ...BOOT BAND (DOUBLE OFFSET JOINT)...BOOT BAND (DOUBLE OFFSET JOINT)
-
131XD-F511G-00-00 ...BOOT BAND (BALL JOINT)...BOOT BAND (BALL JOINT)
-
141XD-F512G-00-00 ...BOOT BAND (SMALL)...BOOT BAND (SMALL)
-
151XD-F510U-00-00 ...BOOT BAND (SMALL)...BOOT BAND (SMALL)
-
161XD-F512J-00-00 ...SNAP RING...SNAP RING
-
175UG-F512H-00-00 ...CIRCLIP...CIRCLIP
-
181XD-F536E-00-00 ...CLIP, SPRING...CLIP, SPRING
-
1990201-25023-00 WASHER, PLATEWASHER, PLATE
-
2090179-24006-00 NUTNUT
-
212MB-F512A-00-00 CAP, WHEELCAP, WHEEL
-
221XD-F530F-20-00 REAR KNUCKLE ASSYREAR KNUCKLE ASSY
-
2393306-20725-00 ...BEARING...BEARING
-
2493106-50002-00 ...OIL SEAL...OIL SEAL
-
2590387-35007-00 ...COLLAR...COLLAR
-
2693700-06009-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
2790381-18005-00 ...BUSH, SOLID...BUSH, SOLID
-
2890387-12N54-00 COLLARCOLLAR
-
291XD-23517-00-00 COVER, THRUST 1COVER, THRUST 1
-
3090105-12089-00 BOLT, FLANGEBOLT, FLANGE
-
3190185-12010-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
321XD-F514A-01-00 RING, WHEEL 1RING, WHEEL 1
-
3392012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
341XD-F2341-00-00 PLATE, GUIDE 1PLATE, GUIDE 1
-
3592012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
