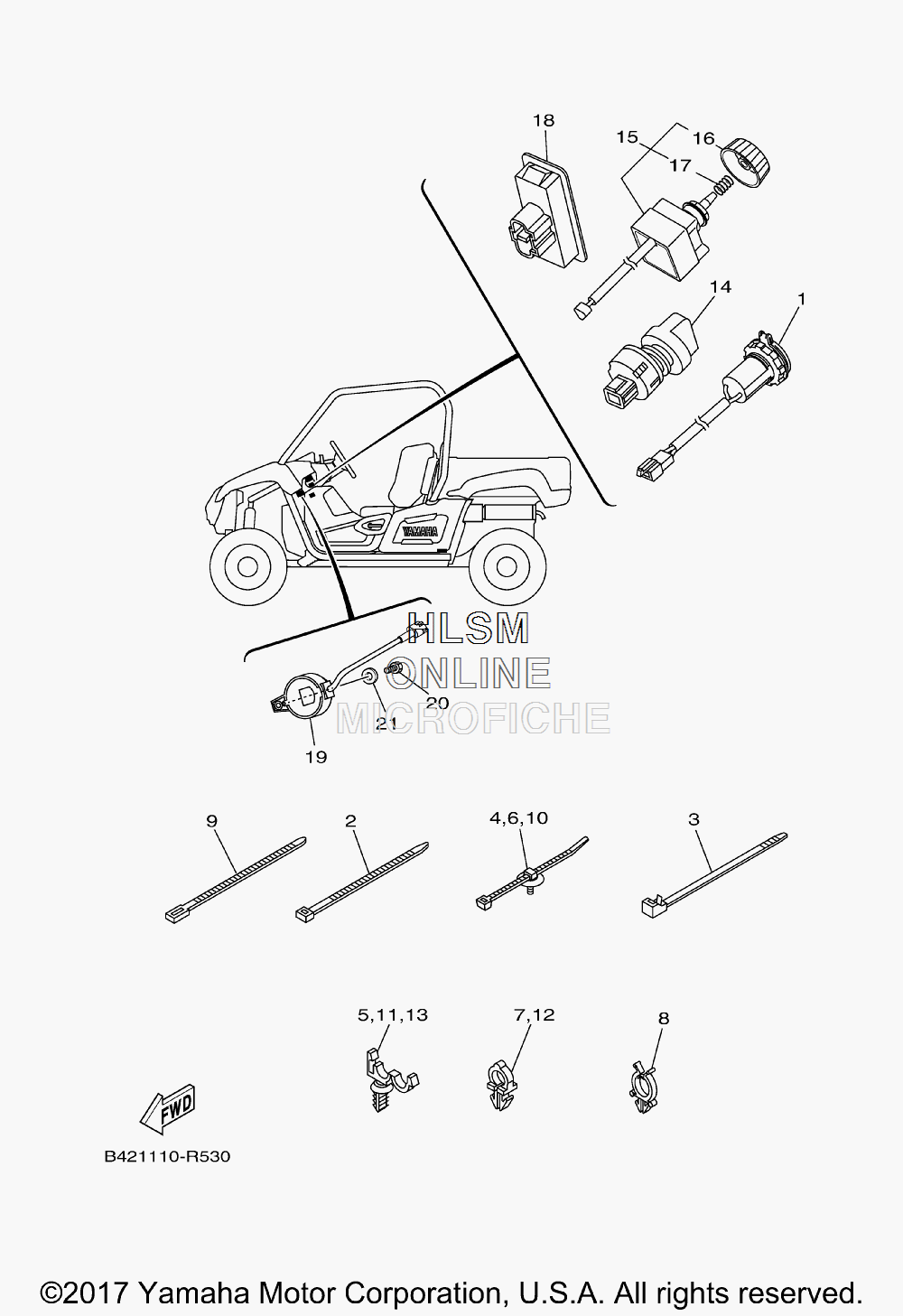

ELECTRICAL 2 для Yamaha VIKING EPS RANCH EDITION - 2018 года выпуска
-
№АртикулНазвание
-
11HP-H254B-10-00 TERMINAL COMP.TERMINAL COMP.
-
290464-48800-00 CLAMPCLAMP
-
390464-51800-00 CLAMPCLAMP
-
45B4-F1338-00-00 CLAMPCLAMP
-
590464-12830-00 CLAMPCLAMP
-
61NS-F1338-00-00 CLAMPCLAMP
-
790464-10833-00 CLAMPCLAMP
-
890464-25826-00 CLAMPCLAMP
-
990464-31827-00 CLAMPCLAMP
-
105B4-F1338-00-00 CLAMPCLAMP
-
1190464-12830-00 CLAMPCLAMP
-
1290464-10833-00 CLAMPCLAMP
-
1390464-12830-00 CLAMPCLAMP
-
145UG-H2526-00-00 SWITCH, LAMPSWITCH, LAMP
-
151XD-87280-00-00 SWITCH, SELECTSWITCH, SELECT
-
161XD-87285-00-00 ...KNOB, SELECT SWITCH...KNOB, SELECT SWITCH
-
171XD-87288-00-00 ...SPRING...SPRING
-
181XD-H3530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
192MB-83383-00-00 BUZZERBUZZER
-
2097002-05020-00 BOLTBOLT
-
2192902-05600-00 WASHER, PLATEWASHER, PLATE
