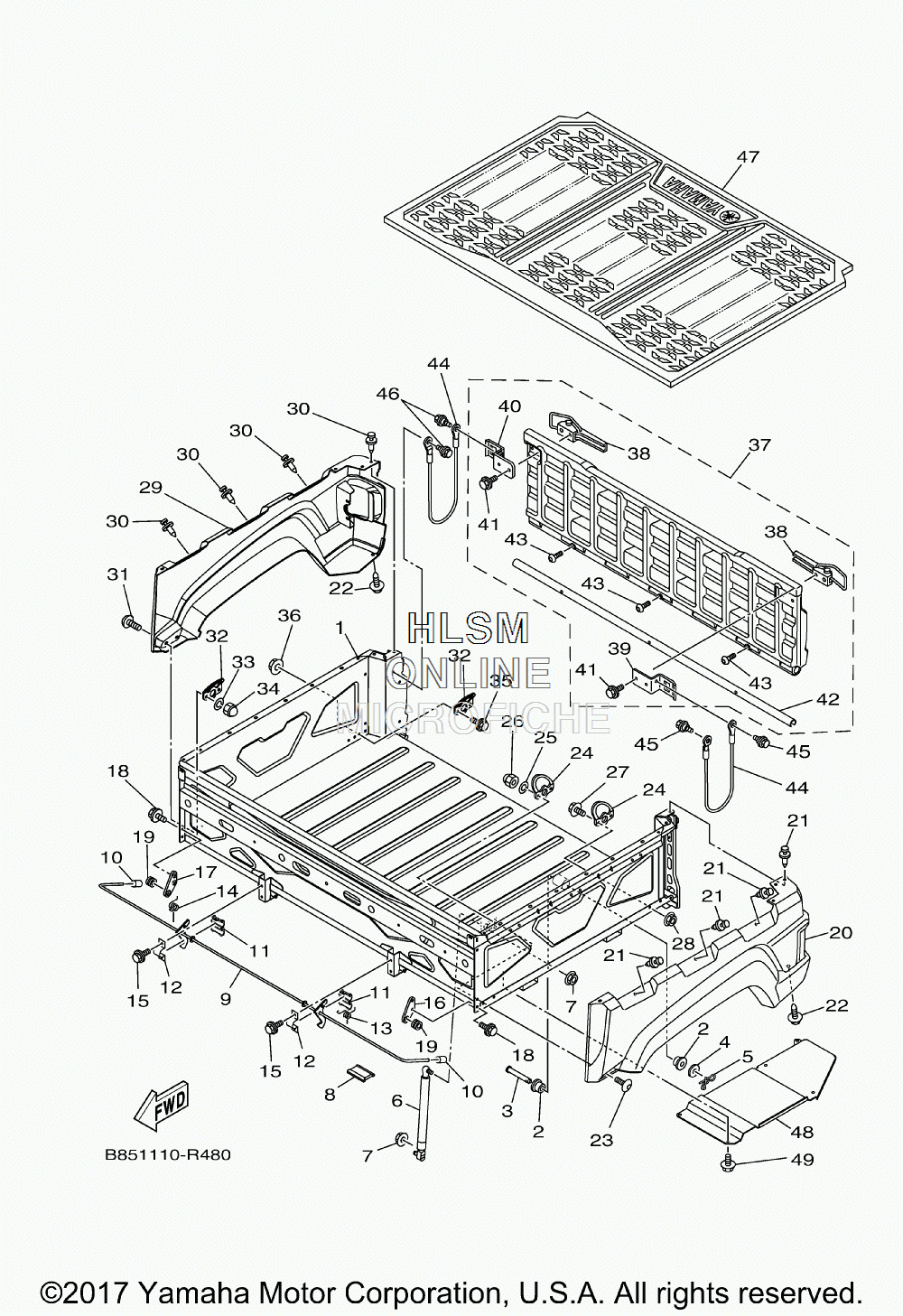

CARRIER для Yamaha VIKING VI EPS (DEEP GREEN/ROUGE) - 2018 года выпуска
-
№АртикулНазвание
-
1B42-F4850-00-00 CARRIER BOX ASSYCARRIER BOX ASSY
-
2JW6-F2123-00-00 BUSH 1BUSH 1
-
31XD-F7827-00-00 PIN, TAPERPIN, TAPER
-
490201-133E5-00 WASHER, PLATEWASHER, PLATE
-
590468-16191-00 CLIPCLIP
-
62PG-F8415-00-00 DAMPER 1DAMPER 1
-
795602-08200-00 NUT, U FLANGENUT, U FLANGE
-
8B42-F113B-00-00 DAMPERDAMPER
-
91XD-K7180-00-00 LATCH ASSYLATCH ASSY
-
105UG-K818M-00-00 CAP, PROTECTOR END 4CAP, PROTECTOR END 4
-
111XD-F4571-00-00 BUSHINGBUSHING
-
121XD-F839N-00-00 HOLDERHOLDER
-
131XD-F4758-00-00 SPRINGSPRING
-
141XD-F4758-10-00 SPRINGSPRING
-
1595812-06010-00 BOLT, FLANGEBOLT, FLANGE
-
161XD-F849N-00-00 BRACKET, TRUNK LOCKBRACKET, TRUNK LOCK
-
171XD-F849N-10-00 BRACKET, TRUNK LOCKBRACKET, TRUNK LOCK
-
1895812-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1990480-15235-00 GROMMETGROMMET
-
201XD-K8191-20-00 PANEL, REAR FENDER 1 (RTR - ROMANTIQUE ROUGE)PANEL, REAR FENDER 1 (RTR - ROMANTIQUE ROUGE)
-
201XD-K8191-00-00 PANEL, REAR FENDER 1 (PDG - DEEP GREEN)PANEL, REAR FENDER 1 (PDG - DEEP GREEN)
-
2190269-07805-00 RIVETRIVET
-
2290119-06226-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2390111-06814-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
245UG-F4867-00-00 HOOKHOOK
-
2592902-06100-00 WASHER, SPRINGWASHER, SPRING
-
2695302-06800-00 NUT, CROWNNUT, CROWN
-
2795812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2895602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
291XD-K8192-20-00 PANEL, REAR FENDER 2 (RTR - ROMANTIQUE ROUGE)PANEL, REAR FENDER 2 (RTR - ROMANTIQUE ROUGE)
-
291XD-K8192-00-00 PANEL, REAR FENDER 2 (PDG - DEEP GREEN)PANEL, REAR FENDER 2 (PDG - DEEP GREEN)
-
3090269-07805-00 RIVETRIVET
-
3190111-06814-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
325UG-F4867-00-00 HOOKHOOK
-
3392902-06100-00 WASHER, SPRINGWASHER, SPRING
-
3495302-06800-00 NUT, CROWNNUT, CROWN
-
3595812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
3695602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
371XD-K810N-00-00 REAR STORAGE LID COMP.REAR STORAGE LID COMP.
-
385UG-F389E-00-00 ...LATCH...LATCH
-
391XD-F83D1-00-00 ...STOPPER 1...STOPPER 1
-
401XD-F83D2-00-00 ...STOPPER 2...STOPPER 2
-
4195812-06035-00 ...BOLT, FLANGE...BOLT, FLANGE
-
421XD-F463F-00-00 ...HINGE 2...HINGE 2
-
4390149-06846-00 ...SCREW...SCREW
-
445UG-K7195-10-00 HOLDER, CABLEHOLDER, CABLE
-
4590109-06212-00 BOLTBOLT
-
4690109-06212-00 BOLTBOLT
-
471XD-K8241-00-00 MAT, REAR FLOORMAT, REAR FLOOR
-
481XD-F2891-00-00 INSULATOR, MOUNTINGINSULATOR, MOUNTING
-
4990105-06831-00 BOLT, FLANGEBOLT, FLANGE
