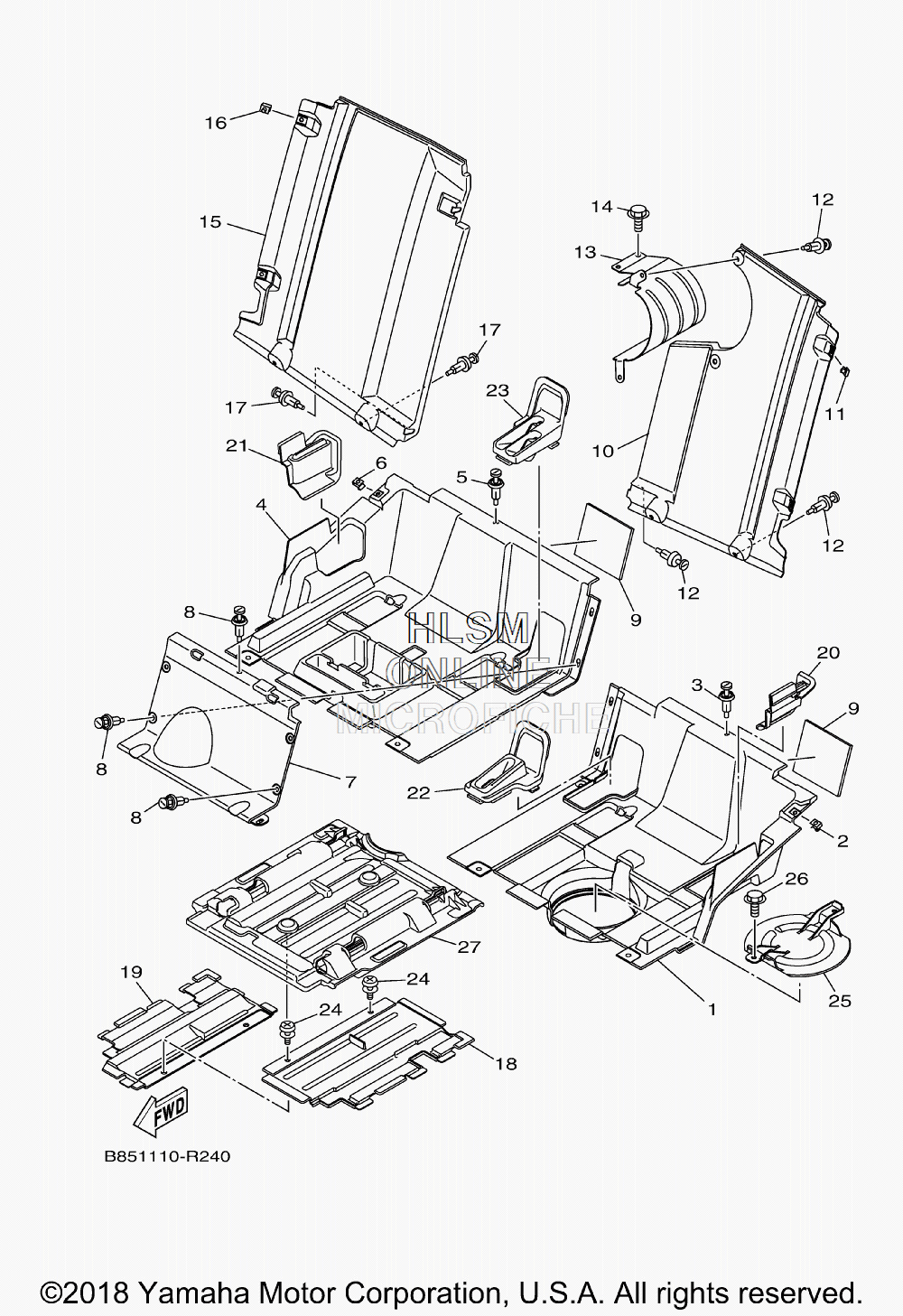

SIDE COVER 3 для Yamaha VIKING VI EPS HUNTER - 2019 года выпуска
-
№АртикулНазвание
-
11XD-F84A3-00-00 PLATE, UNDER 1PLATE, UNDER 1
-
290183-060A6-00 NUT, SPRINGNUT, SPRING
-
390269-07805-00 RIVETRIVET
-
41XD-F84A4-00-00 PLATE, UNDER 2PLATE, UNDER 2
-
590269-07805-00 RIVETRIVET
-
690183-060A6-00 NUT, SPRINGNUT, SPRING
-
71XD-F84A5-00-00 PLATE, UNDER 3PLATE, UNDER 3
-
890269-07805-00 RIVETRIVET
-
9B42-21747-00-00 DAMPERDAMPER
-
101XD-F2327-00-00 MUD GUARD 1MUD GUARD 1
-
1190183-060A6-00 NUT, SPRINGNUT, SPRING
-
1290269-07805-00 RIVETRIVET
-
131XD-F172A-00-00 PANEL 1PANEL 1
-
1490105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
151XD-F2328-01-00 MUD GUARD 2MUD GUARD 2
-
1690183-060A6-00 NUT, SPRINGNUT, SPRING
-
1790269-07805-00 RIVETRIVET
-
18B42-F84A6-00-00 PLATE, UNDER 4PLATE, UNDER 4
-
19B42-F84A7-00-00 PLATE, UNDER 5PLATE, UNDER 5
-
20B42-F8483-01-00 PLATE, RUBBER 1PLATE, RUBBER 1
-
21B42-F8484-01-00 PLATE, RUBBER 2PLATE, RUBBER 2
-
22B42-F8485-00-00 PLATE, RUBBER 3PLATE, RUBBER 3
-
23B42-F8499-00-00 PLATE, RUBBER 4PLATE, RUBBER 4
-
245UG-F3483-00-00 RIVETRIVET
-
25B42-F2448-00-00 PLATE, SEALPLATE, SEAL
-
2690105-08867-00 BOLT, FLANGEBOLT, FLANGE
-
27B42-F176E-00-00 PLATEPLATE
