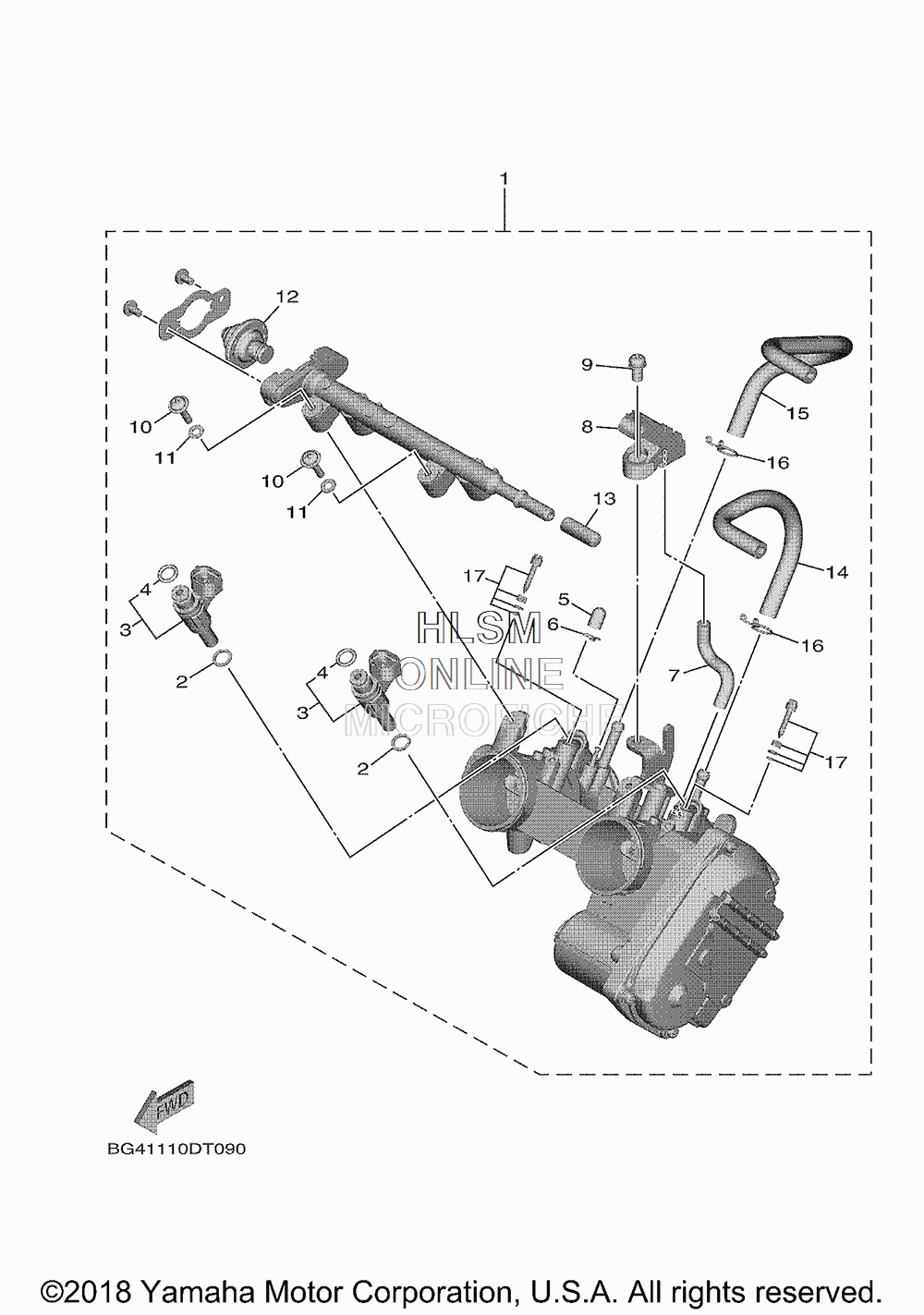

THROTTLE BODY ASSY. для Yamaha WOLVERINE X2 R-SPEC EPS SE (DARK BLUE) - 2019 года выпуска
-
№АртикулНазвание
-
1BG4-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
268V-13766-10-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
3BG4-13761-00-00 ...INJECTOR...INJECTOR
-
468V-1416A-00-00 ......O-RING......O-RING
-
5895-14169-00-00 ...CAP...CAP
-
68A7-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
75PS-14987-00-00 ...HOSE...HOSE
-
81WS-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
92C0-14216-00-00 ...SCREW...SCREW
-
1014B-13573-00-00 ...BOLT 1...BOLT 1
-
11363-14198-00-00 ...GASKET...GASKET
-
125VK-13982-00-00 ...DAMPER...DAMPER
-
135UX-14118-00-00 ...CAP...CAP
-
14BG4-14465-00-00 ...PIPE...PIPE
-
15BG4-14466-00-00 ...PIPE...PIPE
-
1690467-09006-00 ...CLIP...CLIP
-
172C0-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
