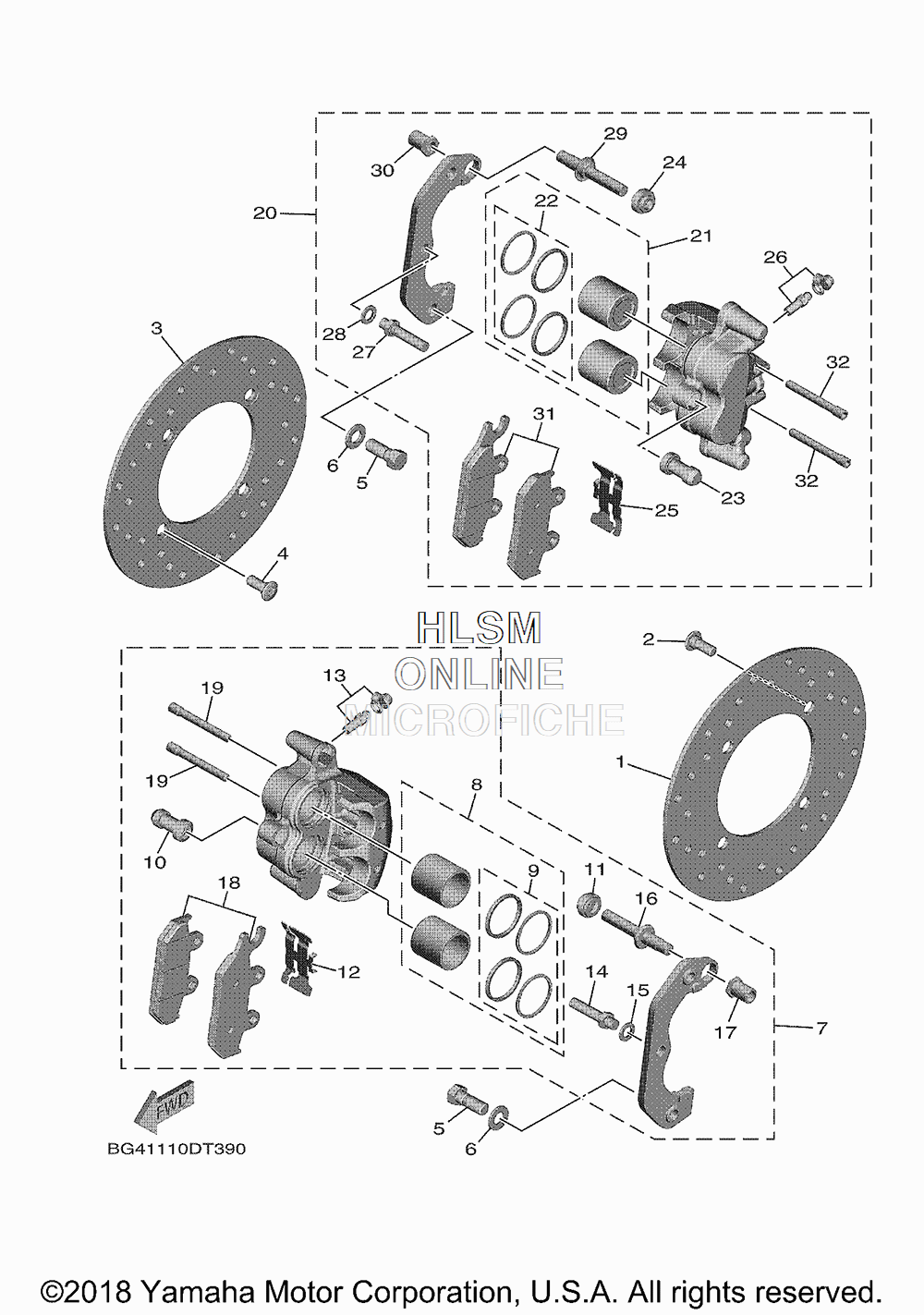

BRAKE - FRONT CALIPER для Yamaha WOLVERINE X4 SPECIAL EDITION (DARK BLUE) - 2019 года выпуска
-
№АртикулНазвание
-
12MB-F582T-00-00 DISC, BRAKE (LEFT)DISC, BRAKE (LEFT)
-
290109-08253-00 BOLTBOLT
-
32MB-F582T-00-00 DISC, BRAKE (RIGHT)DISC, BRAKE (RIGHT)
-
490109-08253-00 BOLTBOLT
-
590101-10045-00 BOLTBOLT
-
690201-10013-00 WASHER, PLATEWASHER, PLATE
-
71XD-2580T-00-00 CALIPER ASSY (LEFT)CALIPER ASSY (LEFT)
-
81XD-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
91XD-25803-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
101UY-25937-51-00 ...BOOT 2...BOOT 2
-
113JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
121XD-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
131UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
141UY-25926-51-00 ...BOLT...BOLT
-
151UY-25938-51-00 ...WASHER, SPRING...WASHER, SPRING
-
163JD-25926-00-00 ...BOLT...BOLT
-
173JD-25961-00-00 ...NUT...NUT
-
181XD-25805-00-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
193TB-25933-00-00 ...WASHER, PAD PIN...WASHER, PAD PIN
-
201XD-2580U-00-00 CALIPER ASSY (RIGHT)CALIPER ASSY (RIGHT)
-
211XD-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
221XD-25803-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
231UY-25937-51-00 ...BOOT 2...BOOT 2
-
243JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
251XD-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
261UY-W0048-50-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
271UY-25926-51-00 ...BOLT...BOLT
-
281UY-25938-51-00 ...WASHER, SPRING...WASHER, SPRING
-
293JD-25926-00-00 ...BOLT...BOLT
-
303JD-25961-00-00 ...NUT...NUT
-
311XD-25805-10-00 ...BRAKE PAD KIT...BRAKE PAD KIT
-
323TB-25933-00-00 ...WASHER, PAD PIN...WASHER, PAD PIN
