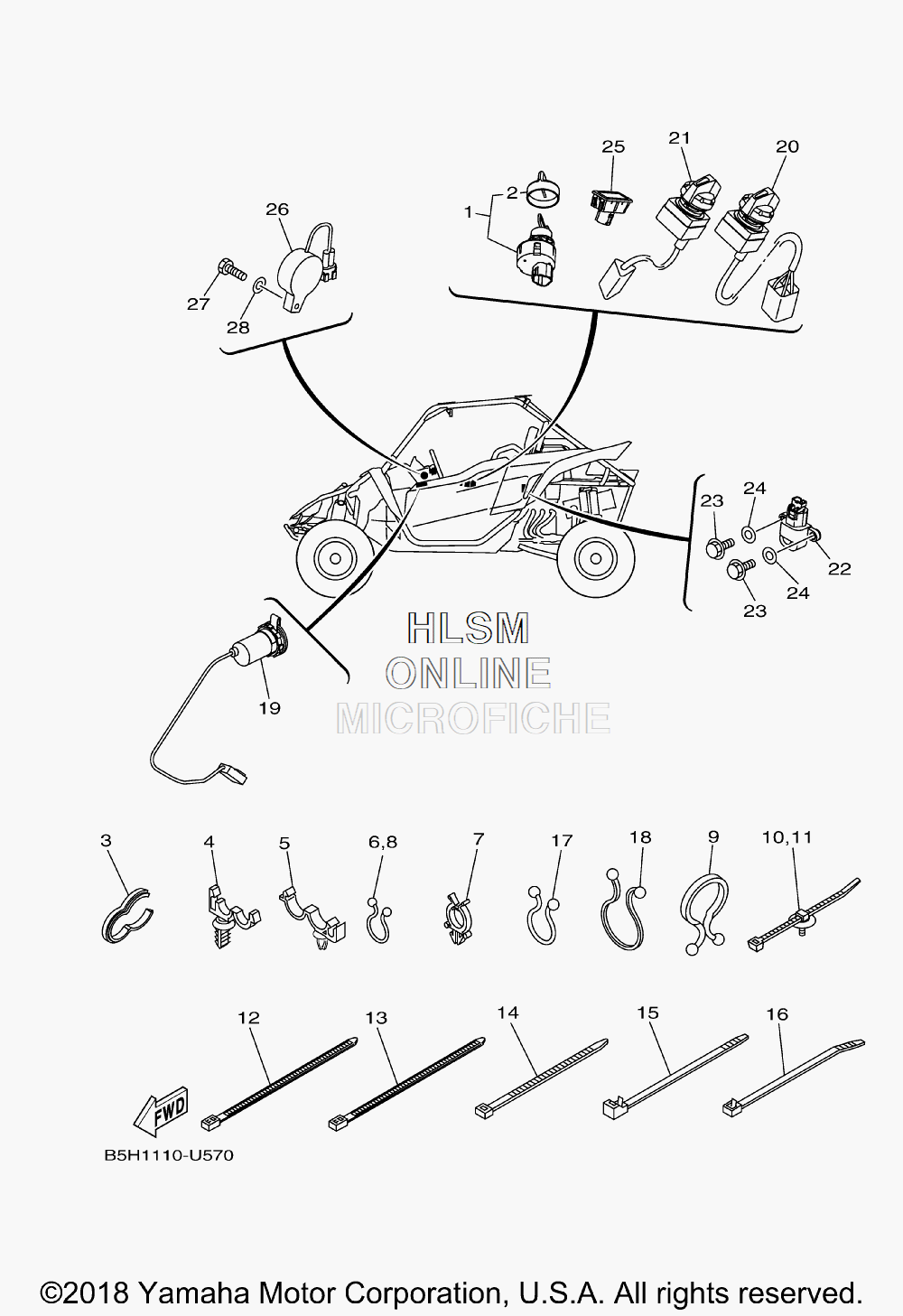

ELECTRICAL 3 для Yamaha YXZ1000R EPS SS SPECIAL EDITION (PURPLISH BLUE) - 2019 года выпуска
-
№АртикулНазвание
-
15UG-H2510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
25UG-H2579-00-00 ...CAP, KEY...CAP, KEY
-
390464-15065-00 CLAMPCLAMP
-
490464-12830-00 CLAMP (D: 12MM)CLAMP (D: 12MM)
-
590464-20010-00 CLAMPCLAMP
-
690464-14800-00 CLAMPCLAMP
-
790464-25826-00 CLAMPCLAMP
-
890464-20804-00 CLAMPCLAMP
-
990464-37257-00 CLAMPCLAMP
-
105B4-F1338-00-00 CLAMPCLAMP
-
111NS-F1338-00-00 CLAMPCLAMP
-
1290464-31827-00 CLAMP (122X4.80)CLAMP (122X4.80)
-
1390464-40825-00 CLAMPCLAMP
-
1490464-48800-00 CLAMPCLAMP
-
1590464-51800-00 CLAMP (213X7.60)CLAMP (213X7.60)
-
1690464-76800-00 CLAMPCLAMP
-
1790464-44109-00 CLAMPCLAMP
-
1890464-25267-00 CLAMPCLAMP
-
191HP-H254B-10-00 TERMINAL COMP.TERMINAL COMP.
-
202HC-82526-00-00 SWITCH, LIGHTSWITCH, LIGHT
-
212HC-87280-00-00 SWITCH, SELECTSWITCH, SELECT
-
223B4-82576-10-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
2397002-05016-00 BOLTBOLT
-
2492902-05600-00 WASHER, PLATEWASHER, PLATE
-
251XD-H3530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
262MB-83383-00-00 BUZZERBUZZER
-
2797002-05020-00 BOLTBOLT
-
2892902-05600-00 WASHER, PLATEWASHER, PLATE
