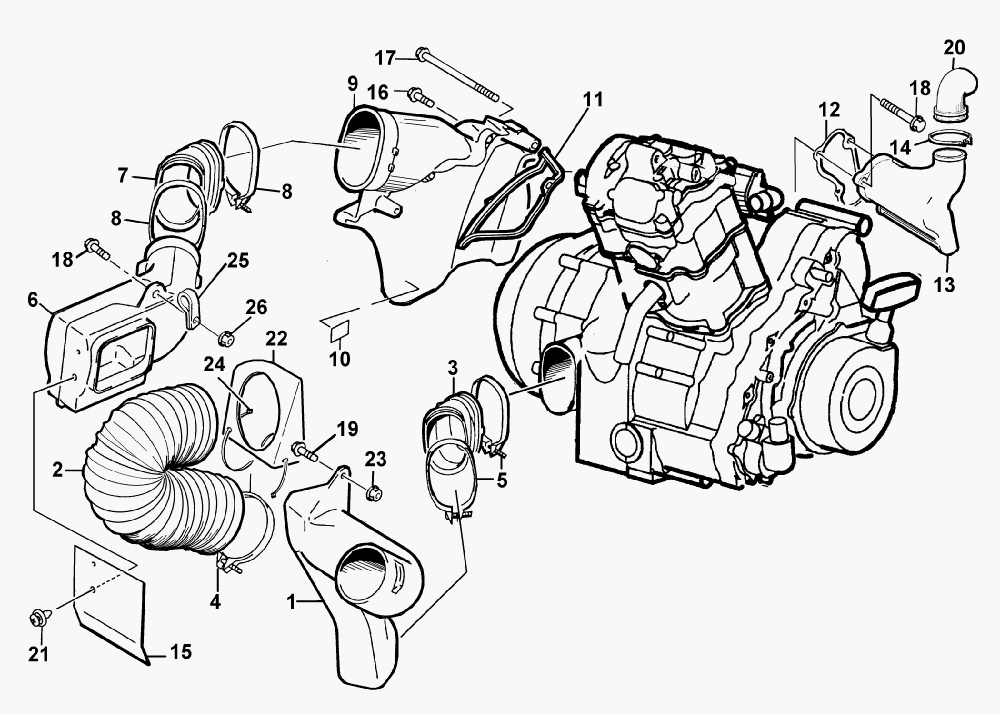

CASE/BELT COOLING ASSEMBLY для Arctic Cat 500 4X4 AUTO (RED) [A2001ATM4BUSR] - 2001 года выпуска
-
№АртикулНазвание
-
13402-447 DUCT, BELT COOLING - FRONTDUCT, BELT COOLING - FRONT
-
20410-033 DUCT, BELT COOLING - FRONTDUCT, BELT COOLING - FRONT
-
33402-448 TUBE, CLUTCH COOLINGTUBE, CLUTCH COOLING
-
40423-018 CLAMP, DUCT - FRONTCLAMP, DUCT - FRONT
-
53402-449 CLAMP, DUCT - FRONTCLAMP, DUCT - FRONT
-
63402-450 DUCT, BELT COOLING - CENTERDUCT, BELT COOLING - CENTER
-
73402-451 CONNECTOR, COOLING DUCT - CENTERCONNECTOR, COOLING DUCT - CENTER
-
83402-448 CLAMP, DUCT - CENTERCLAMP, DUCT - CENTER
-
93402-452 CONNECTOR, DUCT - CENTERCONNECTOR, DUCT - CENTER
-
103402-453 CUSHION, DUCT CONNECTOR - CENTERCUSHION, DUCT CONNECTOR - CENTER
-
113402-454 GASKET, DUCT CONNECTOR - CENTERGASKET, DUCT CONNECTOR - CENTER
-
120410-034 GASKET, DUCT CONNECTOR - REARGASKET, DUCT CONNECTOR - REAR
-
130510-591 PLENUM, CLUTCHPLENUM, CLUTCH
-
143402-455 CLAMPCLAMP
-
150506-402 GUARD, DUCTGUARD, DUCT
-
163004-341 BOLT, DUCT CONNECTOR - CENTERBOLT, DUCT CONNECTOR - CENTER
-
173423-393 BOLT, DUCT CONNECTOR - CENTERBOLT, DUCT CONNECTOR - CENTER
-
188476-625 SCREW, MACHINESCREW, MACHINE
-
198408-820 SCREW, CAPSCREW, CAP
-
200410-032 BOOT, CLUTCH PLENUMBOOT, CLUTCH PLENUM
-
213423-423 CLIP, RETAINING - DUCT GUARDCLIP, RETAINING - DUCT GUARD
-
220406-560 RETAINER, COOLING HOSERETAINER, COOLING HOSE
-
238424-802 NUT, FLANGENUT, FLANGE
-
240123-788 CABLE TIE - 7 IN.CABLE TIE - 7 IN.
-
250423-167 CLAMP, BRAKELINECLAMP, BRAKELINE
-
268424-602 NUT, FLANGENUT, FLANGE
