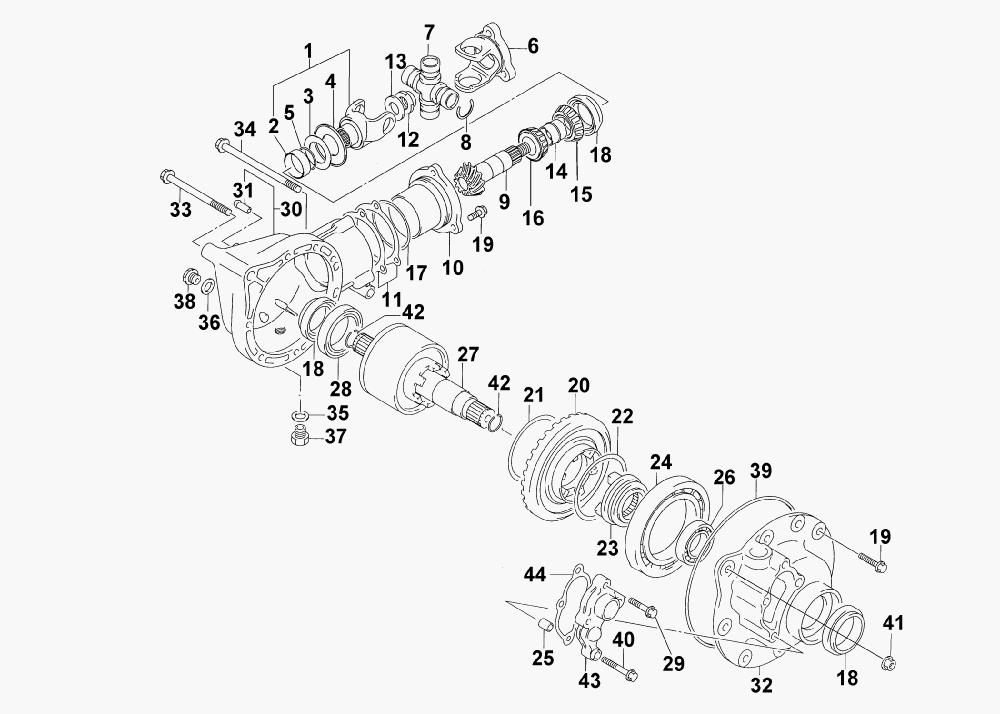

FRONT FINAL BEVEL GEAR ASSEMBLY для Arctic Cat 500 4X4 AUTO (RED) [A2001ATM4BUSR] - 2001 года выпуска
-
№АртикулНазвание
-
13435-090 YOKE, DRIVE BEVEL GEAR (INC. 2-5)YOKE, DRIVE BEVEL GEAR (INC. 2-5)
-
23435-029 ...COLLAR, YOKE...COLLAR, YOKE
-
33435-030 ...PLATE, YOKE...PLATE, YOKE
-
43435-035 ...PLATE, YOKE COLLAR...PLATE, YOKE COLLAR
-
53423-060 ...O-RING, YOKE COLLAR...O-RING, YOKE COLLAR
-
63435-091 YOKE, PROPELLER SHAFTYOKE, PROPELLER SHAFT
-
73435-011 JOINT, UNIVERSAL - SETJOINT, UNIVERSAL - SET
-
83423-067 CIRCLIP, UNIVERSAL JOINTCIRCLIP, UNIVERSAL JOINT
-
93435-092 GEAR, DRIVE BEVELGEAR, DRIVE BEVEL
-
103435-021 HOUSING, DRIVE BEVEL GEARHOUSING, DRIVE BEVEL GEAR
-
113435-022 SHIM SETSHIM SET
-
123423-178 NUT, DRIVE BEVEL GEARNUT, DRIVE BEVEL GEAR
-
133423-028 WASHER, DRIVE BEVEL GEARWASHER, DRIVE BEVEL GEAR
-
143402-016 SPACER, DRIVE BEVEL GEARSPACER, DRIVE BEVEL GEAR
-
153402-066 BEARING, DRIVE BEVEL GEARBEARING, DRIVE BEVEL GEAR
-
163402-065 BEARING, DRIVE BEVEL GEARBEARING, DRIVE BEVEL GEAR
-
173423-064 O-RING, DRIVE BEVEL GEAR HOUSINGO-RING, DRIVE BEVEL GEAR HOUSING
-
183402-072 SEALSEAL
-
193423-175 BOLTBOLT
-
203402-519 GEAR, DRIVEN BEVELGEAR, DRIVEN BEVEL
-
213435-017 SHIM SET - GEARSHIM SET - GEAR
-
223435-020 SHIM SET - BEARINGSHIM SET - BEARING
-
233435-075 DOG, DIFFERENTIAL LOCKDOG, DIFFERENTIAL LOCK
-
243402-059 BEARING, DRIVEN BEVELBEARING, DRIVEN BEVEL
-
253005-206 PIN, DOWELPIN, DOWEL
-
263402-185 BEARING, DRIVEN OUTPUT SHAFTBEARING, DRIVEN OUTPUT SHAFT
-
273435-093 DIFFERENTIAL ASSEMBLYDIFFERENTIAL ASSEMBLY
-
283402-057 BEARING, DIFFERENTIAL CASE - RIGHTBEARING, DIFFERENTIAL CASE - RIGHT
-
293004-756 BOLT, CASE COVERBOLT, CASE COVER
-
303435-024 HOUSING, DIFFERENTIAL GEAR (INC. 31)HOUSING, DIFFERENTIAL GEAR (INC. 31)
-
313402-084 ...UNION, BREATHER...UNION, BREATHER
-
323435-078 CASE, DRIVEN GEAR BEARINGCASE, DRIVEN GEAR BEARING
-
333423-010 BOLT, MOUNTING - DIFFERENTIAL HOUSINGBOLT, MOUNTING - DIFFERENTIAL HOUSING
-
343423-419 BOLT, MOUNTING - DIFFERENTIAL HOUSINGBOLT, MOUNTING - DIFFERENTIAL HOUSING
-
353402-012 GASKET, OIL DRAIN PLUG - GEARGASKET, OIL DRAIN PLUG - GEAR
-
363402-013 GASKET, OIL FILLER PLUG - GEARGASKET, OIL FILLER PLUG - GEAR
-
373402-036 PLUG, OIL DRAIN - GEARPLUG, OIL DRAIN - GEAR
-
383423-180 PLUG, OIL FILLER - GEARPLUG, OIL FILLER - GEAR
-
393423-050 O-RING, DRIVEN GEAR BEARING CASEO-RING, DRIVEN GEAR BEARING CASE
-
400693-327 BOLT, CASE COVERBOLT, CASE COVER
-
413423-341 NUT, MOUNTING - DIFFERENTIAL HOUSINGNUT, MOUNTING - DIFFERENTIAL HOUSING
-
423423-070 RING, DRIVESHAFTRING, DRIVESHAFT
-
433435-079 COVER, DRIVEN GEAR CASECOVER, DRIVEN GEAR CASE
-
443402-323 GASKET, CASE COVERGASKET, CASE COVER
