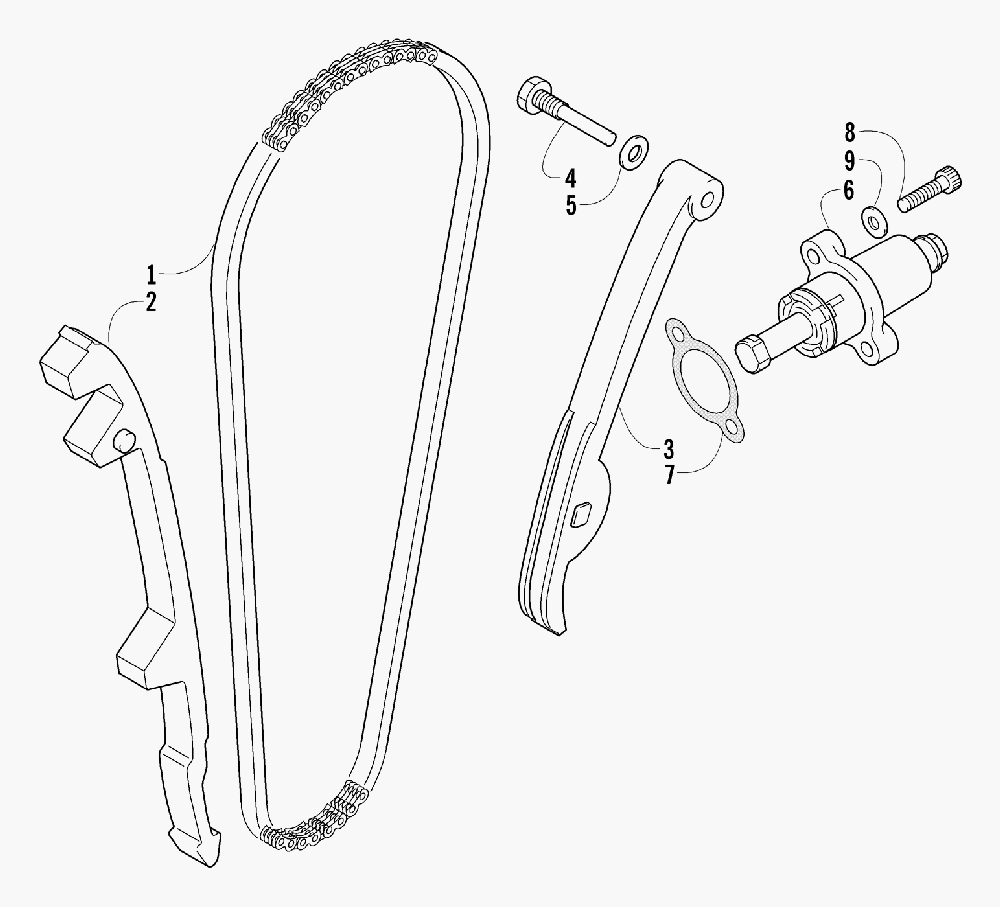

CAM CHAIN ASSEMBLY для Arctic Cat 400 4X4 FIS MAN (RED) [A2002ISI4AUSR] - 2002 года выпуска
-
№АртикулНазвание
-
13402-133 CHAIN, CAMCHAIN, CAM
-
23402-134 GUIDE, CHAINGUIDE, CHAIN
-
33402-135 TENSIONER, CHAINTENSIONER, CHAIN
-
43423-074 SCREW, CAPSCREW, CAP
-
53003-188 WASHERWASHER
-
63402-136 ADJUSTER, TENSIONER - ASSEMBLYADJUSTER, TENSIONER - ASSEMBLY
-
73402-137 GASKETGASKET
-
83004-475 SCREW, CAPSCREW, CAP
-
93003-290 GASKETGASKET
