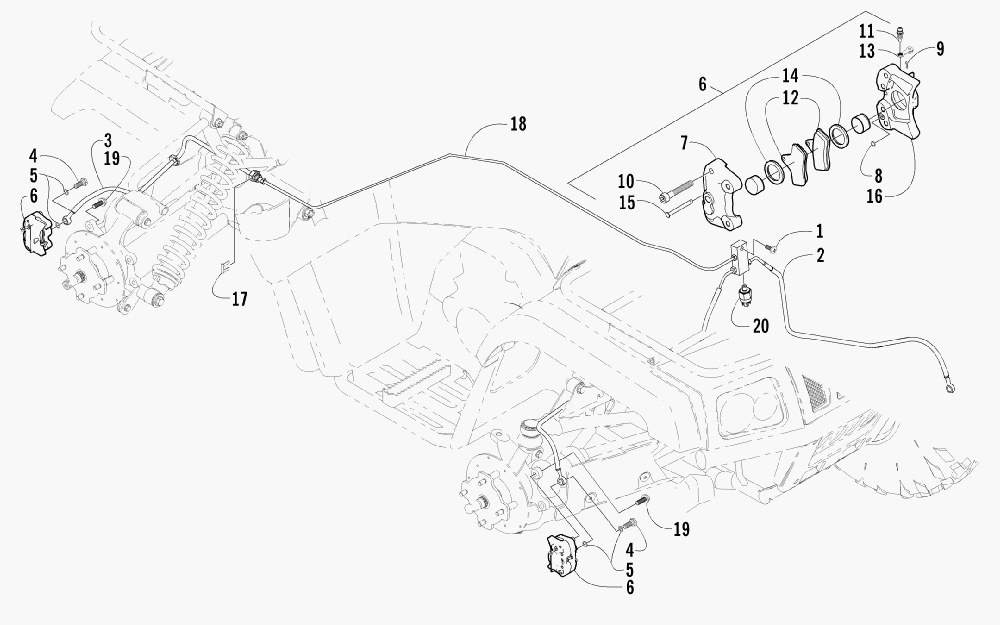

HYDRAULIC BRAKE ASSEMBLY для Arctic Cat 400 4X4 FIS MAN (RED) [A2002ISI4AUSR] - 2002 года выпуска
-
№АртикулНазвание
-
18476-625 SCREW, CAPSCREW, CAP
-
20402-961 HOSE, BRAKE - FRONTHOSE, BRAKE - FRONT
-
30402-956 HOSE, BRAKE - REARHOSE, BRAKE - REAR
-
40423-409 BOLT, BANJO FITTINGBOLT, BANJO FITTING
-
50423-039 WASHER, CRUSHWASHER, CRUSH
-
60502-335 CALIPER, BRAKE - RIGHT - FRONT (INC. 7-16)CALIPER, BRAKE - RIGHT - FRONT (INC. 7-16)
-
60502-336 CALIPER, BRAKE - LEFT FRONT AND RIGHT REAR (INC. 7-16)CALIPER, BRAKE - LEFT FRONT AND RIGHT REAR (INC. 7-16)
-
80402-490 ...O-RING...O-RING
-
90402-496 ...PIN, COTTER...PIN, COTTER
-
100402-495 ...PIN, BRAKE CALIPER...PIN, BRAKE CALIPER
-
110402-493 ...CAP, BLEED VALVE...CAP, BLEED VALVE
-
120402-882 ...PAD, BRAKE...PAD, BRAKE
-
130402-491 ...VALVE, BLEED...VALVE, BLEED
-
140402-980 ...O-RING, BRAKE CALIPER...O-RING, BRAKE CALIPER
-
150402-492 ...SCREW, CAP...SCREW, CAP
-
170402-597 CLIP, BRAKE LINECLIP, BRAKE LINE
-
180402-955 TUBE, BRAKE LINE - REARTUBE, BRAKE LINE - REAR
-
198408-825 SCREW, CAPSCREW, CAP
-
200402-306 SWITCH, BRAKE PRESSURESWITCH, BRAKE PRESSURE
