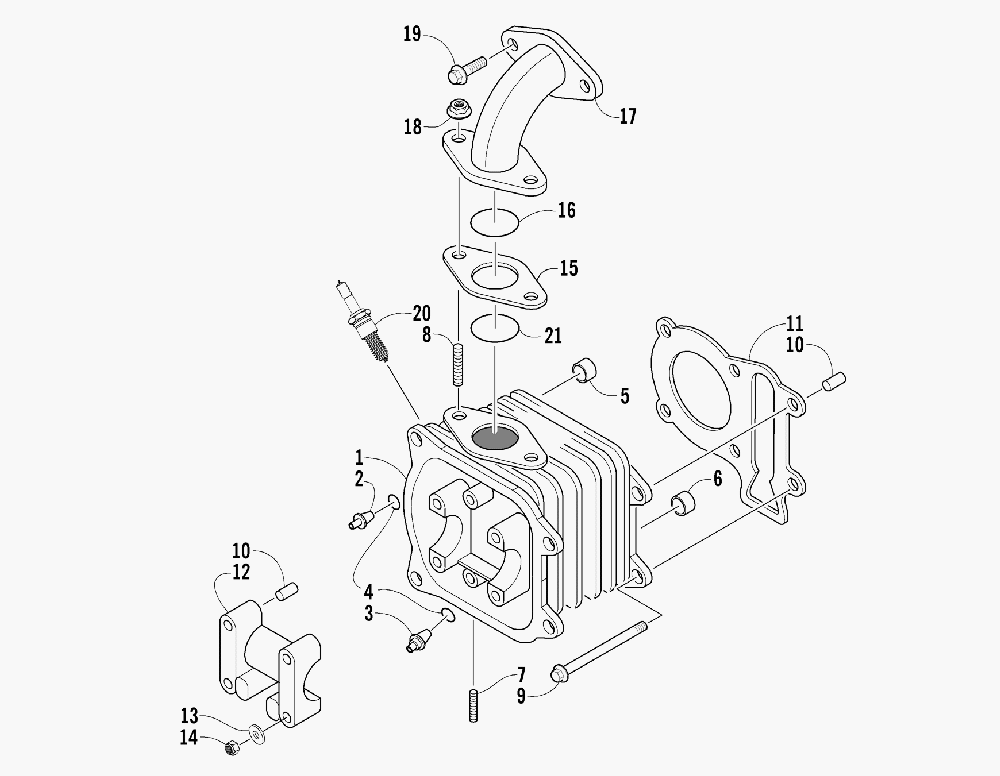

CYLINDER HEAD ASSEMBLY для Arctic Cat 90 4 STROKE 2X4 AUTO (CAT GREEN) [A2004H4B2BUSZ] - 2004 года выпуска
-
№АртикулНазвание
-
13301-626 HEAD, CYLINDERHEAD, CYLINDER
-
23301-627 GUIDE, VALVE - INTAKEGUIDE, VALVE - INTAKE
-
33301-628 GUIDE, VALVE - EXHAUSTGUIDE, VALVE - EXHAUST
-
43301-629 O-RINGO-RING
-
53301-630 SEAT, VALVE - INTAKESEAT, VALVE - INTAKE
-
63301-631 SEAT, VALVE - EXHAUSTSEAT, VALVE - EXHAUST
-
73301-632 BOLT, STUDBOLT, STUD
-
83301-633 BOLT, STUDBOLT, STUD
-
93301-634 SCREW, CAPSCREW, CAP
-
103301-635 PIN, DOWELPIN, DOWEL
-
113301-636 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
123301-637 HOLDER, CAMSHAFTHOLDER, CAMSHAFT
-
133301-638 WASHERWASHER
-
143301-329 NUT, LOCKNUT, LOCK
-
153301-639 GASKET, INTAKE MANIFOLDGASKET, INTAKE MANIFOLD
-
163301-640 O-RINGO-RING
-
173301-641 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
183301-327 NUT, LOCKNUT, LOCK
-
193301-713 SCREW, CAPSCREW, CAP
-
203301-643 SPARK PLUGSPARK PLUG
-
213301-645 O-RINGO-RING
