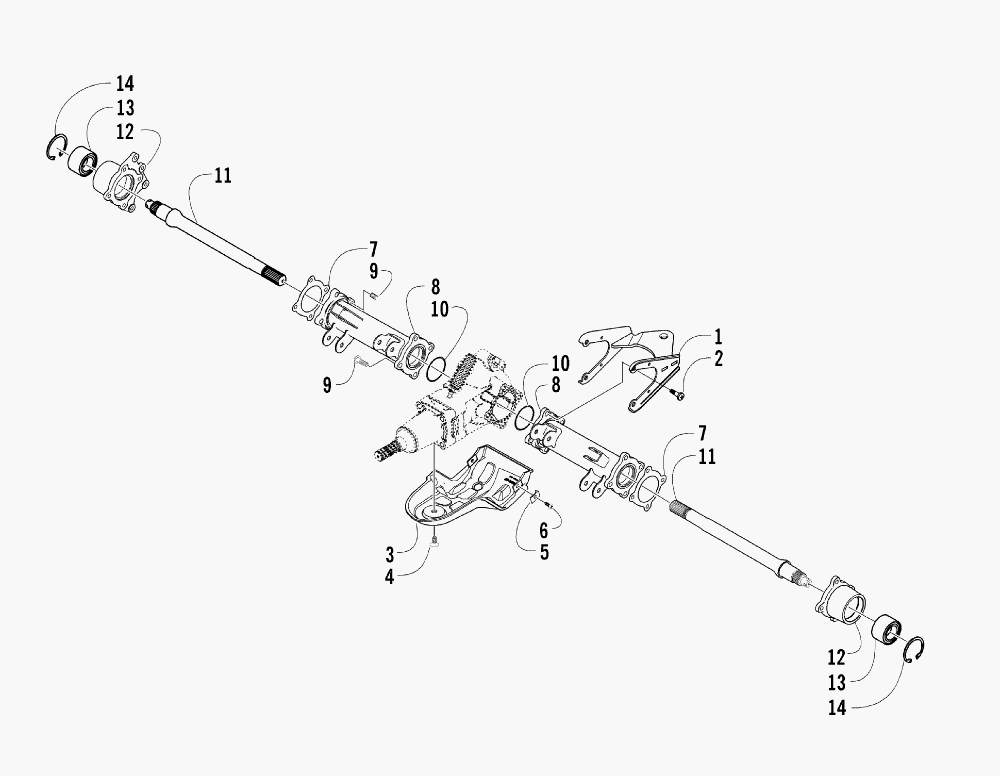

REAR AXLE ASSEMBLY для Arctic Cat 400 4 X 4 VP MAN (GREEN) [A2005ATH4AUSG] - 2005 года выпуска
-
№АртикулНазвание
-
10506-675 HITCH, TRAILERHITCH, TRAILER
-
20423-116 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
30406-415 PANEL, GEARCASEPANEL, GEARCASE
-
40423-101 SCREW, BODYSCREW, BODY
-
50423-031 NUT, SPEEDNUT, SPEED
-
68477-616 SCREW, MACHINESCREW, MACHINE
-
70402-374 GASKET, AXLE HOUSINGGASKET, AXLE HOUSING
-
80502-090 HOUSING, AXLE - RIGHTHOUSING, AXLE - RIGHT
-
80502-091 HOUSING, AXLE - LEFTHOUSING, AXLE - LEFT
-
90423-117 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
100423-119 O-RINGO-RING
-
111402-239 AXLE - RIGHTAXLE - RIGHT
-
111402-240 AXLE - LEFTAXLE - LEFT
-
120502-680 HOUSING, BEARING - RIGHTHOUSING, BEARING - RIGHT
-
120502-681 HOUSING, BEARING - LEFTHOUSING, BEARING - LEFT
-
131402-027 BEARINGBEARING
-
140423-423 RING, RETAININGRING, RETAINING
