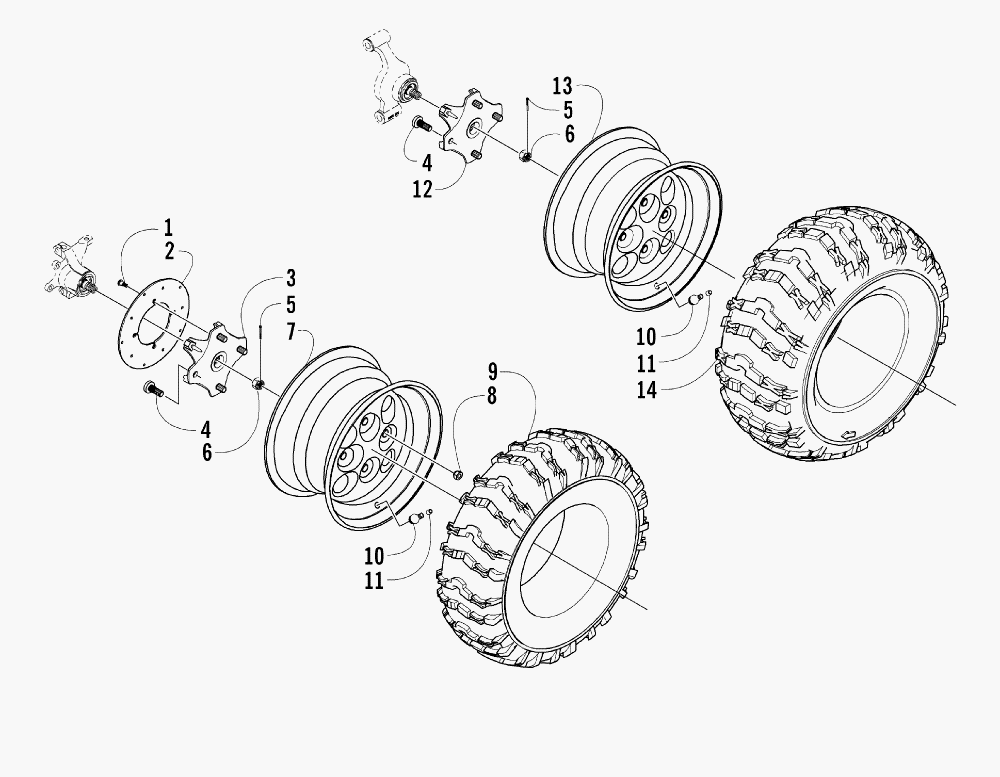

WHEEL AND TIRE ASSEMBLY для Arctic Cat 400 4 X 4 VP MAN (GREEN) [A2005ATH4AUSG] - 2005 года выпуска
-
№АртикулНазвание
-
10423-029 SCREW, MACHINESCREW, MACHINE
-
21402-225 DISC, BRAKEDISC, BRAKE
-
30502-599 HUB, WHEEL - FRONT (INC. 4)HUB, WHEEL - FRONT (INC. 4)
-
40402-974 ...STUD, WHEEL HUB...STUD, WHEEL HUB
-
50423-407 PIN, COTTERPIN, COTTER
-
60423-394 NUT, CASTLENUT, CASTLE
-
70402-856 WHEEL - FRONTWHEEL - FRONT
-
80423-408 NUT, MOUNTING - WHEELNUT, MOUNTING - WHEEL
-
91402-254 TIRE - FRONTTIRE - FRONT
-
100402-064 STEM, VALVE (INC. 11)STEM, VALVE (INC. 11)
-
110402-140 ...CAP, VALVE STEM...CAP, VALVE STEM
-
120502-601 HUB, WHEEL - REAR - LEFT (INC. 4)HUB, WHEEL - REAR - LEFT (INC. 4)
-
120502-599 HUB, WHEEL - REAR - RIGHT (INC. 4)HUB, WHEEL - REAR - RIGHT (INC. 4)
-
130402-989 WHEEL - REARWHEEL - REAR
-
141402-255 TIRE - REARTIRE - REAR
