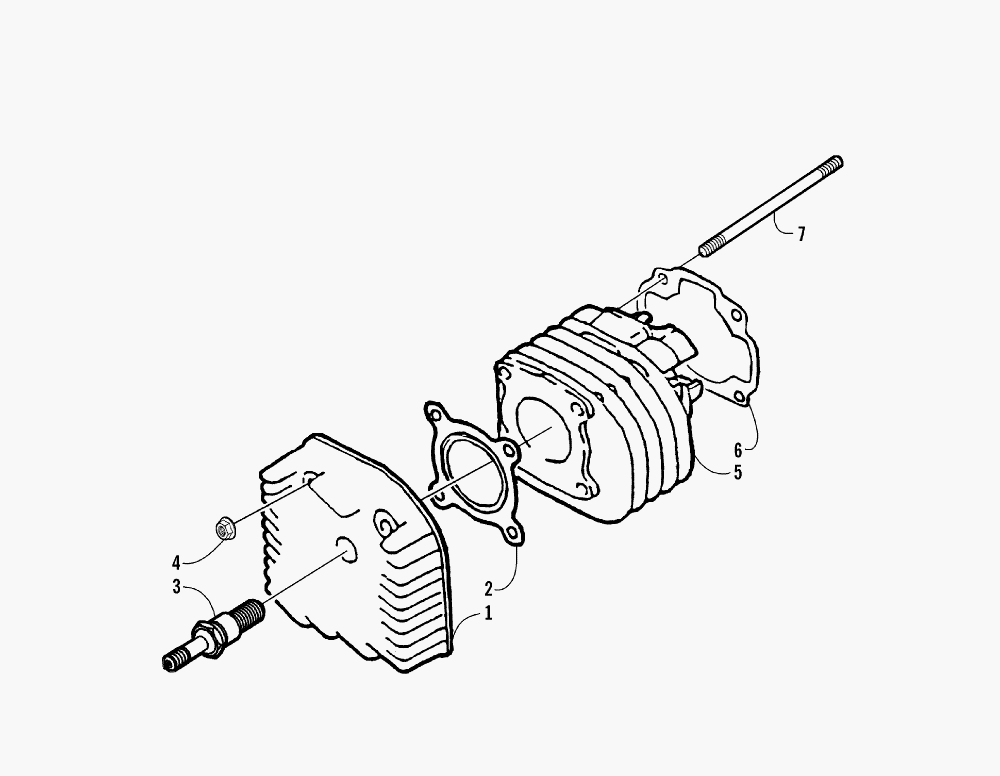

CYLINDER AND HEAD ASSEMBLY для Arctic Cat 50 Y-6 YOUTH - UTILITY (GREEN) [A2005H2A2BUSZ] - 2005 года выпуска
-
№АртикулНазвание
-
-3301-891 ENGINE,COMPLETE-HC 50 2-STROKEENGINE,COMPLETE-HC 50 2-STROKE
-
13301-534 CYLINDER HEADCYLINDER HEAD
-
23301-535 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
30217-716 PLUG, SPARKPLUG, SPARK
-
43301-329 NUT, FLANGENUT, FLANGE
-
53301-532 CYLINDERCYLINDER
-
63301-533 GASKET, CYLINDERGASKET, CYLINDER
-
73301-523 BOLT, STUDBOLT, STUD
Все узлы модели:
- A-ARM- FLOOR PANEL- AND BUMPER ASSEMBLY
- BODY AND SEAT ASSEMBLY
- BRAKELIGHT AND FLAG ASSEMBLIES
- CARBURETOR ASSEMBLY
- CLUTCH ASSEMBLY
- CRANKCASE ASSEMBLY
- CRANKSHAFT AND PISTON ASSEMBLY
- • CYLINDER AND HEAD ASSEMBLY
- DECALS
- ELECTRICAL
- EXHAUST ASSEMBLY
- FAN AND AIR SHROUD ASSEMBLY
- FRAME AND RELATED PARTS
- FRONT BRAKE ASSEMBLY
- GAS TANK AND OIL TANK ASSEMBLIES
- HANDLEBAR ASSEMBLY
- MAGNETO AND STARTER MOTOR ASSEMBLY
- OIL PUMP ASSEMBLY
- REAR BRAKE ASSEMBLY
- REAR DRIVE ASSEMBLY
- REED VALVE AND AIR CLEANER ASSEMBLY
- STARTER ASSEMBLY
- STEERING ASSEMBLY
- TRANSMISSION ASSEMBLY
- WHEEL- TIRE- AND SUSPENSION ASSEMBLY
