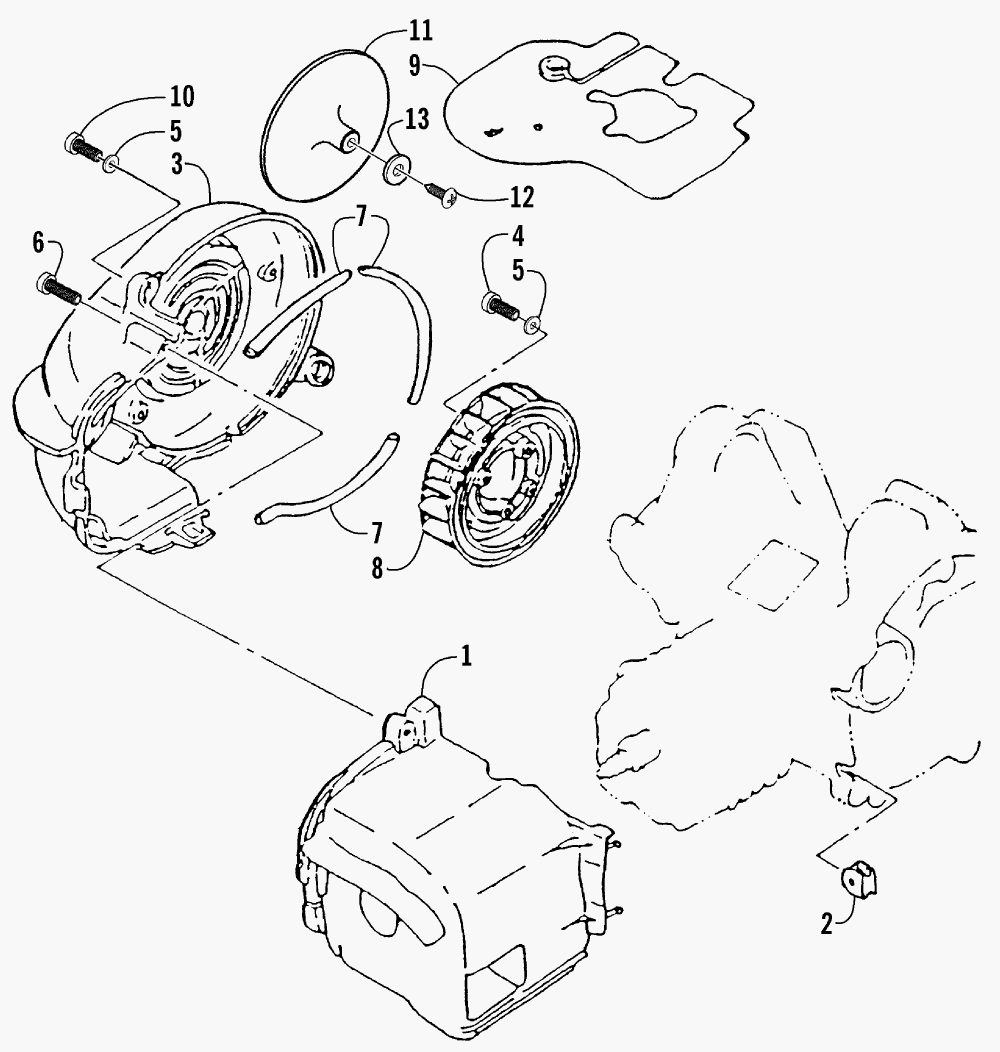

FAN AND AIR SHROUD ASSEMBLY для Arctic Cat 50 Y-6 YOUTH - UTILITY (GREEN) [A2005H2A2BUSZ] - 2005 года выпуска
-
№АртикулНазвание
-
13301-591 AIR SHROUD, CYLINDERAIR SHROUD, CYLINDER
-
23301-268 GROMMETGROMMET
-
33301-094 COVER, MAGNETOCOVER, MAGNETO
-
43301-288 SCREW, CAPSCREW, CAP
-
53301-336 WASHERWASHER
-
63301-324 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
73301-082 DAMPERDAMPER
-
83301-093 FANFAN
-
93301-247 DEFLECTORDEFLECTOR
-
103301-289 SCREW, CAPSCREW, CAP
-
113301-095 COVER, MAGNETO - OUTERCOVER, MAGNETO - OUTER
-
123301-322 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
133301-339 WASHERWASHER
