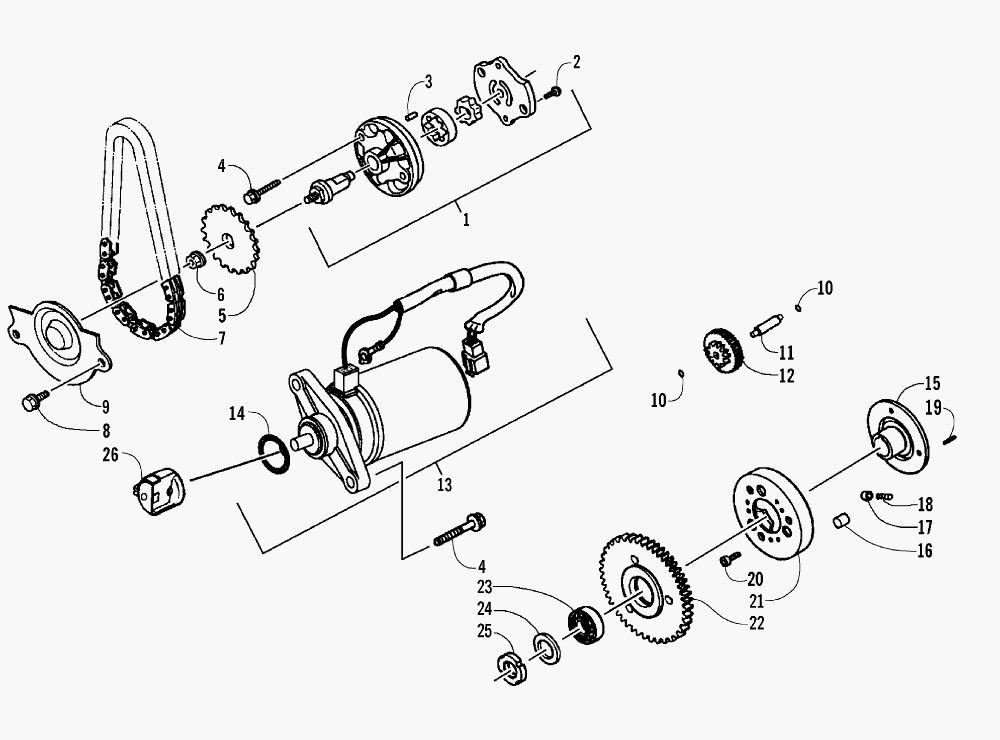

STARTER MOTOR AND OIL PUMP ASSEMBLIES для Arctic Cat 90 Y-12 YOUTH - UTILITY (RED) [A2006KUB2BUSR] - 2006 года выпуска
-
№АртикулНазвание
-
13303-045 PUMP, OIL - ASSEMBLY (INC. 2-3)PUMP, OIL - ASSEMBLY (INC. 2-3)
-
23304-426 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
33304-144 ...PIN, DOWEL...PIN, DOWEL
-
43303-384 BOLT, FLANGEBOLT, FLANGE
-
53303-046 SPROCKETSPROCKET
-
63303-331 NUT, FLANGENUT, FLANGE
-
73303-047 CHAIN, OIL PUMPCHAIN, OIL PUMP
-
83303-381 BOLT, FLANGEBOLT, FLANGE
-
93303-051 SEPARATOR, OILSEPARATOR, OIL
-
103303-282 WASHERWASHER
-
113303-110 SHAFT, STARTER REDUCTIONSHAFT, STARTER REDUCTION
-
123303-109 GEAR, STARTER REDUCTIONGEAR, STARTER REDUCTION
-
133304-639 MOTOR, STARTER - ASSEMBLYMOTOR, STARTER - ASSEMBLY
-
143303-130 HOLDER, STARTERHOLDER, STARTER
-
153303-115 BOSS, STARTER CLUTCHBOSS, STARTER CLUTCH
-
163303-293 ROLLERROLLER
-
173303-114 ROLLER, STARTERROLLER, STARTER
-
183303-113 SPRING, ROLLER - OUTER CLUTCHSPRING, ROLLER - OUTER CLUTCH
-
193303-395 ROLLERROLLER
-
203303-396 BOLTBOLT
-
213303-112 CLUTCH, OUTERCLUTCH, OUTER
-
223303-111 GEAR, STARTERGEAR, STARTER
-
233303-292 BEARING, BALLBEARING, BALL
-
243303-285 CIRCLIPCIRCLIP
-
253303-258 NUTNUT
