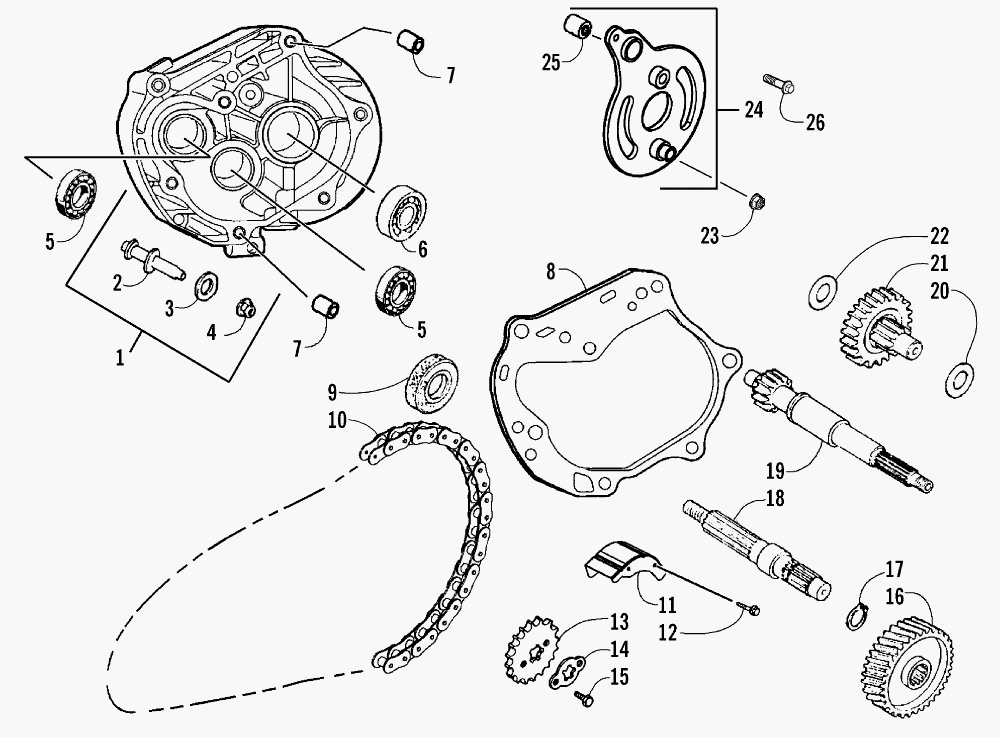

TRANSMISSION ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (RED) [A2006KUB2BUSR] - 2006 года выпуска
-
№АртикулНазвание
-
13303-080 CASE, TRANSMISSION - SET (INC. 2-6)CASE, TRANSMISSION - SET (INC. 2-6)
-
23304-606 ...BOLT, ENGINE BRAKE...BOLT, ENGINE BRAKE
-
33303-462 ...O-RING...O-RING
-
43303-270 ...NUT, FLANGE...NUT, FLANGE
-
53303-596 ...BEARING, BALL...BEARING, BALL
-
63303-458 ...BEARING, BALL...BEARING, BALL
-
73303-343 PIN, DOWELPIN, DOWEL
-
83303-081 GASKET, TRANSMISSION CASE AGASKET, TRANSMISSION CASE A
-
93303-300 SEAL, OILSEAL, OIL
-
103303-425 CHAIN, DRIVECHAIN, DRIVE
-
113303-144 COVER, CHAINCOVER, CHAIN
-
123304-610 BOLT, FLANGEBOLT, FLANGE
-
133304-609 SPROCKET, DRIVESPROCKET, DRIVE
-
143303-108 PLATEPLATE
-
153303-307 BOLTBOLT
-
163303-106 GEAR, FINALGEAR, FINAL
-
173303-344 CIRCLIPCIRCLIP
-
183303-105 SHAFT, FINALSHAFT, FINAL
-
193303-103 DRIVESHAFTDRIVESHAFT
-
203303-275 WASHERWASHER
-
213303-104 COUNTERSHAFT - ASSEMBLYCOUNTERSHAFT - ASSEMBLY
-
223303-273 WASHERWASHER
-
233303-268 NUT, FLANGENUT, FLANGE
-
243304-608 BRACKET, ENGINE HANGER - ASSEMBLY (INC. 25)BRACKET, ENGINE HANGER - ASSEMBLY (INC. 25)
-
253303-403 ...BUSHING, RUBBER...BUSHING, RUBBER
-
263304-607 BOLT, FLANGEBOLT, FLANGE
