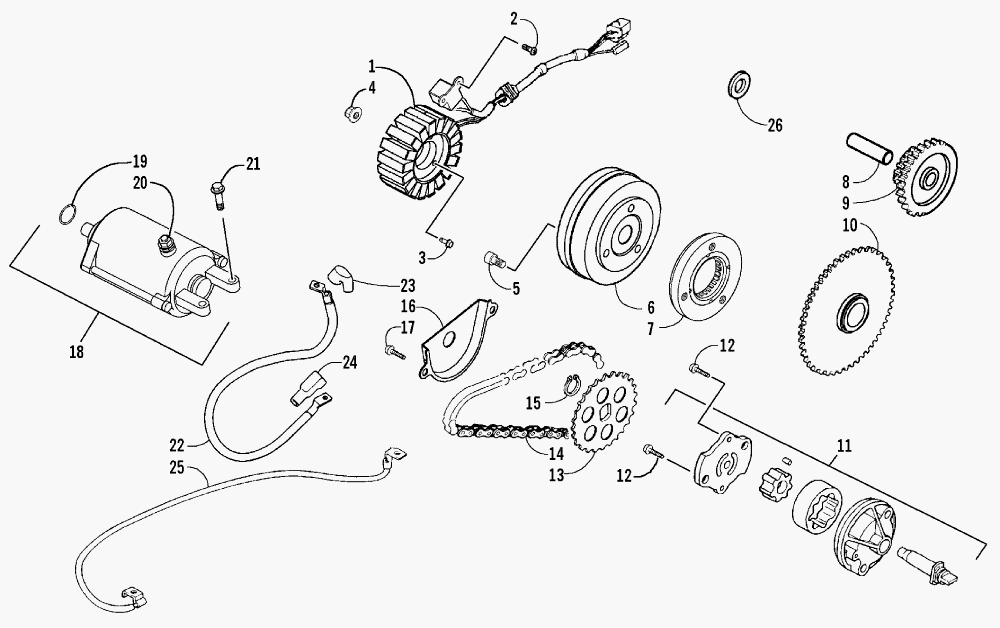

STARTER MOTOR AND MAGNETO ASSEMBLY для Arctic Cat DVX 250 (BLACK/RED) [A2006KSE2BUSD] - 2006 года выпуска
-
№АртикулНазвание
-
13304-682 STATORSTATOR
-
23304-118 SCREWSCREW
-
33304-111 BOLT, FLANGEBOLT, FLANGE
-
43304-024 NUTNUT
-
53304-208 BOLT, SOCKETBOLT, SOCKET
-
63303-832 FLYWHEELFLYWHEEL
-
73303-827 CLUTCH, ONE-WAYCLUTCH, ONE-WAY
-
83303-825 SHAFT, STARTER REDUCTIONSHAFT, STARTER REDUCTION
-
93303-824 GEAR, STARTER REDUCTIONGEAR, STARTER REDUCTION
-
103303-826 GEAR, STARTERGEAR, STARTER
-
113303-687 PUMP, OILPUMP, OIL
-
123303-385 SCREW, CAPSCREW, CAP
-
133303-688 SPROCKET, DRIVE - OIL PUMPSPROCKET, DRIVE - OIL PUMP
-
143303-690 CHAIN, OIL PUMPCHAIN, OIL PUMP
-
153304-146 CIRCLIPCIRCLIP
-
163303-697 SEPARATOR, OILSEPARATOR, OIL
-
173303-381 SCREW, CAPSCREW, CAP
-
183304-274 MOTOR, STARTER (INC. 19-20)MOTOR, STARTER (INC. 19-20)
-
193304-104 ...O-RING...O-RING
-
203304-011 ...NUT W/WASHER...NUT W/WASHER
-
213303-243 SCREW, CAPSCREW, CAP
-
223304-277 CABLE, STARTER MOTOR (INC. 23-24)CABLE, STARTER MOTOR (INC. 23-24)
-
233305-251 ...BOOT, STARTER MOTOR TERMINAL...BOOT, STARTER MOTOR TERMINAL
-
243305-252 ...BOOT, STARTER SOLENOID...BOOT, STARTER SOLENOID
-
253304-279 CABLE, GROUNDCABLE, GROUND
-
263304-036 WASHER, THRUSTWASHER, THRUST
