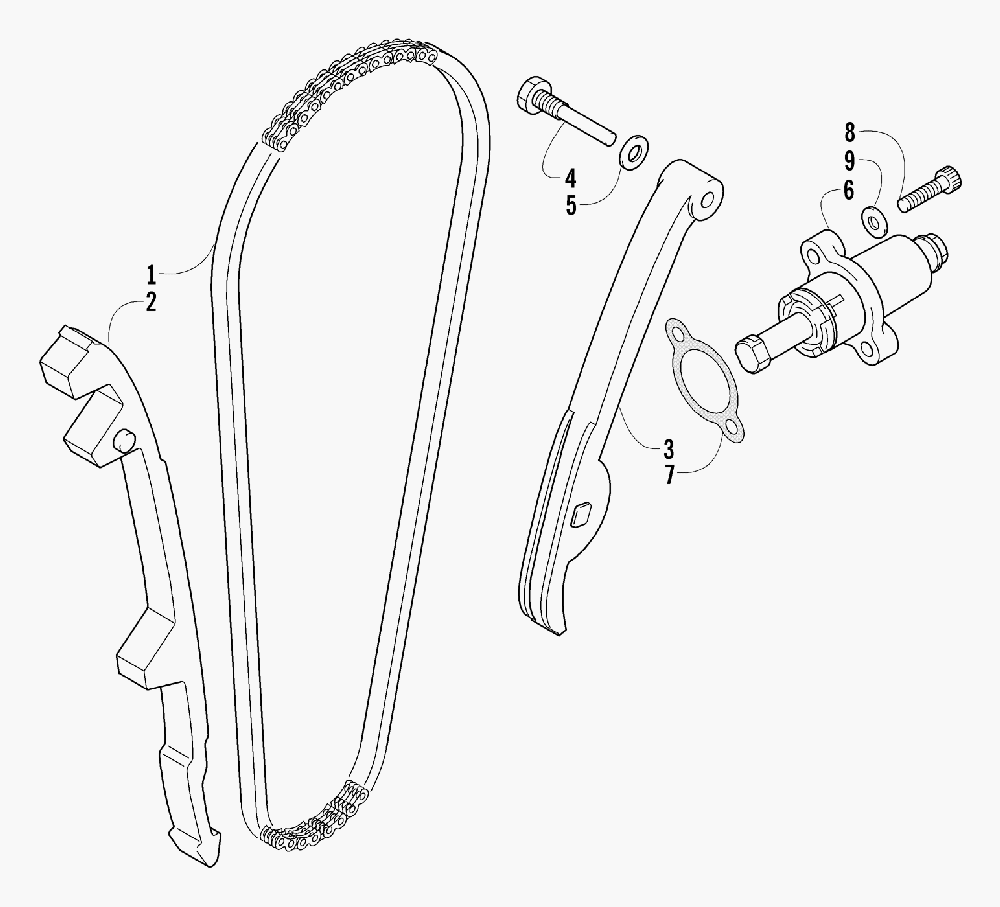

CAM CHAIN ASSEMBLY для Arctic Cat 500 FIS MAN (ARCTIC CAT GREEN) [A2007IBM4AUSZ] - 2007 года выпуска
-
№АртикулНазвание
-
13402-353 CHAIN, CAMCHAIN, CAM
-
23402-355 GUIDE, CHAINGUIDE, CHAIN
-
33402-356 TENSIONER, CHAINTENSIONER, CHAIN
-
43423-074 BOLT, CAMSHAFT CHAIN TENSIONERBOLT, CAMSHAFT CHAIN TENSIONER
-
53402-436 WASHERWASHER
-
63402-136 ADJUSTER, TENSIONER - ASSEMBLYADJUSTER, TENSIONER - ASSEMBLY
-
73402-137 GASKETGASKET
-
83004-475 BOLT (6X25)BOLT (6X25)
-
93003-290 GASKET (6MM)GASKET (6MM)
