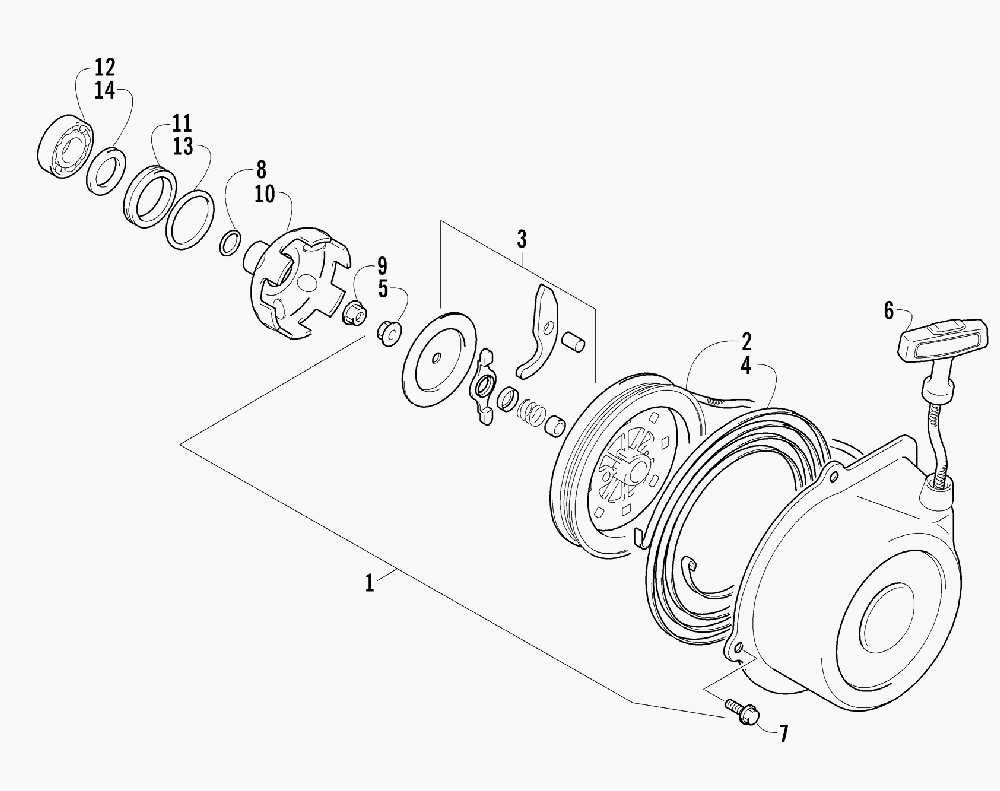

RECOIL STARTER ASSEMBLY для Arctic Cat 500 FIS MAN (ARCTIC CAT GREEN) [A2007IBM4AUSZ] - 2007 года выпуска
-
№АртикулНазвание
-
13445-003 STARTER, RECOIL - ASSEMBLY (INC. 2-6)STARTER, RECOIL - ASSEMBLY (INC. 2-6)
-
23445-004 ...REEL...REEL
-
33445-016 ...RATCHET SET...RATCHET SET
-
43445-007 ...SPRING, SPIRAL...SPRING, SPIRAL
-
53004-488 ...NUT (6MM)...NUT (6MM)
-
63445-011 ...ROPE ASSEMBLY...ROPE ASSEMBLY
-
73423-428 BOLTBOLT
-
83423-053 O-RINGO-RING
-
93004-491 NUT (10MM)NUT (10MM)
-
103445-029 CUP, STARTERCUP, STARTER
-
113423-542 SPACERSPACER
-
123402-051 BEARINGBEARING
-
133423-063 O-RINGO-RING
-
143402-070 SEAL, OIL (M25X36X6)SEAL, OIL (M25X36X6)
