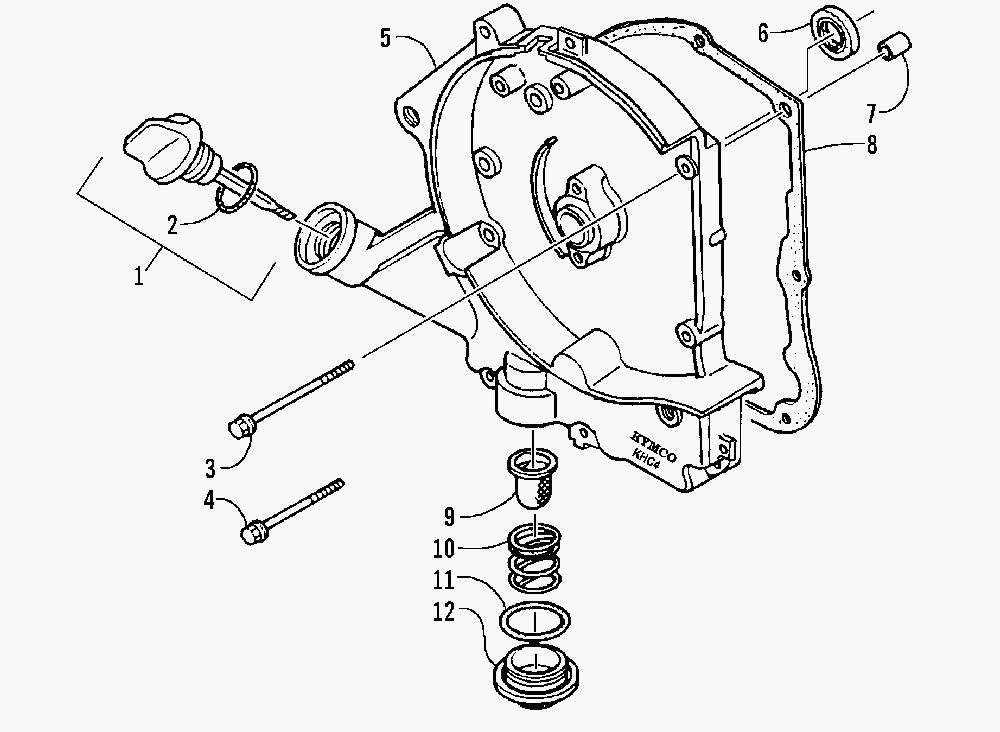

CRANKCASE COVER ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - DVX (ARCTIC CAT GREEN) [A2007KSB2BUSZ] - 2007 года выпуска
-
№АртикулНазвание
-
13303-050 GAUGE, OIL LEVEL - ASSEMBLY (INC. 2)GAUGE, OIL LEVEL - ASSEMBLY (INC. 2)
-
23304-102 ...O-RING...O-RING
-
33303-390 BOLT, FLANGEBOLT, FLANGE
-
43304-580 BOLT, FLANGEBOLT, FLANGE
-
53303-007 COVER, CRANKCASE (INC. 6)COVER, CRANKCASE (INC. 6)
-
63303-296 ...SEAL, OIL...SEAL, OIL
-
73303-341 PIN, DOWELPIN, DOWEL
-
83303-012 GASKET, CRANKCASEGASKET, CRANKCASE
-
93303-048 SCREEN, OIL FILTERSCREEN, OIL FILTER
-
103303-049 SPRING, OIL FILTER SCREENSPRING, OIL FILTER SCREEN
-
113304-096 O-RINGO-RING
-
123303-021 CAP, OIL FILTERCAP, OIL FILTER
