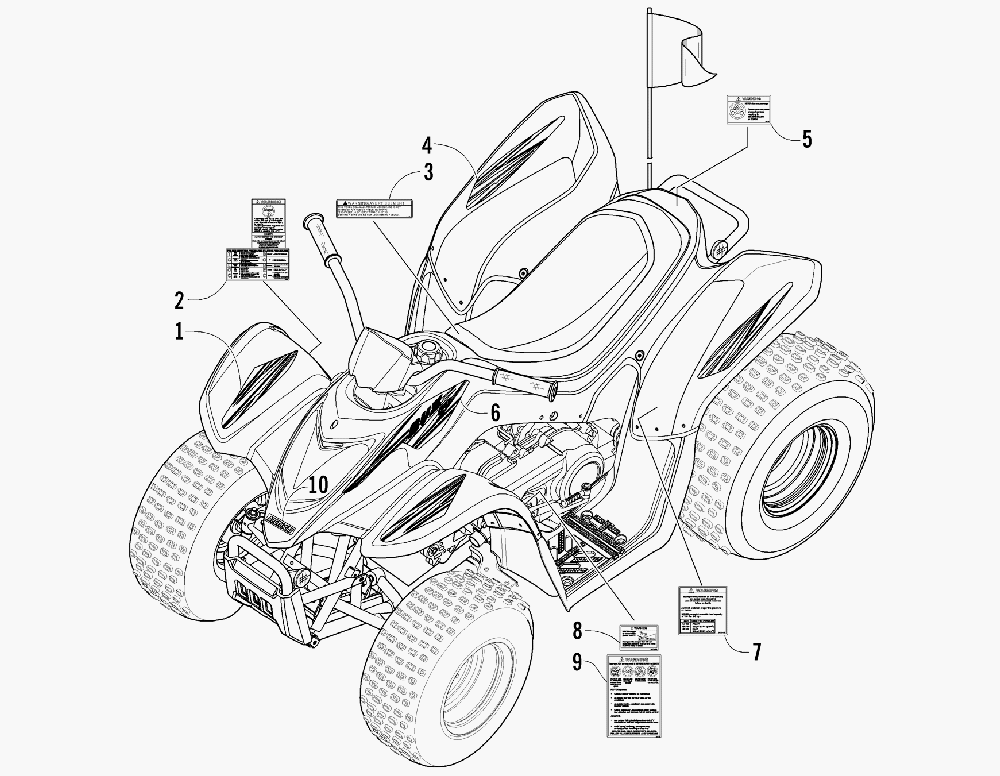

DECALS для Arctic Cat 90 Y-12 YOUTH - DVX (ARCTIC CAT GREEN) [A2007KSB2BUSZ] - 2007 года выпуска
-
№АртикулНазвание
-
11411-410 DECAL, GRAPHIC - FRONT FENDER - RIGHT (RED)DECAL, GRAPHIC - FRONT FENDER - RIGHT (RED)
-
11411-412 DECAL, GRAPHIC - FRONT FENDER - LEFT (RED)DECAL, GRAPHIC - FRONT FENDER - LEFT (RED)
-
11411-411 DECAL, GRAPHIC - FRONT FENDER - RIGHT (CAT GREEN)DECAL, GRAPHIC - FRONT FENDER - RIGHT (CAT GREEN)
-
11411-413 DECAL, GRAPHIC - FRONT FENDER - LEFT (CAT GREEN)DECAL, GRAPHIC - FRONT FENDER - LEFT (CAT GREEN)
-
21411-230 DECAL, WARNING - REVERSE/PRE-RIDEDECAL, WARNING - REVERSE/PRE-RIDE
-
31411-574 DECAL, WARNING - NOT FOR HIGHWAYSDECAL, WARNING - NOT FOR HIGHWAYS
-
41411-406 DECAL, GRAPHIC - REAR FENDER - RIGHT (RED)DECAL, GRAPHIC - REAR FENDER - RIGHT (RED)
-
41411-408 DECAL, GRAPHIC - REAR FENDER - LEFT (RED)DECAL, GRAPHIC - REAR FENDER - LEFT (RED)
-
41411-407 DECAL, GRAPHIC - REAR FENDER - RIGHT (CAT GREEN)DECAL, GRAPHIC - REAR FENDER - RIGHT (CAT GREEN)
-
41411-409 DECAL, GRAPHIC - REAR FENDER - LEFT (CAT GREEN)DECAL, GRAPHIC - REAR FENDER - LEFT (CAT GREEN)
-
50411-435 DECAL, WARNING - PASSENGERDECAL, WARNING - PASSENGER
-
61411-420 DECAL, GRAPHIC - SIDE - RIGHT (RED)DECAL, GRAPHIC - SIDE - RIGHT (RED)
-
61411-421 DECAL, GRAPHIC - SIDE - LEFT (RED)DECAL, GRAPHIC - SIDE - LEFT (RED)
-
61411-422 DECAL, GRAPHIC - SIDE - RIGHT (CAT GREEN)DECAL, GRAPHIC - SIDE - RIGHT (CAT GREEN)
-
61411-423 DECAL, GRAPHIC - SIDE - LEFT (CAT GREEN)DECAL, GRAPHIC - SIDE - LEFT (CAT GREEN)
-
70411-455 DECAL, WARNING - TIRE/LOADDECAL, WARNING - TIRE/LOAD
-
80411-836 DECAL, WARNING - HILLDECAL, WARNING - HILL
-
90411-218 DECAL, WARNING - GENERALDECAL, WARNING - GENERAL
-
101411-067 DECAL, GRAPHIC - FRONT (RED)DECAL, GRAPHIC - FRONT (RED)
-
101411-118 DECAL, GRAPHIC - FRONT (CAT GREEN)DECAL, GRAPHIC - FRONT (CAT GREEN)
