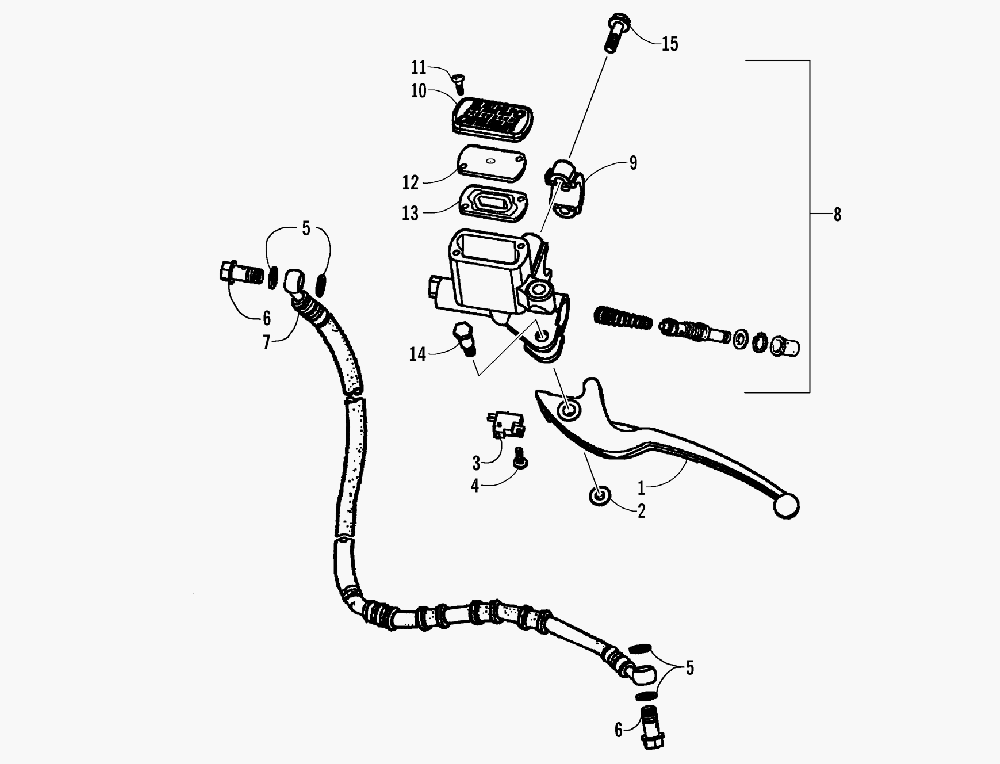

HYDRAULIC HAND BRAKE ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (RED ) [A2007KUB2BUSR] - 2007 года выпуска
-
№АртикулНазвание
-
13303-206 LEVERLEVER
-
23304-132 NUT, FLANGE (6MM, BLACK)NUT, FLANGE (6MM, BLACK)
-
33303-141 SWITCH ASSEMBLY STOPSWITCH ASSEMBLY STOP
-
43303-321 SCREW W/WASHER (4*12)SCREW W/WASHER (4*12)
-
53303-284 WASHER, CRUSHWASHER, CRUSH
-
63303-257 BOLT, BANJO-FITTING (10*22)BOLT, BANJO-FITTING (10*22)
-
73305-278 HOSE, BRAKE - ASSEMBLYHOSE, BRAKE - ASSEMBLY
-
83303-163 BRAKE, MASTER CYLINDER - ASSEMBLY (INC. 9-14)BRAKE, MASTER CYLINDER - ASSEMBLY (INC. 9-14)
-
93303-175 ...CLAMP, MASTER CYLINDER...CLAMP, MASTER CYLINDER
-
103303-174 ...CAP, MASTER CYLINDER...CAP, MASTER CYLINDER
-
113303-318 ...SCREW, FLAT-HEAD (4*12)...SCREW, FLAT-HEAD (4*12)
-
123305-250 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
133303-925 ...DIAPHRAGM...DIAPHRAGM
-
143303-254 ...BOLT, LEVER...BOLT, LEVER
-
153304-611 BOLT, FLANGE (6*20)BOLT, FLANGE (6*20)
