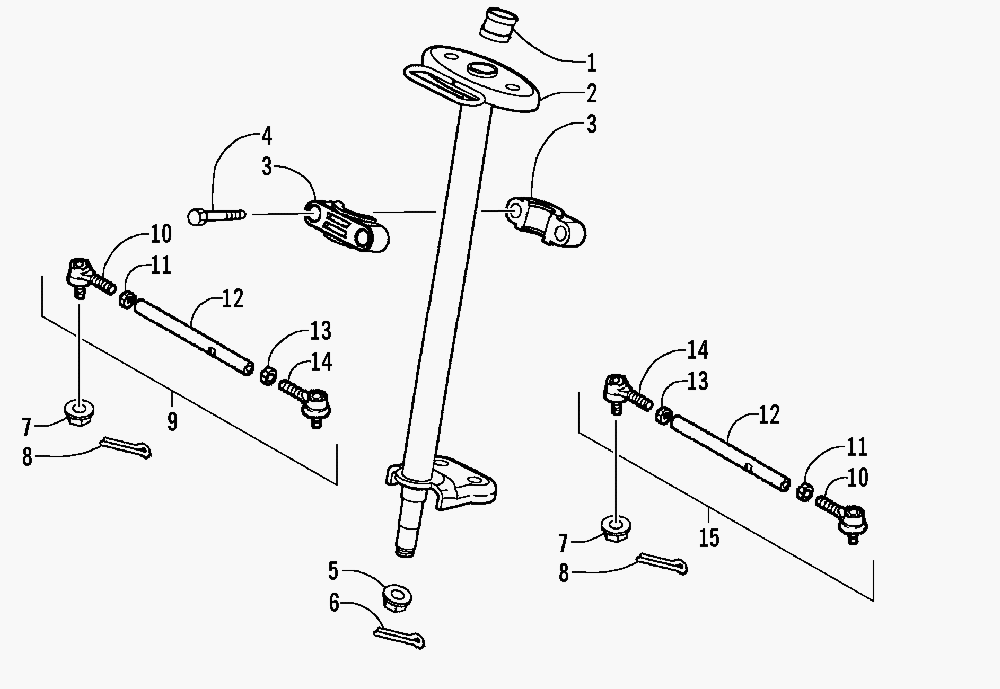

STEERING POST ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - UTILITY (RED ) [A2007KUB2BUSR] - 2007 года выпуска
-
№АртикулНазвание
-
13303-214 SLEEVE, STEERING POSTSLEEVE, STEERING POST
-
23303-573 POST, STEERINGPOST, STEERING
-
33303-213 HOLDER, STEERING POSTHOLDER, STEERING POST
-
43304-559 BOLT, FLANGE (8*65)BOLT, FLANGE (8*65)
-
53304-032 NUT, FLANGE (14MM)NUT, FLANGE (14MM)
-
63303-470 PIN, COTTERPIN, COTTER
-
73303-266 NUT, FLANGE (10MM)NUT, FLANGE (10MM)
-
83303-621 PIN, COTTER (2.5*20)PIN, COTTER (2.5*20)
-
93305-280 TIE ROD ASSEMBLY - RIGHT (INC. ONE NO. 10-14)TIE ROD ASSEMBLY - RIGHT (INC. ONE NO. 10-14)
-
103305-281 ...BALL JOINT, TIE ROD - RIGHT...BALL JOINT, TIE ROD - RIGHT
-
113303-326 ...NUT, HEX (10MM)...NUT, HEX (10MM)
-
123305-282 ...TIE ROD...TIE ROD
-
133303-327 ...NUT, HEX (10MM)...NUT, HEX (10MM)
-
143305-283 ...BALL JOINT, TIE ROD - LEFT...BALL JOINT, TIE ROD - LEFT
-
153305-284 TIE ROD ASSEMBLY - LEFT (INC. ONE NO. 10-14)TIE ROD ASSEMBLY - LEFT (INC. ONE NO. 10-14)
