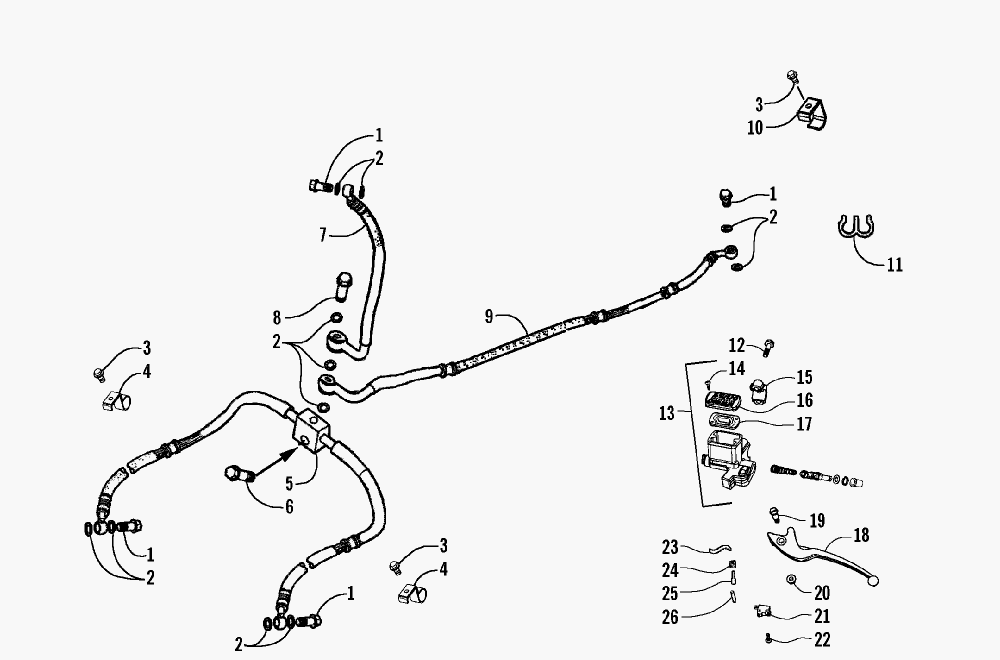

HYDRAULIC BRAKELINE AND HAND BRAKE ASSEMBLY для Arctic Cat DVX 250 (BLACK/RED) [A2007KSE2BUSD] - 2007 года выпуска
-
№АртикулНазвание
-
13303-257 BOLT, BANJO-FITTINGBOLT, BANJO-FITTING
-
23303-284 WASHER, CRUSHWASHER, CRUSH
-
33304-553 BOLT, FLANGEBOLT, FLANGE
-
43303-919 CLAMP, BRAKE HOSE - FRONTCLAMP, BRAKE HOSE - FRONT
-
53304-320 HOSE, BRAKE W/JUNCTION BLOCK - FRONTHOSE, BRAKE W/JUNCTION BLOCK - FRONT
-
63304-176 SCREW, CAPSCREW, CAP
-
73304-321 HOSE, BRAKE - ASSEMBLY - FRONTHOSE, BRAKE - ASSEMBLY - FRONT
-
83304-674 BOLT, BANJO FITTING - DOUBLEBOLT, BANJO FITTING - DOUBLE
-
93304-319 HOSE, BRAKE - ASSEMBLY - REARHOSE, BRAKE - ASSEMBLY - REAR
-
103303-891 CLAMP, BRAKE HOSE - REARCLAMP, BRAKE HOSE - REAR
-
113304-675 CLIP, HOSE - DOUBLECLIP, HOSE - DOUBLE
-
123304-189 SCREW, CAPSCREW, CAP
-
133304-676 MASTER CYLINDER - ASSEMBLY - REAR BRAKE (INC. 14-17)MASTER CYLINDER - ASSEMBLY - REAR BRAKE (INC. 14-17)
-
143303-318 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
153303-175 ...CLAMP, MASTER CYLINDER...CLAMP, MASTER CYLINDER
-
163303-923 ...COVER, MASTER CYLINDER...COVER, MASTER CYLINDER
-
173303-925 ...DIAPHRAGM, MASTER CYLINDER...DIAPHRAGM, MASTER CYLINDER
-
183303-956 LEVER, BRAKELEVER, BRAKE
-
193304-017 BOLT, BRAKE LEVERBOLT, BRAKE LEVER
-
203304-132 NUT, FLANGENUT, FLANGE
-
213303-141 SWITCH, BRAKESWITCH, BRAKE
-
223303-321 SCREW W/WASHERSCREW W/WASHER
-
233304-442 LOCK, BRAKE LEVERLOCK, BRAKE LEVER
-
243304-678 SPRING, RETURN - BRAKE LEVERSPRING, RETURN - BRAKE LEVER
-
253304-679 PIN - BRAKE LEVERPIN - BRAKE LEVER
-
263304-680 CLIP - BRAKE LEVERCLIP - BRAKE LEVER
