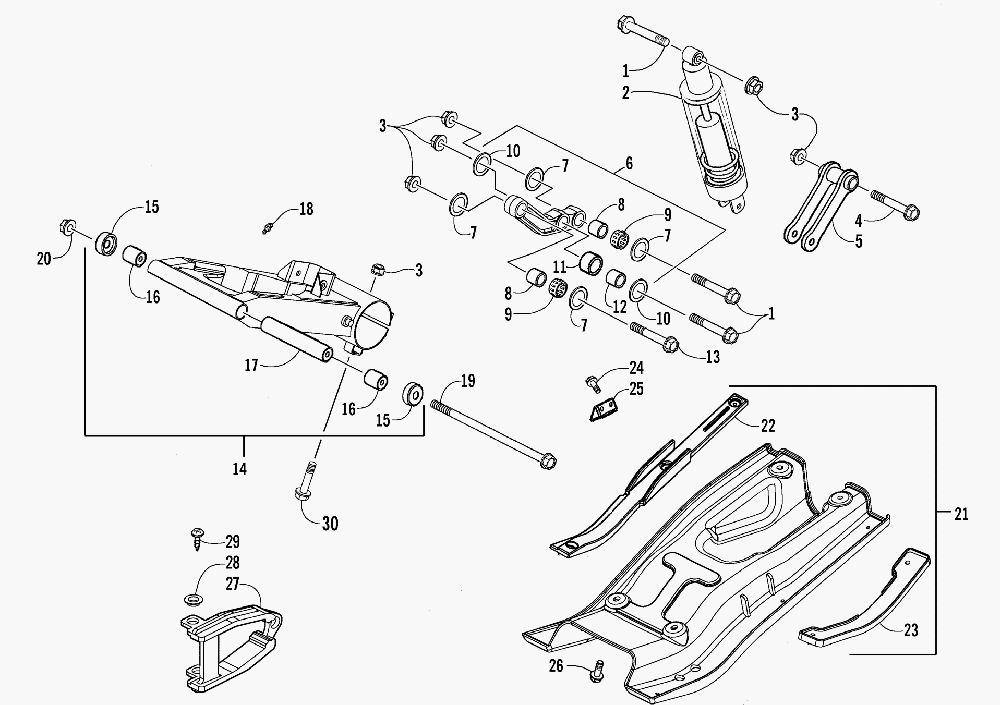

REAR SUSPENSION ASSEMBLY для Arctic Cat DVX 250 (BLACK/RED) [A2007KSE2BUSD] - 2007 года выпуска
-
№АртикулНазвание
-
13304-185 BOLT, FLANGEBOLT, FLANGE
-
23304-366 CUSHION ASSEMBLY - REARCUSHION ASSEMBLY - REAR
-
33304-031 NUTNUT
-
43304-183 BOLT, FLANGEBOLT, FLANGE
-
53304-365 LINK, CUSHION ASSEMBLYLINK, CUSHION ASSEMBLY
-
63304-363 ARM, CUSHION - ASSEMBLY (INC. 7-12)ARM, CUSHION - ASSEMBLY (INC. 7-12)
-
73304-459 ...SEAL, OIL...SEAL, OIL
-
83304-364 ...COLLAR...COLLAR
-
93304-421 ...BEARING...BEARING
-
103304-090 ...SEAL, OIL...SEAL, OIL
-
113304-372 ...SLEEVE, AXLE...SLEEVE, AXLE
-
123304-309 ...AXLE...AXLE
-
133304-436 BOLT, FLANGEBOLT, FLANGE
-
143304-357 FORK, REAR - ASSEMBLY (INC. 15-18)FORK, REAR - ASSEMBLY (INC. 15-18)
-
153303-192 ...SEAL, DUST...SEAL, DUST
-
163304-359 ...BUSHING...BUSHING
-
173304-358 ...AXLE, REAR FORK...AXLE, REAR FORK
-
183303-393 ...FITTING, GREASE...FITTING, GREASE
-
193303-150 BOLT, FLANGEBOLT, FLANGE
-
203304-411 NUTNUT
-
213304-290 PLATE, SKID - ASSEMBLY (INC. 22-23)PLATE, SKID - ASSEMBLY (INC. 22-23)
-
223304-287 ...SLIDE, CHAIN...SLIDE, CHAIN
-
233304-288 ...PROTECTOR, DISC...PROTECTOR, DISC
-
243304-405 SCREW, CAPSCREW, CAP
-
253304-289 BRACKET, CHAIN SLIDEBRACKET, CHAIN SLIDE
-
263304-587 BOLT W/WASHERBOLT W/WASHER
-
273304-361 SLIDE, CHAINSLIDE, CHAIN
-
283304-360 COLLARCOLLAR
-
293304-690 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
303304-437 BOLT, FLANGEBOLT, FLANGE
