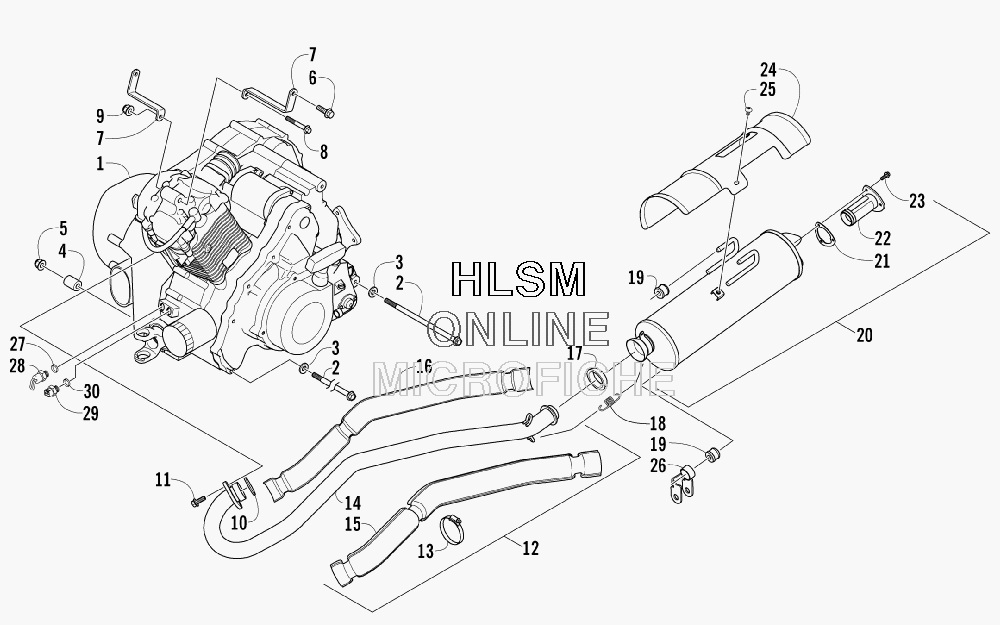

ENGINE AND EXHAUST для Arctic Cat 400 AUTO (RED) [A2008ICH4BUSR] - 2008 года выпуска
-
№АртикулНазвание
-
10462-036 ENGINEENGINE
-
20423-405 SCREW, CAPSCREW, CAP
-
30423-426 WASHER, ENGINEWASHER, ENGINE
-
40423-042 SPACER, ENGINESPACER, ENGINE
-
58428-002 NUT, LOCKNUT, LOCK
-
68408-816 SCREW, CAPSCREW, CAP
-
71506-626 BRACKET, ENGINE MOUNT - RIGHT (PAINTED BLACK)BRACKET, ENGINE MOUNT - RIGHT (PAINTED BLACK)
-
71506-625 BRACKET, ENGINE MOUNT - LEFT (PAINTED BLACK)BRACKET, ENGINE MOUNT - LEFT (PAINTED BLACK)
-
88408-860 SCREW, CAPSCREW, CAP
-
98424-802 NUTNUT
-
100412-007 SEAL, EXHAUSTSEAL, EXHAUST
-
118408-820 SCREW, CAPSCREW, CAP
-
120512-261 PIPE, EXHAUST - ASSEMBLY (INC. 13-16)PIPE, EXHAUST - ASSEMBLY (INC. 13-16)
-
130423-317 ...HOSE CLAMP...HOSE CLAMP
-
140512-242 ...PIPE, EXHAUST...PIPE, EXHAUST
-
150412-342 ...SHIELD, EXHAUST PIPE - OUTER...SHIELD, EXHAUST PIPE - OUTER
-
160412-341 ...SHIELD, EXHAUST PIPE - INNER...SHIELD, EXHAUST PIPE - INNER
-
170612-188 GASKET, EXHAUST - TAILPIPEGASKET, EXHAUST - TAILPIPE
-
180612-668 SPRING, EXTENSIONSPRING, EXTENSION
-
190412-215 BUSHING, EXHAUST PIPEBUSHING, EXHAUST PIPE
-
200512-306 MUFFLER - ASSEMBLY (INC. 21-23)MUFFLER - ASSEMBLY (INC. 21-23)
-
210412-313 ...GASKET, SPARK ARRESTER...GASKET, SPARK ARRESTER
-
220512-219 ...ARRESTER, SPARK - ASSEMBLY...ARRESTER, SPARK - ASSEMBLY
-
238408-616 ...SCREW, CAP...SCREW, CAP
-
240412-373 COVER, MUFFLERCOVER, MUFFLER
-
258477-610 SCREW, MACHINESCREW, MACHINE
-
261506-732 CHANNEL, MUFFLER SUPPORT (BLACK)CHANNEL, MUFFLER SUPPORT (BLACK)
-
273402-013 GASKETGASKET
-
283430-033 SWITCH, COOLING FANSWITCH, COOLING FAN
-
293530-037 SWITCH, OIL LIGHTSWITCH, OIL LIGHT
-
303402-556 GASKETGASKET
