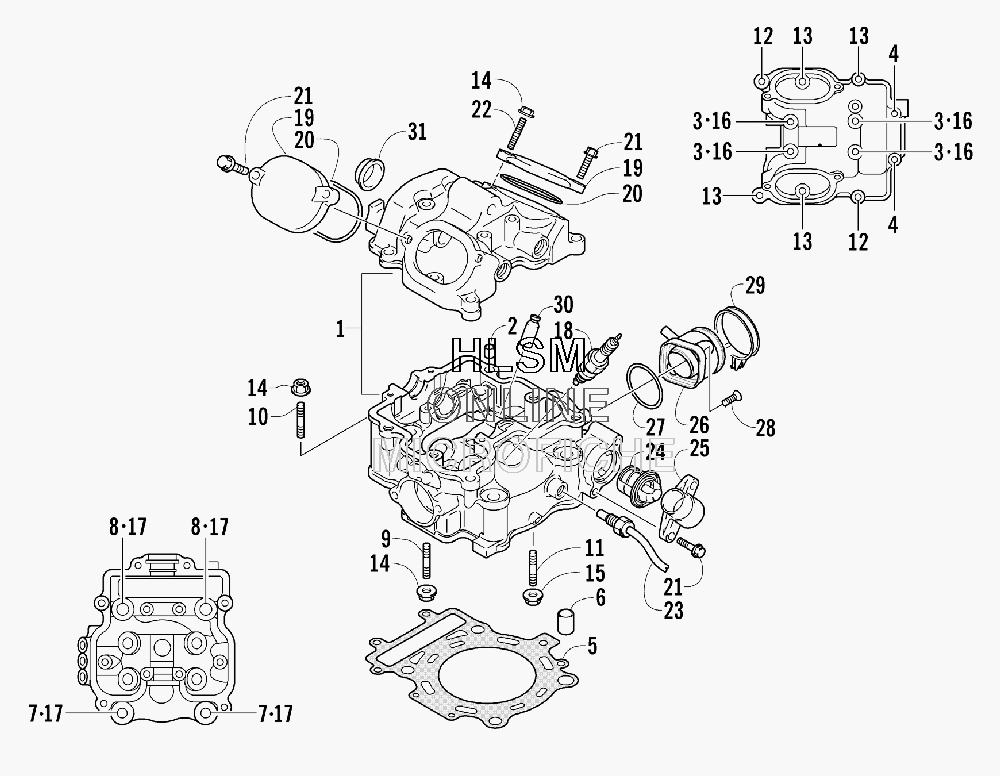

CYLINDER HEAD ASSEMBLY для Arctic Cat 500 MAN (RED) [A2008IBM4AUSR] - 2008 года выпуска
-
№АртикулНазвание
-
13402-098 HEAD, CYLINDER - ASSEMBLY (INC. 2-4)HEAD, CYLINDER - ASSEMBLY (INC. 2-4)
-
23423-043 ...PIN, DOWEL...PIN, DOWEL
-
33423-006 ...BOLT...BOLT
-
43007-395 ...BOLT...BOLT
-
53402-362 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
63423-088 PIN, DOWELPIN, DOWEL
-
73423-015 BOLTBOLT
-
83423-016 BOLTBOLT
-
93423-089 BOLT, STUDBOLT, STUD
-
103423-087 BOLT, STUDBOLT, STUD
-
113423-862 BOLT, STUDBOLT, STUD
-
123423-007 BOLTBOLT
-
133007-380 BOLTBOLT
-
143007-373 NUTNUT
-
153007-390 NUTNUT
-
163003-290 WASHERWASHER
-
173402-010 GASKETGASKET
-
180217-632 SPARK PLUG (NGK CR6E) (STD)SPARK PLUG (NGK CR6E) (STD)
-
180217-708 SPARK PLUG (NGK CR7E) (OPTIONAL)SPARK PLUG (NGK CR7E) (OPTIONAL)
-
180217-705 SPARK PLUG (NGK CR8E) (OPTIONAL)SPARK PLUG (NGK CR8E) (OPTIONAL)
-
193402-100 CAP, INSPECTIONCAP, INSPECTION
-
203402-101 O-RINGO-RING
-
213004-341 BOLTBOLT
-
223423-383 BOLT, STUDBOLT, STUD
-
233530-045 SWITCH, WATER TEMPERATURESWITCH, WATER TEMPERATURE
-
243413-012 THERMOSTATTHERMOSTAT
-
253413-004 COVER, THERMOSTATCOVER, THERMOSTAT
-
260570-091 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
270470-531 O-RINGO-RING
-
288476-620 SCREW, MACHINESCREW, MACHINE
-
290423-317 CLAMPCLAMP
-
303402-099 GUIDE, VALVEGUIDE, VALVE
-
313402-035 PLUG, HEADPLUG, HEAD
-
**3402-048 PLUG, FROSTPLUG, FROST
