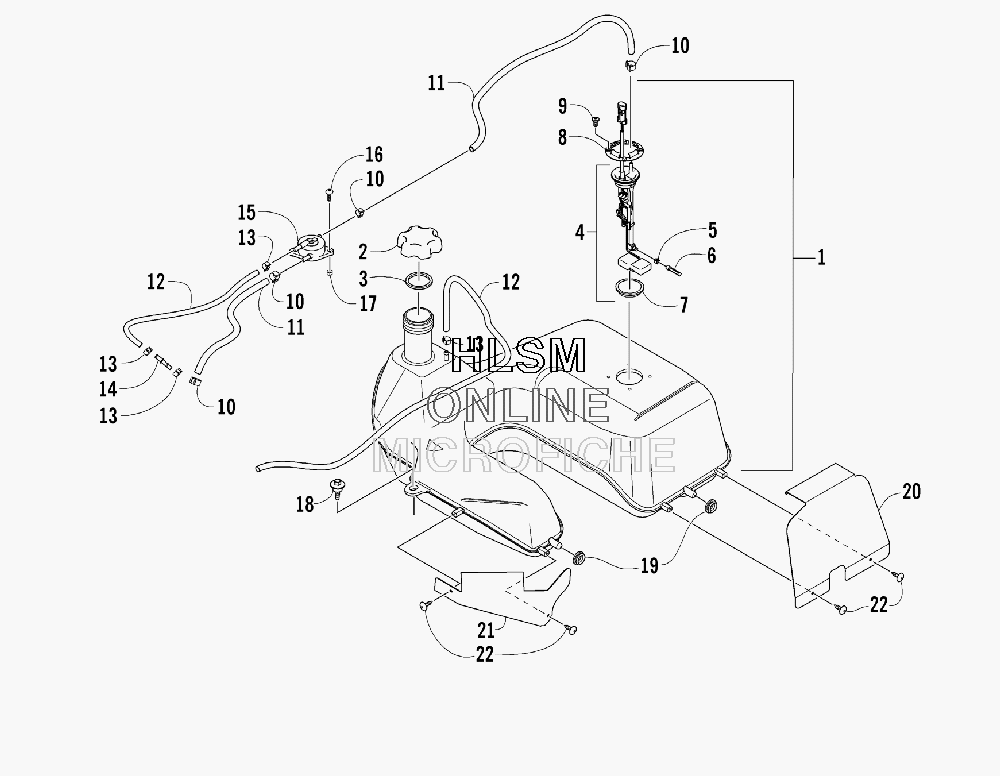

GAS TANK ASSEMBLY для Arctic Cat 500 MAN (RED) [A2008IBM4AUSR] - 2008 года выпуска
-
№АртикулНазвание
-
10570-183 TANK, GAS - ASSEMBLY (INC. 2-9)TANK, GAS - ASSEMBLY (INC. 2-9)
-
20470-438 ...CAP, GAS TANK (INC. 3)...CAP, GAS TANK (INC. 3)
-
30109-733 ......GASKET, GAS TANK CAP......GASKET, GAS TANK CAP
-
40570-141 ...SENSOR, FUEL LEVEL (INC. 5-7)...SENSOR, FUEL LEVEL (INC. 5-7)
-
50423-603 ......CLAMP, HOSE......CLAMP, HOSE
-
60470-475 ......FILTER, FUEL......FILTER, FUEL
-
70470-521 ......SEAL, FUEL LEVEL SENSOR......SEAL, FUEL LEVEL SENSOR
-
80470-639 ...PLATE, MOUNTING - FUEL LEVEL SENSOR...PLATE, MOUNTING - FUEL LEVEL SENSOR
-
91623-158 ...SCREW, PLASTITE (BLACK)...SCREW, PLASTITE (BLACK)
-
100423-688 CLAMP, HOSECLAMP, HOSE
-
110410-143 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
120410-070 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
130423-689 CLAMP, HOSECLAMP, HOSE
-
140470-702 FITTING, STRAIGHTFITTING, STRAIGHT
-
150470-758 PUMP, FUELPUMP, FUEL
-
168476-620 SCREW, MACHINESCREW, MACHINE
-
170623-038 NUT, LOCKNUT, LOCK
-
180423-732 SCREW, GAS TANKSCREW, GAS TANK
-
190423-460 GROMMETGROMMET
-
200470-710 SHIELD, GAS TANK - REARSHIELD, GAS TANK - REAR
-
210470-709 SHIELD, GAS TANK - FRONTSHIELD, GAS TANK - FRONT
-
220623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
