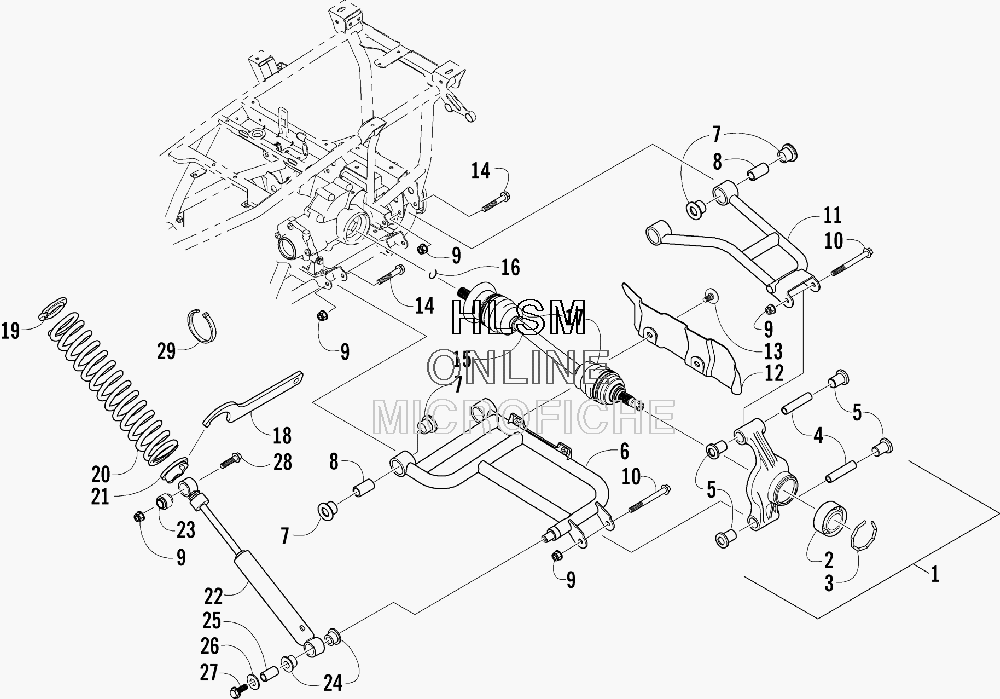

REAR SUSPENSION ASSEMBLY для Arctic Cat 650 H1 (RED) [A2008IBS4BUSR] - 2008 года выпуска
-
№АртикулНазвание
-
10504-372 KNUCKLE, RIGHT REAR - ASSEMBLY (INC. 2-5)KNUCKLE, RIGHT REAR - ASSEMBLY (INC. 2-5)
-
10504-373 KNUCKLE, LEFT REAR - ASSEMBLY (INC. 2-5)KNUCKLE, LEFT REAR - ASSEMBLY (INC. 2-5)
-
21402-027 ...BEARING, WHEEL HUB...BEARING, WHEEL HUB
-
30423-423 ...RING, RETAINING...RING, RETAINING
-
40403-038 ...COLLAR, SUSPENSION BUSHING...COLLAR, SUSPENSION BUSHING
-
50403-032 ...BUSHING, SUSPENSION...BUSHING, SUSPENSION
-
60504-440 A-ARM, REAR - LOWER RIGHT - PLATINUM (INC. 7-8)A-ARM, REAR - LOWER RIGHT - PLATINUM (INC. 7-8)
-
60504-441 A-ARM, REAR - LOWER LEFT - PLATINUM (INC. 7-8)A-ARM, REAR - LOWER LEFT - PLATINUM (INC. 7-8)
-
70403-115 ...BUSHING...BUSHING
-
80403-114 ...COLLAR...COLLAR
-
98428-002 NUT, LOCKNUT, LOCK
-
108409-000 SCREW, CAPSCREW, CAP
-
110504-476 A-ARM, REAR - UPPER RIGHT - PLATINUM (INC. 7-8)A-ARM, REAR - UPPER RIGHT - PLATINUM (INC. 7-8)
-
110504-477 A-ARM, REAR - UPPER LEFT - PLATINUM (INC. 7-8)A-ARM, REAR - UPPER LEFT - PLATINUM (INC. 7-8)
-
120441-754 GUARD, BOOT - RIGHT - RED (RED)GUARD, BOOT - RIGHT - RED (RED)
-
120441-755 GUARD, BOOT - LEFT - RED (RED)GUARD, BOOT - LEFT - RED (RED)
-
120441-758 GUARD, BOOT - RIGHT - CAT GREEN (CAT GREEN)GUARD, BOOT - RIGHT - CAT GREEN (CAT GREEN)
-
120441-759 GUARD, BOOT - LEFT - CAT GREEN (CAT GREEN)GUARD, BOOT - LEFT - CAT GREEN (CAT GREEN)
-
121406-068 GUARD, BOOT - RIGHT - BLACK (BLACK)GUARD, BOOT - RIGHT - BLACK (BLACK)
-
121406-069 GUARD, BOOT - LEFT - BLACK (BLACK)GUARD, BOOT - LEFT - BLACK (BLACK)
-
130423-545 SCREW, BODYSCREW, BODY
-
148409-075 SCREW, CAPSCREW, CAP
-
150502-811 HALFSHAFT, 565MM-27T (INC. 16-17)HALFSHAFT, 565MM-27T (INC. 16-17)
-
160441-893 ...CLIP, RETAINING...CLIP, RETAINING
-
170436-276 ...REPAIR KIT, BOOT - REAR AXLE...REPAIR KIT, BOOT - REAR AXLE
-
180441-587 WRENCH, SPANNER-66MMWRENCH, SPANNER-66MM
-
191603-889 RETAINER, SPRINGRETAINER, SPRING
-
200404-113 SPRING, SUSPENSION 150LB/IN X13.3 HT) - PLATINUMSPRING, SUSPENSION 150LB/IN X13.3 HT) - PLATINUM
-
210404-057 CAM, SPRING ADJUSTERCAM, SPRING ADJUSTER
-
220404-150 SHOCK ABSORBER - REAR (INC. 23-25)SHOCK ABSORBER - REAR (INC. 23-25)
-
230403-182 ...BUSHING, DOUBLE-BONDED...BUSHING, DOUBLE-BONDED
-
240603-955 ...BUSHING, SHOCK ABSORBER...BUSHING, SHOCK ABSORBER
-
251603-219 ...SLEEVE, SHOCK ABSORBER...SLEEVE, SHOCK ABSORBER
-
260423-087 WASHERWASHER
-
278408-820 SCREW, CAPSCREW, CAP
-
288409-040 SCREW, CAP - RIGHTSCREW, CAP - RIGHT
-
288409-050 SCREW, CAP - LEFTSCREW, CAP - LEFT
-
290123-788 CABLE TIECABLE TIE
