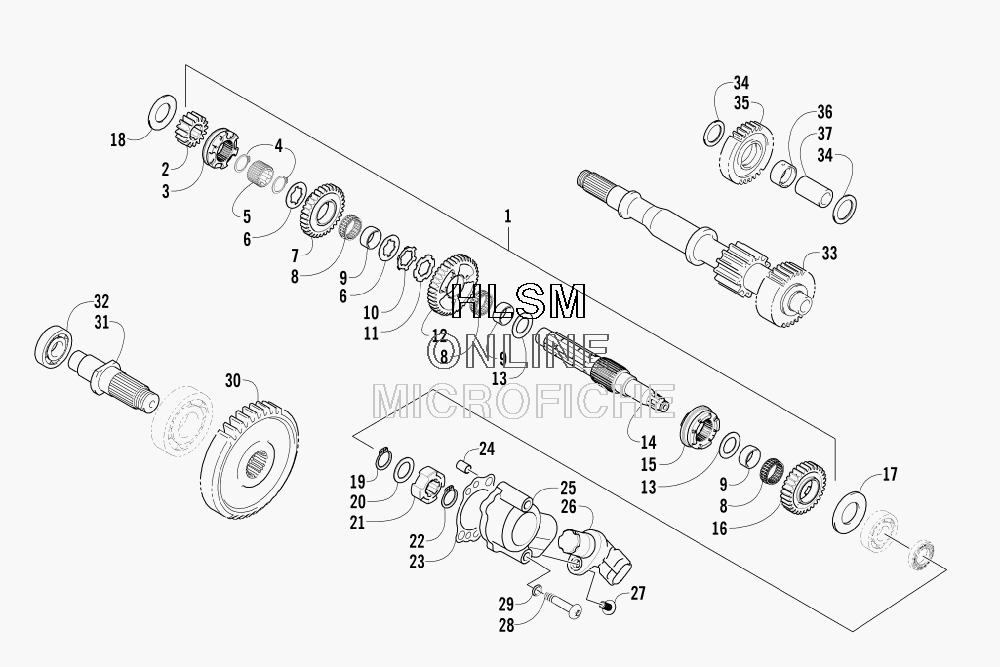

SECONDARY TRANSMISSION ASSEMBLY для Arctic Cat 650 H1 (RED) [A2008IBS4BUSR] - 2008 года выпуска
-
№АртикулНазвание
-
10822-091 COUNTERSHAFT ASSEMBLY (INC. 2-16)COUNTERSHAFT ASSEMBLY (INC. 2-16)
-
20822-008 ...GEAR, DRIVE...GEAR, DRIVE
-
30822-014 ...DOG, REVERSE DRIVEN GEAR...DOG, REVERSE DRIVEN GEAR
-
40831-011 ...CIRCLIP...CIRCLIP
-
50822-045 ...SPACER, REVERSE DRIVEN GEAR...SPACER, REVERSE DRIVEN GEAR
-
60828-008 ...WASHER...WASHER
-
70822-013 ...GEAR, REVERSE DRIVEN...GEAR, REVERSE DRIVEN
-
80832-011 ...BEARING...BEARING
-
90822-005 ...BUSHING...BUSHING
-
100828-014 ...WASHER, LOCK...WASHER, LOCK
-
110828-015 ...WASHER, LOCK...WASHER, LOCK
-
120822-004 ...GEAR, DRIVEN-LOW (40T)...GEAR, DRIVEN-LOW (40T)
-
130822-046 ...WASHER, DRIVEN GEAR...WASHER, DRIVEN GEAR
-
140822-003 ...COUNTERSHAFT...COUNTERSHAFT
-
150822-007 ...DOG, SLIDING...DOG, SLIDING
-
160822-006 ...GEAR, DRIVEN-HIGH (30T)...GEAR, DRIVEN-HIGH (30T)
-
170828-011 WASHER, DRIVE GEAR - LEFTWASHER, DRIVE GEAR - LEFT
-
180828-010 WASHER, DRIVE GEAR - RIGHTWASHER, DRIVE GEAR - RIGHT
-
190831-040 RING, RETAININGRING, RETAINING
-
200828-069 WASHER, THRUSTWASHER, THRUST
-
210822-050 TRIGGER, SPEEDOMETER SENSORTRIGGER, SPEEDOMETER SENSOR
-
220831-039 RING, RETAININGRING, RETAINING
-
230830-129 GASKETGASKET
-
240829-023 PIN, DOWELPIN, DOWEL
-
250822-049 HOUSING, SPEEDOMETER SENSORHOUSING, SPEEDOMETER SENSOR
-
260824-042 SENSOR, SPEEDOMETERSENSOR, SPEEDOMETER
-
278468-620 SCREW, MACH-TSPNH M6X1.0X20 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X20 CL8.8 BLK
-
288468-645 SCREW, MACH-TSPNH M6X1.0X45 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X45 CL8.8 BLK
-
290830-107 SEAL, FASTENERSEAL, FASTENER
-
300822-009 GEAR, DRIVEN-NO.2 (41T)GEAR, DRIVEN-NO.2 (41T)
-
310822-067 SHAFT, OUTPUTSHAFT, OUTPUT
-
320832-014 BEARINGBEARING
-
330822-001 DRIVESHAFTDRIVESHAFT
-
340828-016 WASHER, REVERSE IDLE GEARWASHER, REVERSE IDLE GEAR
-
350822-011 GEAR, REVERSE IDLEGEAR, REVERSE IDLE
-
360822-012 BUSHING, REVERSE IDLE GEARBUSHING, REVERSE IDLE GEAR
-
370822-015 SHAFT, REVERSE IDLESHAFT, REVERSE IDLE
