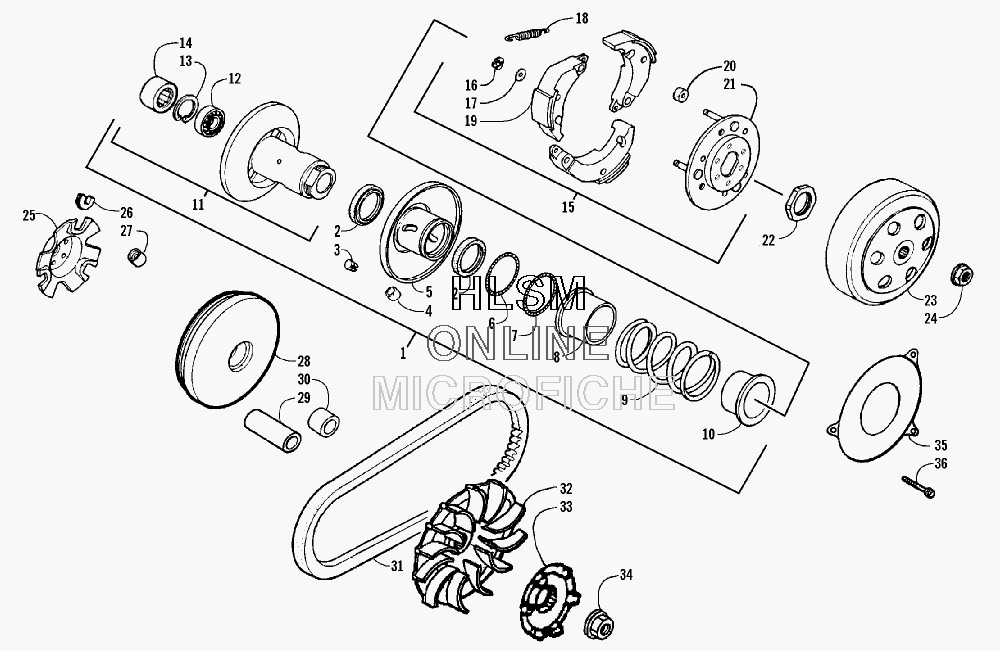

CLUTCH ASSEMBLIES для Arctic Cat 90 UTILITY (GREEN) [A2008KUB2BUSG] - 2008 года выпуска
-
№АртикулНазвание
-
13303-411 PULLEY, DRIVEN - ASSEMBLY (INC. 2-22)PULLEY, DRIVEN - ASSEMBLY (INC. 2-22)
-
23303-299 ...SEAL, OIL...SEAL, OIL
-
33303-098 ...GUIDE, PIN...GUIDE, PIN
-
43303-099 ...GUIDE, ROLLER...GUIDE, ROLLER
-
53303-097 ...FACE, DRIVEN - MOVABLE...FACE, DRIVEN - MOVABLE
-
63304-620 ...O-RING...O-RING
-
73304-619 ...O-RING...O-RING
-
83303-102 ...COLLAR, SPRING...COLLAR, SPRING
-
93303-100 ...SPRING, DRIVEN FACE...SPRING, DRIVEN FACE
-
103303-101 ...COLLAR, SEAL...COLLAR, SEAL
-
113303-096 ...FACE, DRIVEN - FIXED - ASSEMBLY (INC. 12-14)...FACE, DRIVEN - FIXED - ASSEMBLY (INC. 12-14)
-
123303-291 ...... BEARING, BALL...... BEARING, BALL
-
133303-346 ...... CIRCLIP...... CIRCLIP
-
143303-294 ...... BEARING, NEEDLE...... BEARING, NEEDLE
-
153303-090 ...CLUTCH, CENTRIFUGAL - ASSEMBLY (INC. 16-21)...CLUTCH, CENTRIFUGAL - ASSEMBLY (INC. 16-21)
-
163304-618 ...... E-RING...... E-RING
-
173303-274 ...... WASHER, THRUST...... WASHER, THRUST
-
183303-092 ...... SPRING, CLUTCH...... SPRING, CLUTCH
-
193303-093 ...... WEIGHT, CLUTCH...... WEIGHT, CLUTCH
-
203303-094 ...... RUBBER, CLUTCH DAMPER...... RUBBER, CLUTCH DAMPER
-
213303-091 ...... PLATE, DRIVE CLUTCH...... PLATE, DRIVE CLUTCH
-
223304-025 ...NUT...NUT
-
233303-082 CLUTCH, OUTERCLUTCH, OUTER
-
243303-333 NUT, FLANGENUT, FLANGE
-
253303-088 PLATE, RAMPPLATE, RAMP
-
263303-089 SLIDESLIDE
-
273303-087 GUIDE, ROLLERGUIDE, ROLLER
-
283303-086 FACE, DRIVE - MOVABLEFACE, DRIVE - MOVABLE
-
293303-409 BOSS, DRIVE FACEBOSS, DRIVE FACE
-
303303-410 COLLAR, DRIVE FACECOLLAR, DRIVE FACE
-
313303-095 BELT, DRIVEBELT, DRIVE
-
323303-083 FACE, DRIVEFACE, DRIVE
-
333303-116 RATCHET, KICK STARTERRATCHET, KICK STARTER
-
343303-334 NUT, FLANGENUT, FLANGE
-
353304-460 PLATE, DUSTPLATE, DUST
-
363303-381 BOLT, FLANGEBOLT, FLANGE
