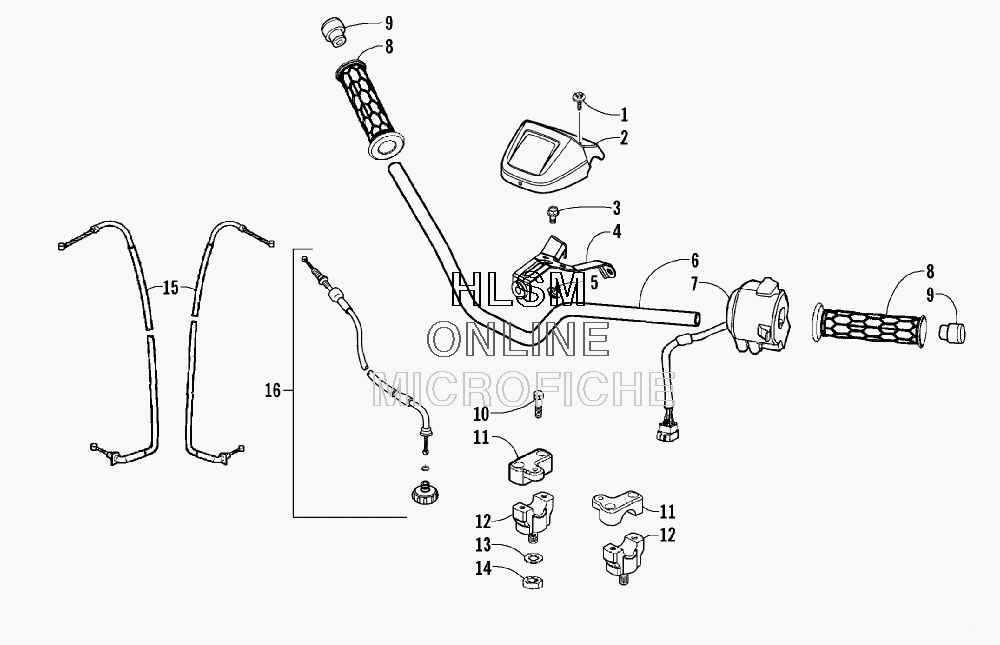

HANDLEBAR AND CONTROL ASSEMBLY для Arctic Cat 90 UTILITY (GREEN) [A2008KUB2BUSG] - 2008 года выпуска
-
№АртикулНазвание
-
13304-029 BOLT W/WASHERBOLT W/WASHER
-
23304-500 INSTRUMENT POD - REDINSTRUMENT POD - RED
-
23304-501 INSTRUMENT POD - GREEN (GREEN)INSTRUMENT POD - GREEN (GREEN)
-
33304-553 BOLT, FLANGEBOLT, FLANGE
-
43304-506 BRACKET, INSTRUMENT PODBRACKET, INSTRUMENT POD
-
53304-552 CLIP, MUD GUARDCLIP, MUD GUARD
-
63303-434 HANDLEBARHANDLEBAR
-
73303-424 SWITCH, HANDLEBAR - ASSEMBLYSWITCH, HANDLEBAR - ASSEMBLY
-
83303-203 GRIP, HANDLEBARGRIP, HANDLEBAR
-
93303-196 END CAP, HANDLEBAREND CAP, HANDLEBAR
-
103303-398 BOLT, SOCKETBOLT, SOCKET
-
113303-197 HOLDER, HANDLEBAR - RIGHTHOLDER, HANDLEBAR - RIGHT
-
113303-198 HOLDER, HANDLEBAR - LEFTHOLDER, HANDLEBAR - LEFT
-
123303-199 HOLDER, HANDLEBAR - LOWERHOLDER, HANDLEBAR - LOWER
-
133305-277 WASHERWASHER
-
143303-325 NUT, HEXNUT, HEX
-
153303-173 CABLE, BRAKE - FRONTCABLE, BRAKE - FRONT
-
161502-096 CABLE, THROTTLE - KITCABLE, THROTTLE - KIT
