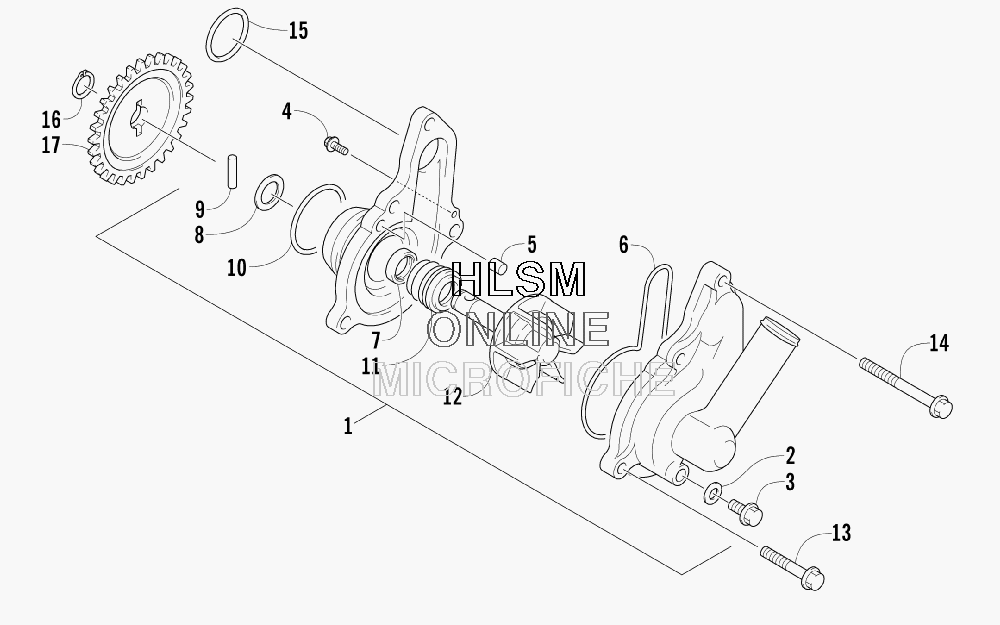

WATER PUMP ASSEMBLY для Arctic Cat DVX 400 (BLACK/CAT GREEN) [A2008DVI2AUSE] - 2008 года выпуска
-
№АртикулНазвание
-
13413-036 PUMP, WATER (INC. 2-12)PUMP, WATER (INC. 2-12)
-
23406-141 ...GASKET...GASKET
-
33423-769 ...BOLT...BOLT
-
43423-770 ...SCREW...SCREW
-
53423-771 ...PIN...PIN
-
63406-142 ...O-RING...O-RING
-
73406-143 ...SEAL, OIL...SEAL, OIL
-
83423-772 ...WASHER...WASHER
-
93423-773 ...PIN...PIN
-
103423-404 ...O-RING...O-RING
-
113005-909 ...SEAL, WATER PUMP SHAFT...SEAL, WATER PUMP SHAFT
-
123413-037 ...IMPELLER/SHAFT...IMPELLER/SHAFT
-
133423-629 BOLT (6X30)BOLT (6X30)
-
143423-630 BOLTBOLT
-
153004-521 O-RINGO-RING
-
163423-184 CIRCLIPCIRCLIP
-
173413-021 GEAR, WATER PUMP DRIVENGEAR, WATER PUMP DRIVEN
