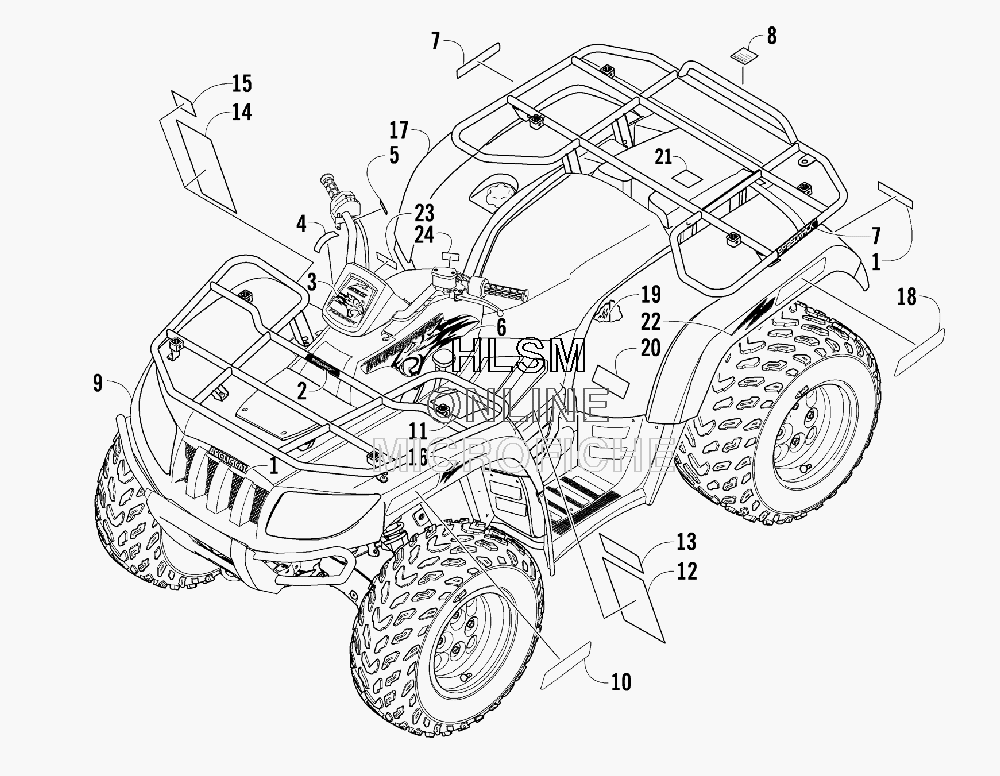

BODY PANELS AND DECALS для Arctic Cat THUNDERCAT (SILVER) [A2008IEW4EUSL] - 2008 года выпуска
-
№АртикулНазвание
-
11411-817 DECAL, GRAPHIC FRONT/REAR (SILVER H2)DECAL, GRAPHIC FRONT/REAR (SILVER H2)
-
21411-050 DECAL, "SPEEDRACK"DECAL, "SPEEDRACK"
-
31411-824 DECAL, INSTRUMENT PODDECAL, INSTRUMENT POD
-
40411-426 DECAL, WARNING - CLUTCH COVERDECAL, WARNING - CLUTCH COVER
-
50411-966 DECAL, WARNING - DIFFERENTIAL LOCKDECAL, WARNING - DIFFERENTIAL LOCK
-
61411-818 DECAL, SIDE - UPPER RIGHT (SILVER H2)DECAL, SIDE - UPPER RIGHT (SILVER H2)
-
61411-819 DECAL, SIDE - UPPER LEFT (SILVER H2)DECAL, SIDE - UPPER LEFT (SILVER H2)
-
70411-965 DECAL, "SPEEDRACK"DECAL, "SPEEDRACK"
-
81411-077 DECAL, WARNING - TOWING (1050 LB)DECAL, WARNING - TOWING (1050 LB)
-
92506-784 PANEL, FENDER - FRONT - (SILVER) (INC. 10-15)PANEL, FENDER - FRONT - (SILVER) (INC. 10-15)
-
100411-818 ...DECAL, REFLECTOR - FRONT - RIGHT...DECAL, REFLECTOR - FRONT - RIGHT
-
100411-819 ...DECAL, REFLECTOR - FRONT - LEFT...DECAL, REFLECTOR - FRONT - LEFT
-
110411-401 ...DECAL, WARNING - AGE (16)...DECAL, WARNING - AGE (16)
-
120411-218 ...DECAL, WARNING - GENERAL...DECAL, WARNING - GENERAL
-
131411-574 ...DECAL, WARNING - OFF-ROAD ONLY...DECAL, WARNING - OFF-ROAD ONLY
-
141411-250 ...DECAL, WARNING - REVERSE/PRE-RIDE...DECAL, WARNING - REVERSE/PRE-RIDE
-
150411-835 ...DECAL, WARNING - TURN/HILL...DECAL, WARNING - TURN/HILL
-
161411-820 DECAL, SIDE FENDER - FRONT - RIGHT (SILVER H2)DECAL, SIDE FENDER - FRONT - RIGHT (SILVER H2)
-
161411-821 DECAL, SIDE FENDER - FRONT - LEFT (SILVER H2)DECAL, SIDE FENDER - FRONT - LEFT (SILVER H2)
-
172506-852 PANEL, FENDER - REAR - (SILVER) (INC. 18-21 AND ONE NO. 1)PANEL, FENDER - REAR - (SILVER) (INC. 18-21 AND ONE NO. 1)
-
181411-592 ...DECAL, REFLECTOR - REAR - RIGHT...DECAL, REFLECTOR - REAR - RIGHT
-
181411-593 ...DECAL, REFLECTOR - REAR - LEFT...DECAL, REFLECTOR - REAR - LEFT
-
190470-658 ...SHIELD, HEAT...SHIELD, HEAT
-
200411-430 ...DECAL, WARNING - TIRE PRESSURE...DECAL, WARNING - TIRE PRESSURE
-
210411-435 ...DECAL, PASSENGER...DECAL, PASSENGER
-
221411-822 DECAL, SIDE FENDER - REAR - RIGHT (SILVER H2)DECAL, SIDE FENDER - REAR - RIGHT (SILVER H2)
-
221411-823 DECAL, SIDE FENDER - REAR - LEFT (SILVER H2)DECAL, SIDE FENDER - REAR - LEFT (SILVER H2)
-
238611-267 DECAL, AIRCAT - CHROMEDECAL, AIRCAT - CHROME
-
241411-865 DECAL, CAUTION - BRAKE LEVER LOCKDECAL, CAUTION - BRAKE LEVER LOCK
