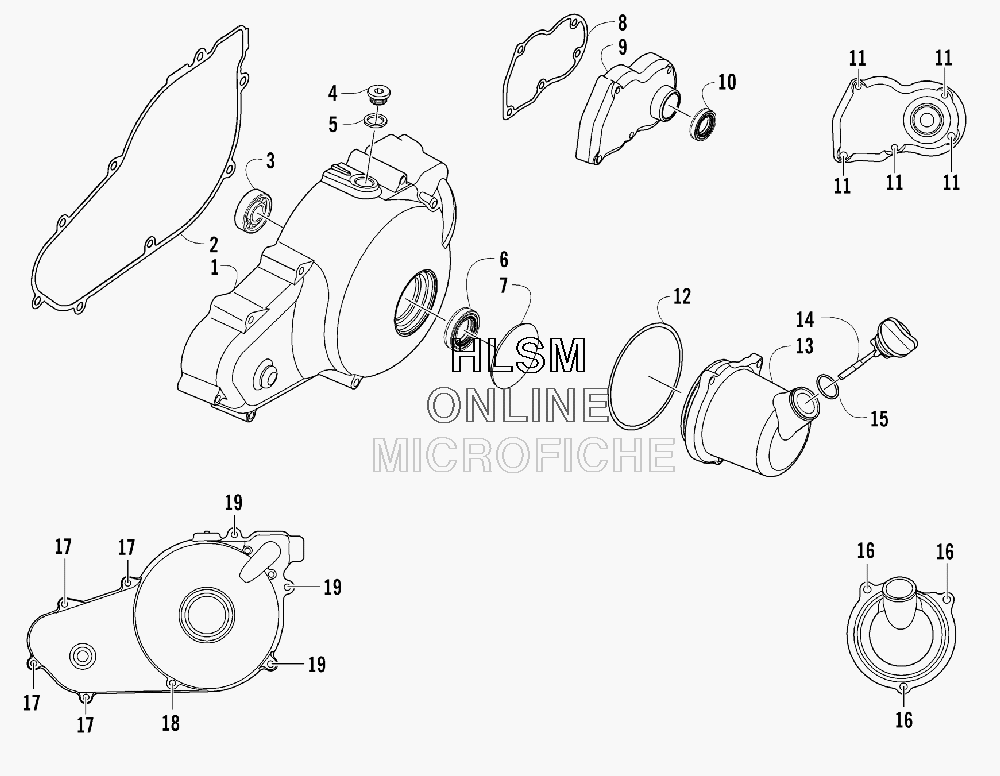

MAGNETO SIDE ENGINE COVERS для Arctic Cat THUNDERCAT (SILVER) [A2008IEW4EUSL] - 2008 года выпуска
-
№АртикулНазвание
-
10806-062 COVER, MAGNETOCOVER, MAGNETO
-
20830-132 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
30832-060 BEARINGBEARING
-
40806-022 PLUG, CHECKPLUG, CHECK
-
50830-015 WASHER, CRUSHWASHER, CRUSH
-
60830-176 SEAL, CAPSEAL, CAP
-
70806-066 CAP, MAGNETO COVERCAP, MAGNETO COVER
-
80830-161 GASKET, GEAR SHIFT COVERGASKET, GEAR SHIFT COVER
-
90818-070 COVER, GEAR SHIFTCOVER, GEAR SHIFT
-
100830-044 SEAL, GEAR SHIFT COVERSEAL, GEAR SHIFT COVER
-
118468-630 SCREW, MACH-TSPNH M6X1.0X30 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X30 CL8.8 BLK
-
120830-162 O-RING, OIL FILLER COVERO-RING, OIL FILLER COVER
-
130801-081 COVER, OIL FILLERCOVER, OIL FILLER
-
140801-073 STICK, OIL LEVEL (INC. 15)STICK, OIL LEVEL (INC. 15)
-
150830-010 ...O-RING...O-RING
-
168468-620 SCREW, MACH-TSPNH M6X1.0X20 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X20 CL8.8 BLK
-
178468-650 SCREW, MACHINESCREW, MACHINE
-
188468-695 SCREW, MACH-TSPNH M6X1.0X95 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X95 CL8.8 BLK
-
198468-665 SCREW, MACH-TSPNH M6X1.0X65 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X65 CL8.8 BLK
