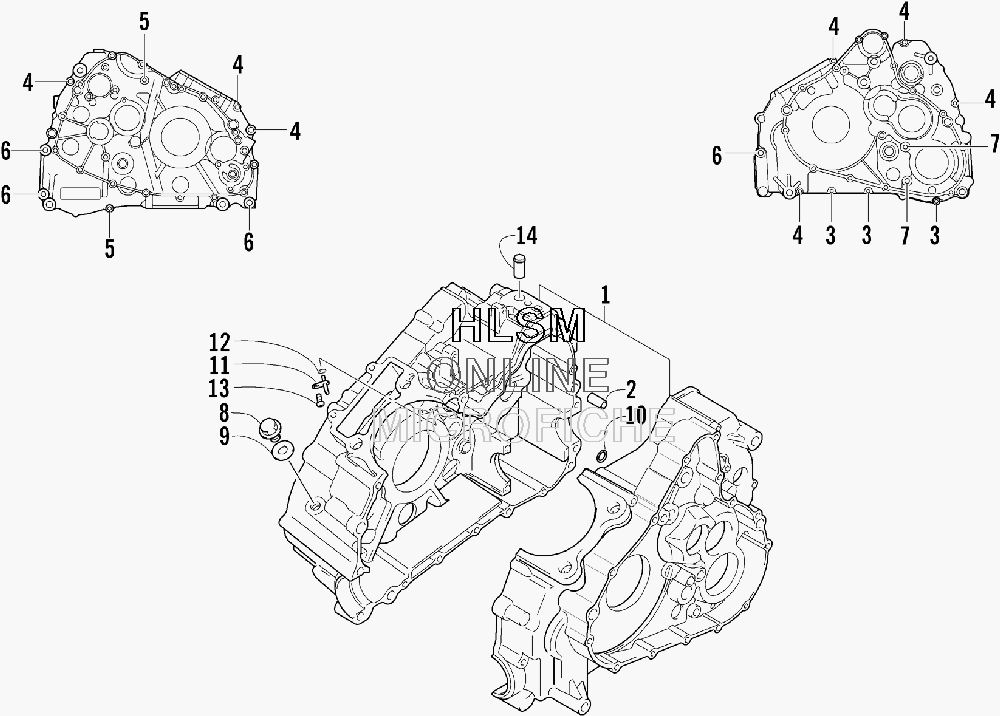

CRANKCASE ASSEMBLY для Arctic Cat 500 MANUAL TRANSMISSION (RED) [A2009IBM4AUSR] - 2009 года выпуска
-
№АртикулНазвание
-
13402-809 CRANKCASE ASSEMBLY (INC. 2-13)CRANKCASE ASSEMBLY (INC. 2-13)
-
23423-088 ...PIN, DOWEL...PIN, DOWEL
-
33423-091 ...BOLT, CRANKCASE-M6X45...BOLT, CRANKCASE-M6X45
-
43423-092 ...BOLT, CRANKCASE-M6X70...BOLT, CRANKCASE-M6X70
-
53423-094 ...BOLT, CRANKCASE-M6X90...BOLT, CRANKCASE-M6X90
-
60693-303 ...BOLT, INLET PIPE...BOLT, INLET PIPE
-
73423-093 ...BOLT, CRANKCASE-M8X85...BOLT, CRANKCASE-M8X85
-
83423-095 ...PLUG, OIL GALLERY...PLUG, OIL GALLERY
-
93402-011 ...GASKET...GASKET
-
103423-052 ...O-RING...O-RING
-
113402-369 ...JET, PISTON COOLING...JET, PISTON COOLING
-
123423-051 ...O-RING...O-RING
-
133423-370 ...SCREW, MACHINE...SCREW, MACHINE
-
143402-389 UNION, BREATHER HOSEUNION, BREATHER HOSE
