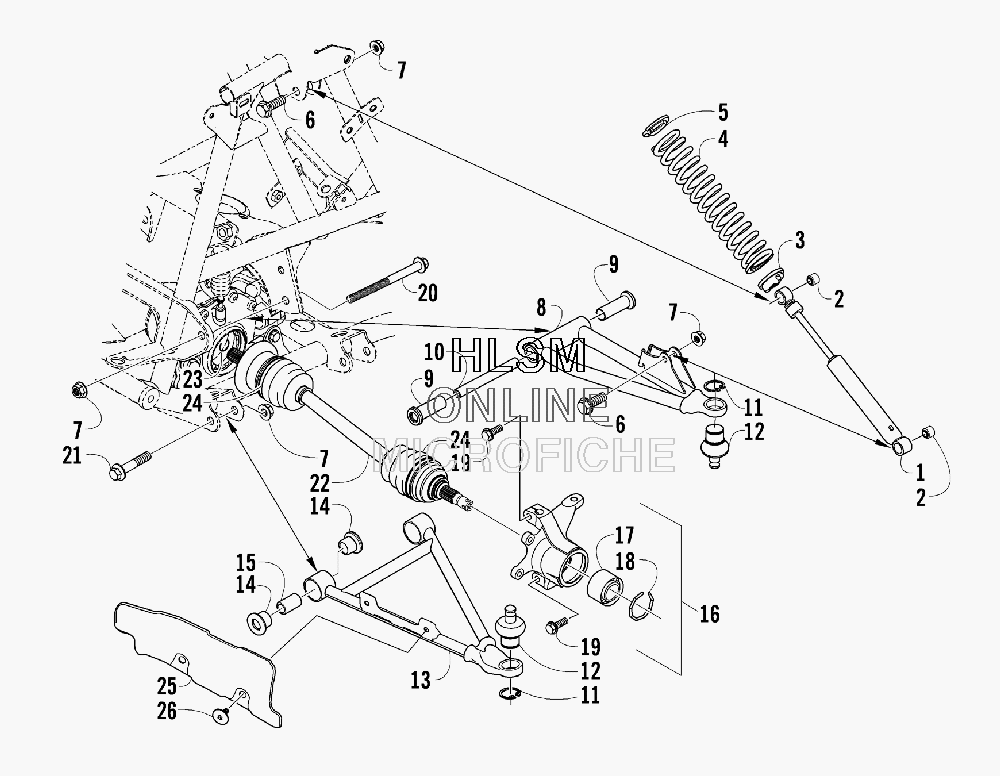

FRONT SUSPENSION ASSEMBLY для Arctic Cat 500 MANUAL TRANSMISSION (RED) [A2009IBM4AUSR] - 2009 года выпуска

№

Артикул

Название
1

0403-180 SHOCK ABSORBER (INC. 2)

SHOCK ABSORBER (INC. 2)

18 920 ₽
2

0403-182 ...BUSHING, DOUBLE-BONDED

...BUSHING, DOUBLE-BONDED

2 280 ₽
3

0403-102 CAM, SPRING ADJUSTER

CAM, SPRING ADJUSTER

3 110 ₽
4

0403-178 SPRING, SHOCK ABSORBER (200LB 12.75") - PLATINUM (RED)

SPRING, SHOCK ABSORBER (200LB 12.75") - PLATINUM (RED)

9 560 ₽
4

0403-177 SPRING, SHOCK ABSORBER (200LB 12.75") - BLACK (GREEN)

SPRING, SHOCK ABSORBER (200LB 12.75") - BLACK (GREEN)

9 560 ₽
5

1603-889 RETAINER, SPRING

RETAINER, SPRING

1 870 ₽
6

8409-040 SCREW, CAP

SCREW, CAP

230 ₽
7

0423-744 NUT, LOCK

NUT, LOCK

210 ₽
8

0503-272 A-ARM, UPPER RIGHT - PLATINUM (INC. 9-12) (RED)

A-ARM, UPPER RIGHT - PLATINUM (INC. 9-12) (RED)

33 900 ₽
8

0503-273 A-ARM, UPPER LEFT - PLATINUM (INC. 9-12) (RED)

A-ARM, UPPER LEFT - PLATINUM (INC. 9-12) (RED)

33 900 ₽
8

0503-196 A-ARM, UPPER RIGHT - BLACK (INC. 9-12) (GREEN)

A-ARM, UPPER RIGHT - BLACK (INC. 9-12) (GREEN)

38 890 ₽
8

0503-197 A-ARM, UPPER LEFT - BLACK (INC. 9-12) (GREEN)

A-ARM, UPPER LEFT - BLACK (INC. 9-12) (GREEN)

38 890 ₽
9

0403-081 ...BUSHING

...BUSHING

630 ₽
10

0403-080 ...COLLAR

...COLLAR

2 700 ₽
11

0423-009 ...RING, RETAINING

...RING, RETAINING

210 ₽
12

0405-115 ...BALL JOINT

...BALL JOINT

5 610 ₽
13

0503-342 A-ARM, LOWER RIGHT - PLATINUM (INC. ONE NO. 11-12 AND 14-15) (RED)

A-ARM, LOWER RIGHT - PLATINUM (INC. ONE NO. 11-12 AND 14-15) (RED)

38 890 ₽
13

0503-343 A-ARM, LOWER LEFT - PLATINUM (INC. ONE NO. 11-12 AND 14-15) (RED)

A-ARM, LOWER LEFT - PLATINUM (INC. ONE NO. 11-12 AND 14-15) (RED)

38 890 ₽
13

0503-334 A-ARM, LOWER RIGHT - BLACK (INC. ONE NO. 11-12 AND 14-15) (GREEN)

A-ARM, LOWER RIGHT - BLACK (INC. ONE NO. 11-12 AND 14-15) (GREEN)

38 890 ₽
13

0503-335 A-ARM, LOWER LEFT - BLACK (INC. ONE NO. 11-12 AND 14-15) (GREEN)

A-ARM, LOWER LEFT - BLACK (INC. ONE NO. 11-12 AND 14-15) (GREEN)

38 890 ₽
14

0403-115 ...BUSHING

...BUSHING

380 ₽
15

0403-114 ...COLLAR

...COLLAR

750 ₽
16

0505-460 KNUCKLE, STEERING - ASSEMBLY - RIGHT FRONT (INC. 17-18)

KNUCKLE, STEERING - ASSEMBLY - RIGHT FRONT (INC. 17-18)

34 310 ₽
16

0505-461 KNUCKLE, STEERING - ASSEMBLY - LEFT FRONT (INC. 17-18)

KNUCKLE, STEERING - ASSEMBLY - LEFT FRONT (INC. 17-18)

35 770 ₽
17

1402-027 ...BEARING

...BEARING

5 610 ₽
18

0423-423 ...RING, RETAINING

...RING, RETAINING

630 ₽
19

8409-030 SCREW, CAP-HFH M10X1.25X30 CL10.9 Z & Y

SCREW, CAP-HFH M10X1.25X30 CL10.9 Z & Y

380 ₽
20

0423-334 SCREW, CAP-HFH M10-1.25 X165 Z & Y CL10.9

SCREW, CAP-HFH M10-1.25 X165 Z & Y CL10.9

860 ₽
21

8409-075 SCREW, CAP-HFH M10X1.25X75 CL10.9 Z & Y

SCREW, CAP-HFH M10X1.25X75 CL10.9 Z & Y

290 ₽
22

1502-344 HALFSHAFT, 565MM-24T - FRONT - RIGHT (INC. 23-24)

HALFSHAFT, 565MM-24T - FRONT - RIGHT (INC. 23-24)

33 480 ₽
22

1502-345 HALFSHAFT, 565MM-24T-LOCKING - FRONT - LEFT (INC. 23-24)

HALFSHAFT, 565MM-24T-LOCKING - FRONT - LEFT (INC. 23-24)

42 010 ₽
23

0423-844 ...CLIP, RETAINING

...CLIP, RETAINING

190 ₽
24

0436-276 ...REPAIR KIT, BOOT - FRONT AXLE

...REPAIR KIT, BOOT - FRONT AXLE

11 020 ₽
25

0441-752 GUARD, BOOT - AXLE - RIGHT (RED)

GUARD, BOOT - AXLE - RIGHT (RED)

5 400 ₽
25

0441-753 GUARD, BOOT - AXLE - LEFT (RED)

GUARD, BOOT - AXLE - LEFT (RED)

5 610 ₽
25

1441-002 GUARD, BOOT - AXLE - RIGHT (GREEN)

GUARD, BOOT - AXLE - RIGHT (GREEN)

3 950 ₽
25

1441-003 GUARD, BOOT - AXLE - LEFT (GREEN)

GUARD, BOOT - AXLE - LEFT (GREEN)

3 950 ₽
26

0423-545 SCREW, BODY

SCREW, BODY

170 ₽
