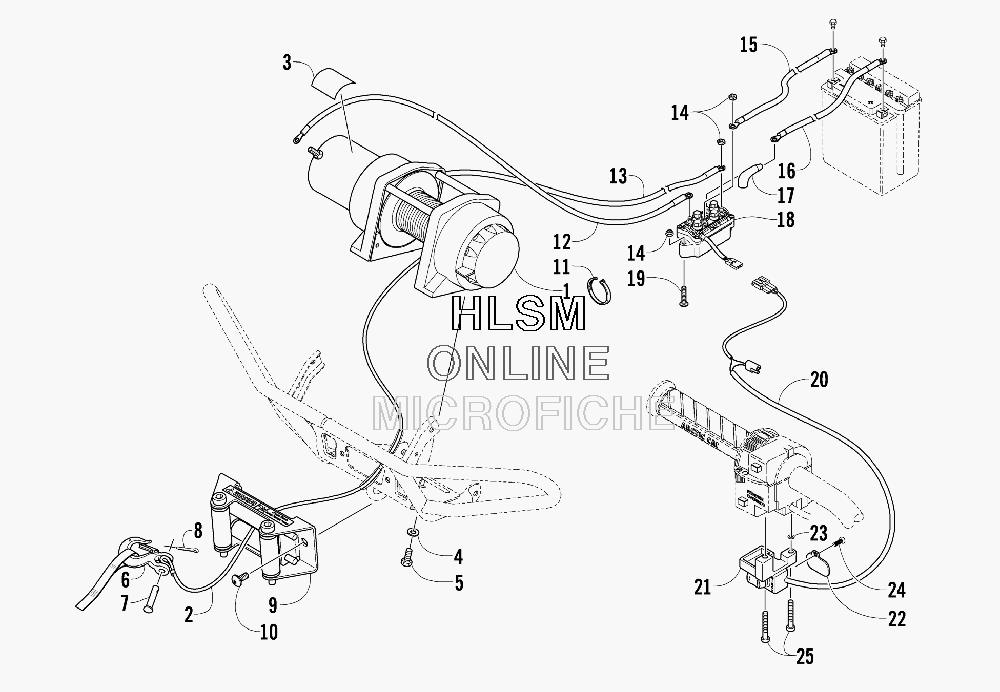

WINCH ASSEMBLY для Arctic Cat 700 MUD PRO (METALLIC CAT GREEN) [A2009IFT4EUSZ] - 2009 года выпуска
-
№АртикулНазвание
-
11441-704 WINCH (INC. 2-3)WINCH (INC. 2-3)
-
20441-061 ...CABLE, WINCH...CABLE, WINCH
-
31411-826 ...DECAL, WARNING...DECAL, WARNING
-
48051-246 WASHER, LOCKWASHER, LOCK
-
58408-820 SCREW, CAPSCREW, CAP
-
60541-760 HOOK, WINCH W/STRAPHOOK, WINCH W/STRAP
-
71441-130 PINPIN
-
81441-129 COTTER PINCOTTER PIN
-
90441-403 ROLLER, WINCHROLLER, WINCH
-
108468-820 SCREW, MACH-TSPNH M8X1.25X20 CL8.8 BLKSCREW, MACH-TSPNH M8X1.25X20 CL8.8 BLK
-
110123-788 CABLE TIE - 8 IN.CABLE TIE - 8 IN.
-
120445-068 CABLE, WINCH/SOLENOID (7" YELLOW)CABLE, WINCH/SOLENOID (7" YELLOW)
-
130445-069 CABLE, WINCH/SOLENOID (10" BLUE)CABLE, WINCH/SOLENOID (10" BLUE)
-
140623-038 NUT W/WASHERNUT W/WASHER
-
151441-112 CABLE, SOLENOID/BATTERY - BLACKCABLE, SOLENOID/BATTERY - BLACK
-
161441-113 CABLE, SOLENOID/BATTERY - REDCABLE, SOLENOID/BATTERY - RED
-
170441-060 BOOT, TERMINALBOOT, TERMINAL
-
180409-066 SOLENOIDSOLENOID
-
198476-625 SCREW, MACHINESCREW, MACHINE
-
200409-087 SWITCH, CONTROLSWITCH, CONTROL
-
210409-034 HOLDER, CONTROL SWITCHHOLDER, CONTROL SWITCH
-
220409-106 COVER, SWITCHCOVER, SWITCH
-
230423-593 WASHERWASHER
-
240423-382 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
258464-560 SCREW, MACH-PHTRH M5-.8X12 Z & BLKSCREW, MACH-PHTRH M5-.8X12 Z & BLK
