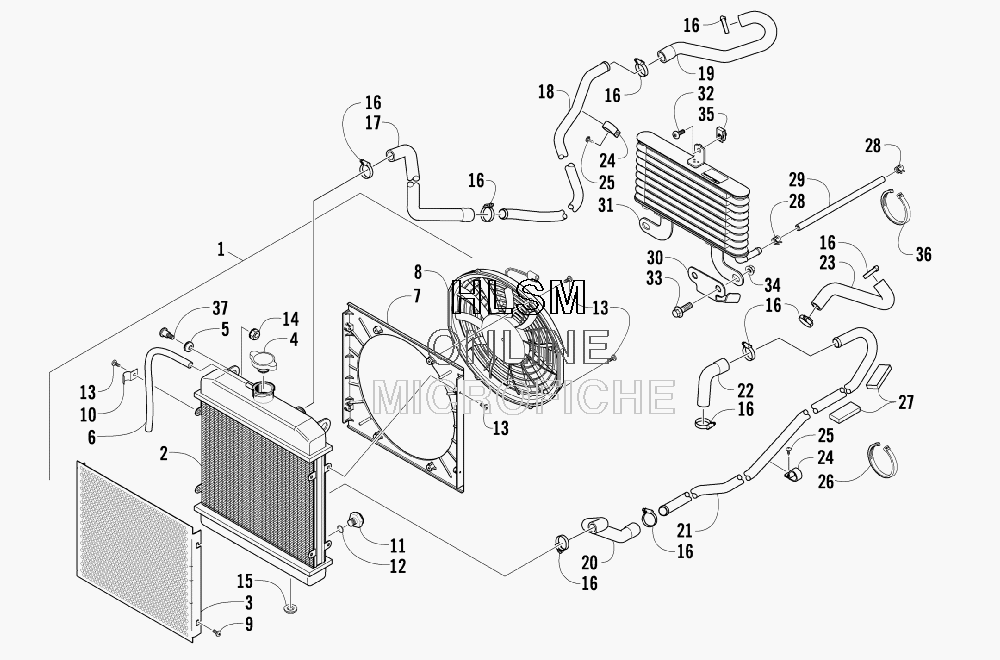

COOLING ASSEMBLY для Arctic Cat PROWELER 700 XT (CAT GREEN) [U2009P2T4EUSZ] - 2009 года выпуска
-
№АртикулНазвание
-
10413-199 RADIATOR - ASSEMBLY (INC. 2-13)RADIATOR - ASSEMBLY (INC. 2-13)
-
20413-205 RADIATORRADIATOR
-
30413-007 SCREEN, RADIATORSCREEN, RADIATOR
-
40413-002 CAP, RADIATORCAP, RADIATOR
-
50423-030 GROMMETGROMMET
-
60610-016 HOSE - 25 FTHOSE - 25 FT
-
60610-015 HOSE - 100 FTHOSE - 100 FT
-
70413-203 SHROUD, FANSHROUD, FAN
-
80413-123 FAN, COOLINGFAN, COOLING
-
98475-512 SCREW, MACHINESCREW, MACHINE
-
100423-351 CLAMP, WIRECLAMP, WIRE
-
110413-195 PLUG, DRAINPLUG, DRAIN
-
121602-213 O-RINGO-RING
-
130623-378 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
140623-038 NUT W/WASHERNUT W/WASHER
-
150423-028 BUSHING, STEMBUSHING, STEM
-
160423-496 CLAMP, HOSECLAMP, HOSE
-
170410-092 HOSE, COOLANT - UPPER RADIATORHOSE, COOLANT - UPPER RADIATOR
-
180410-089 PIPE, COOLANT - UPPERPIPE, COOLANT - UPPER
-
190410-091 HOSE, COOLANT - UPPER ENGINEHOSE, COOLANT - UPPER ENGINE
-
200410-094 HOSE, COOLANT - LOWER RADIATORHOSE, COOLANT - LOWER RADIATOR
-
210410-090 PIPE, COOLANT - LOWERPIPE, COOLANT - LOWER
-
220410-093 HOSE, COOLANT - LOWER ENGINEHOSE, COOLANT - LOWER ENGINE
-
230410-095 HOSE, COOLANT - REARHOSE, COOLANT - REAR
-
240423-594 CLAMP, PIPE - COOLANTCLAMP, PIPE - COOLANT
-
250623-784 SCREW, SELF TAP-TSTRH #10-12X3/4 TP A BLKSCREW, SELF TAP-TSTRH #10-12X3/4 TP A BLK
-
260123-903 CABLE TIE - 11.5 IN.CABLE TIE - 11.5 IN.
-
270406-288 PADPAD
-
280423-632 CLAMP, HOSECLAMP, HOSE
-
290410-165 HOSE, OIL - LOWERHOSE, OIL - LOWER
-
290410-166 HOSE, OIL - UPPERHOSE, OIL - UPPER
-
300513-023 BRACKET, MOUNTING - OIL COOLER - UPPERBRACKET, MOUNTING - OIL COOLER - UPPER
-
310413-211 COOLER, OILCOOLER, OIL
-
328476-620 SCREW, MACHINESCREW, MACHINE
-
338409-020 SCREW, CAPSCREW, CAP
-
348424-002 NUTNUT
-
350423-577 CLIP, U-NUTCLIP, U-NUT
-
360623-751 TIE, CABLE - REUSABLETIE, CABLE - REUSABLE
-
370423-484 BOLT, SHOULDER-9.6X9.55XM6 BLKBOLT, SHOULDER-9.6X9.55XM6 BLK
