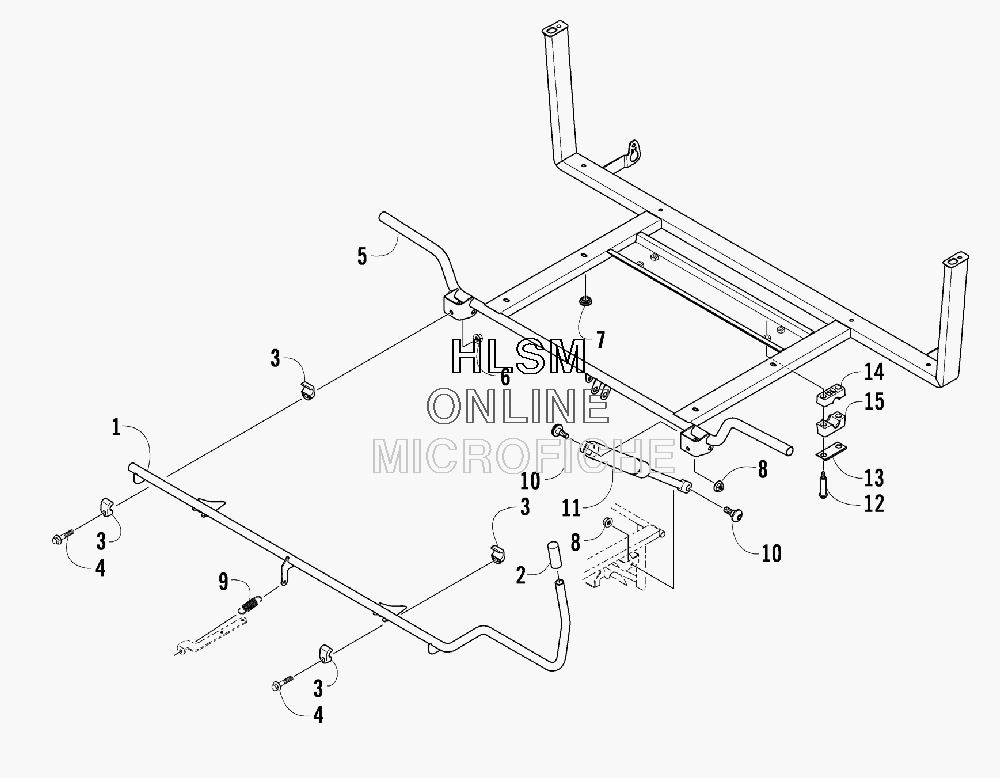

TILT FRAME ASSEMBLY для Arctic Cat PROWELER 700 XT (CAT GREEN) [U2009P2T4EUSZ] - 2009 года выпуска
-
№АртикулНазвание
-
12506-919 ROD, CARGO BOX LATCH-BLACKROD, CARGO BOX LATCH-BLACK
-
21406-736 GRIP, LATCH RODGRIP, LATCH ROD
-
31406-674 BUSHING, PIVOTBUSHING, PIVOT
-
48408-840 SCREW, CAPSCREW, CAP
-
52506-197 FRAME, BOX BLACKFRAME, BOX BLACK
-
68424-802 NUTNUT
-
70423-628 GROMMETGROMMET
-
88427-602 NUT, LOCKNUT, LOCK
-
92416-086 SPRINGSPRING
-
100423-356 SCREW, SHOULDER-M6-1.0 X 22 RIE BLKSCREW, SHOULDER-M6-1.0 X 22 RIE BLK
-
112506-194 SUPPORT, LIFTSUPPORT, LIFT
-
120423-505 SCREW, SHOULDERSCREW, SHOULDER
-
130405-166 CAP, HOUSING-BLACKCAP, HOUSING-BLACK
-
140405-138 HOUSING, LOWERHOUSING, LOWER
-
150405-139 HOUSING, UPPERHOUSING, UPPER
